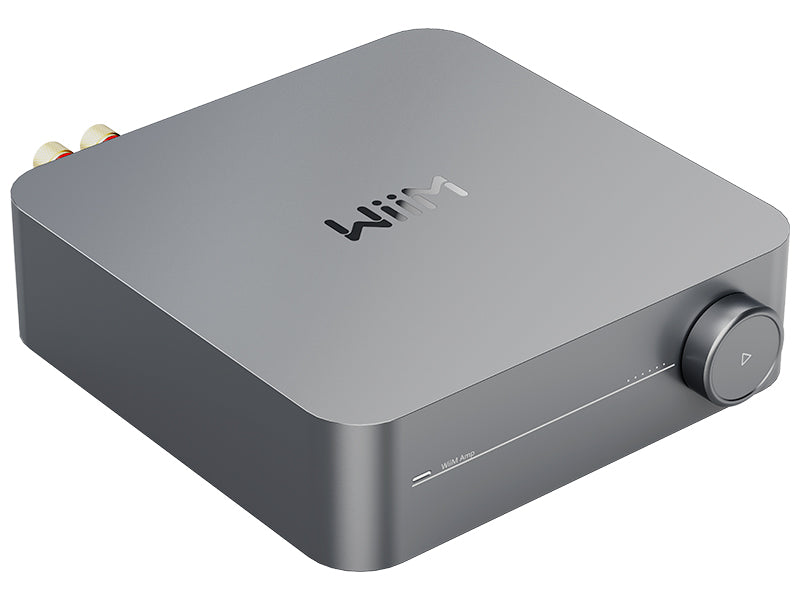

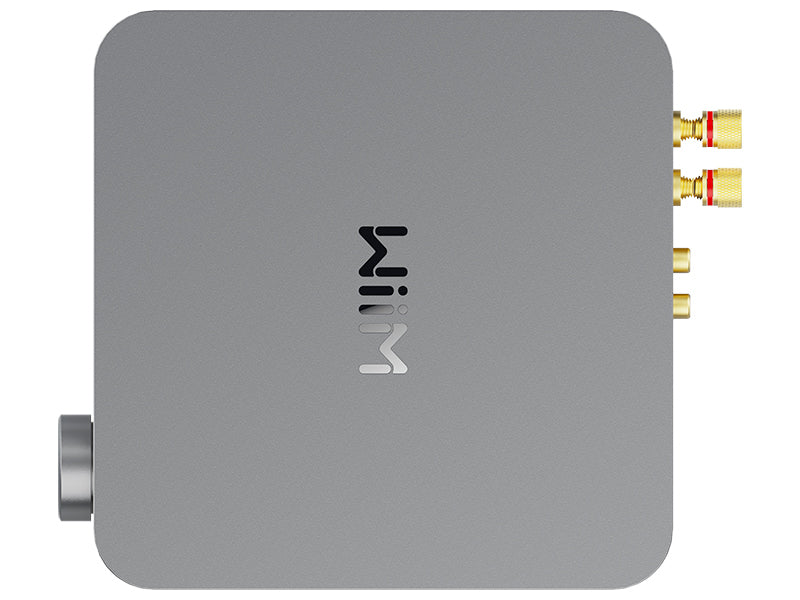

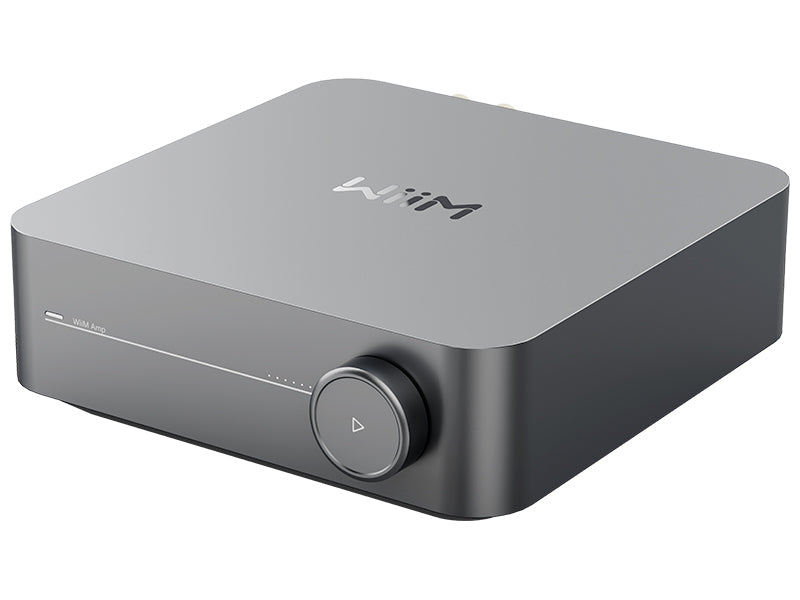

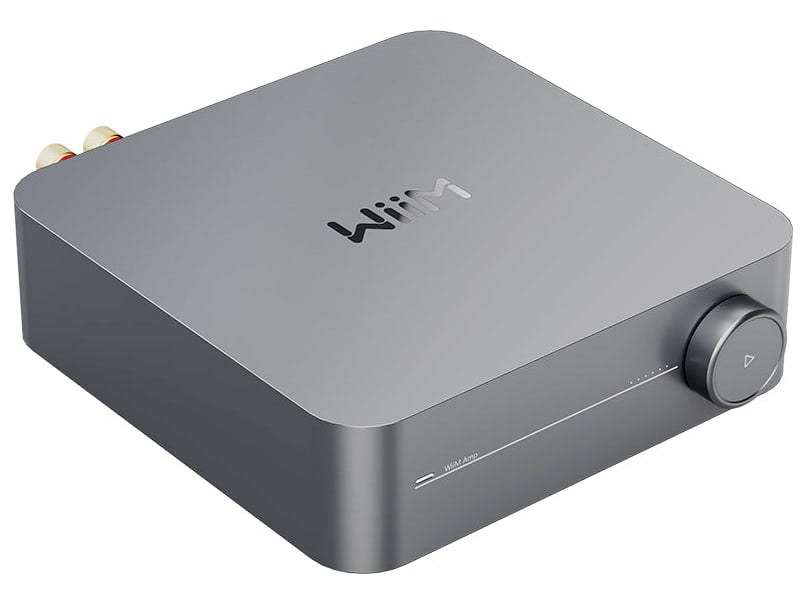

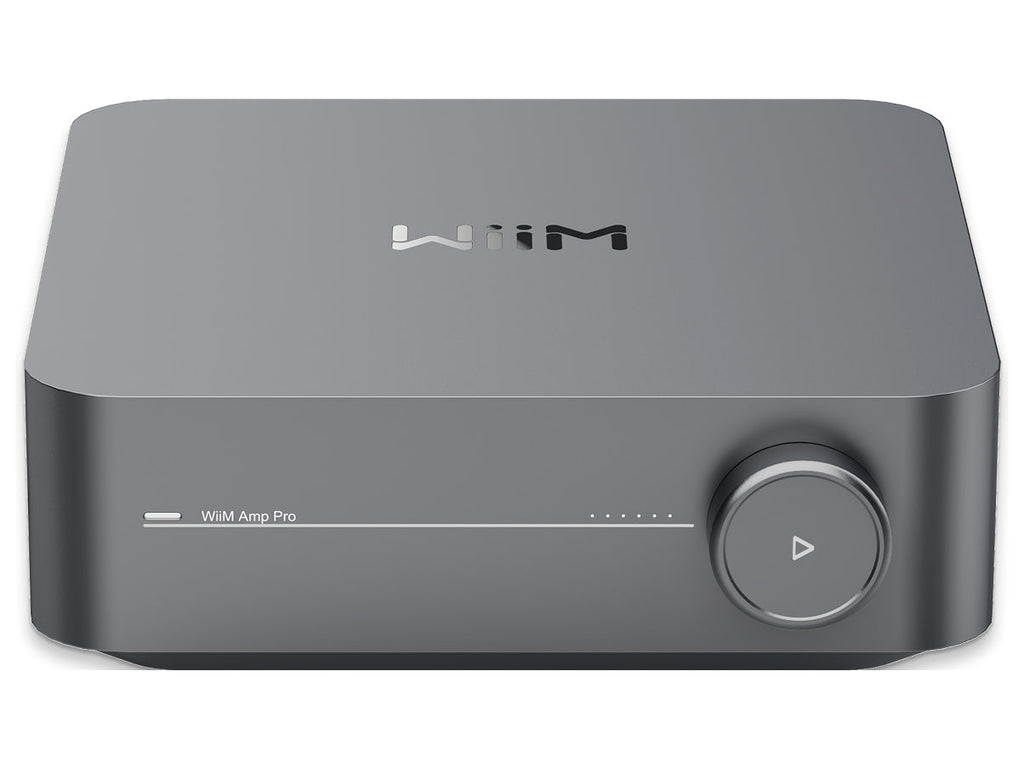

PFFB, ES9038Q2M and Wi-Fi 6: the evolution of WiiM Amp
WiiM Amp Pro keeps 60 W per channel into 8 ohms while upgrading amplification, conversion and wireless networking.
The single WiiM Amp Pro drives passive speakers through a TI TPA3255 and uses PFFB to reduce the effect of speaker load on frequency response. An ESS ES9038Q2M DAC, Bluetooth 5.3 and tri-band networking complete a design that places greater emphasis on audio performance than the standard WiiM Amp.
Key features
- 60 W per channel into 8 ohms and 120 W into 4 ohms
- Class-D amplification with PFFB technology
- ESS ES9038Q2M DAC
- SNR up to 120 dB and THD+N down to -105 dB
- Tri-band Wi-Fi 6, upgradeable to Wi-Fi 6E, and Bluetooth 5.3

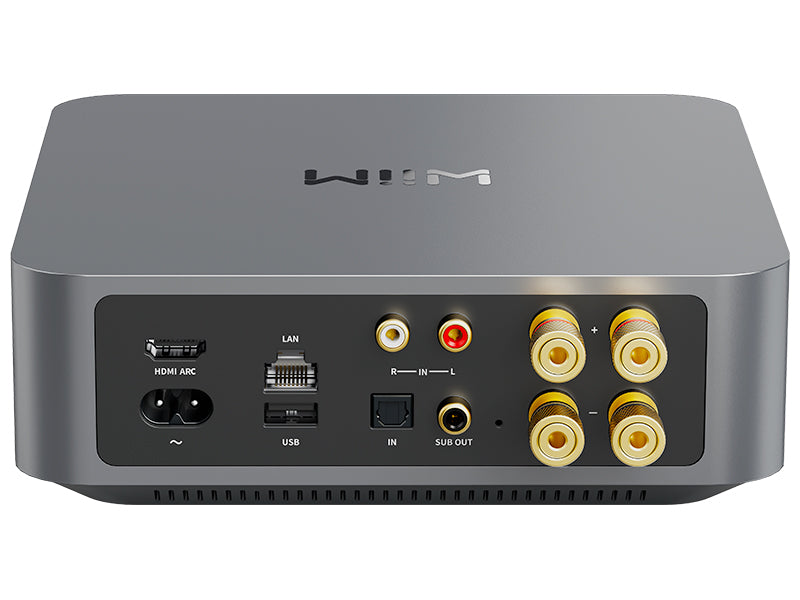

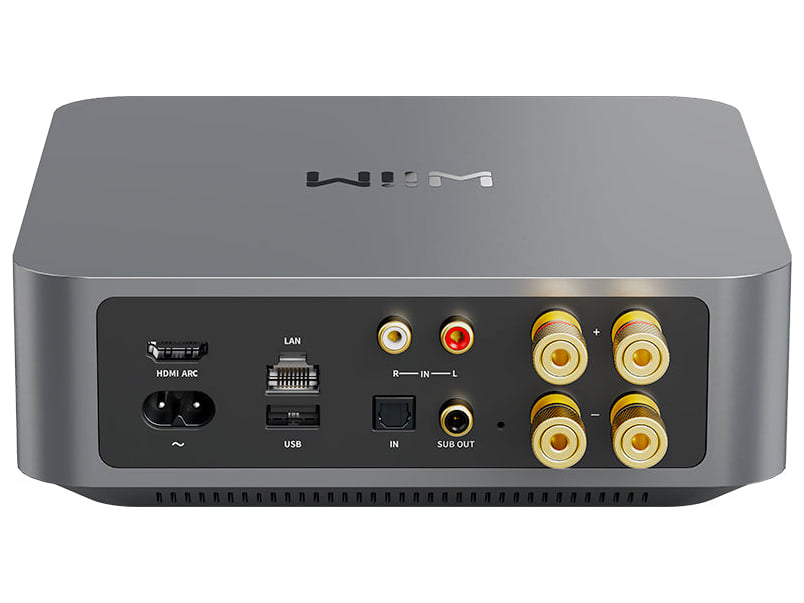

- HDMI ARC, optical, Line In and USB
- Dedicated subwoofer output plus USB Audio Out
- Google Cast and Alexa Cast with Spotify/TIDAL Connect and Roon Ready
Pro does not mean more watts
Rated power is unchanged from WiiM Amp at 60 W/8 ohms and 120 W/4 ohms. The Pro advantage lies instead in its newer wireless platform, upgraded ESS converter and, above all, PFFB; this is a technology and performance upgrade rather than a simple increase in output power.
An important distinction for Apple systems
Amp Pro does not receive AirPlay 2 streams, whereas WiiM Amp does. Users centred on Google Cast, Alexa Cast, Spotify Connect, TIDAL Connect or Roon can focus on the Pro's hardware advantages; an AirPlay 2-based household should take this difference into account before choosing between them.
