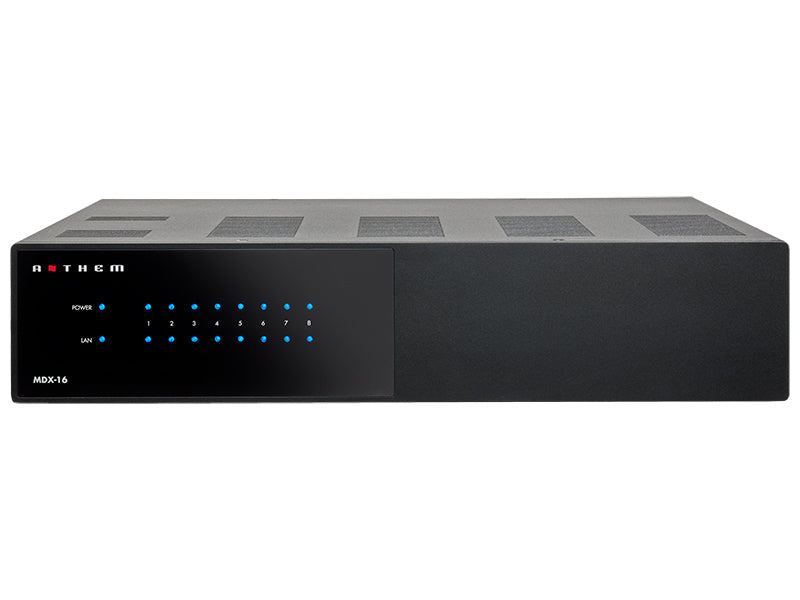

Multi-channel matrix amplifier for multi-room with ARC Genesis room correction. 16 channels of 60W into 8ohm or 120W into 4ohm, or 200W into 8ohm bridged. Ultra-Class-D power stages. Web control interface. Compatible with major automation systems via IP/RS-232. 24bit/192KHz D/A converter. Each zone is separate with dedicated inputs and outputs and sub. Matrix switching of inputs, both digital and analog. Ability to cascade multiple MDXs. Supplied with 2U rack mount accessories.
The new Anthem custom installation products of the MDX series are the first audio distribution systems to be equipped with amplification stages, in/out connections (also for the sub), ARC® Genesis room correction and web control interface, independent for each area.
The MDX series uses the same cutting-edge technology as Anthem amplifiers, to guarantee constant power, reliability and efficiency over time. The MDX series has been designed to simplify the installation of an audio distribution system, and at the same time, astound end customers with breathtaking performances in terms of both sound quality and functions.
- 60 Watts (8 Ohms) / 120 Watts (4 Ohms) with all channels operating, 200 Watts (8 Ohms) in bridged configuration
- 8 or 16 channels with Ultra-Class-D amplifier stage, fast and efficient, are supported by the proprietary Advanced Load Monitoring technology, which guarantees the best performance, even with the most demanding loads
- 24-bit/192kHz digital-to-analog converter (DAC) to maintain input signal integrity at high resolution
- Ability to configure various pre-sets for the DSP
- Bass management for each zone with subwoofer integration in passive (RCA) or active mode (amplified by another bridged zone)
- The bridge mode develops 200 Watts, useful in various applications, for example in the use of a passive subwoofer
- It is possible to connect the digital output to the digital input of another MDX zone
- Pass-through analog connection allows multiple MDX systems to be cascaded
- Speaker binding posts accept wire up to 12 AWG, ideal when speakers are placed at long distances
- Control via IP/RS232 makes the system capable of communicating with the most important home automation systems
- Power on and off via IP/RS232, 12-Volt trigger or audio input sensitivity
- High efficiency circuit design that meets energy saving standards
- Accessories for 2U rack mounting provided

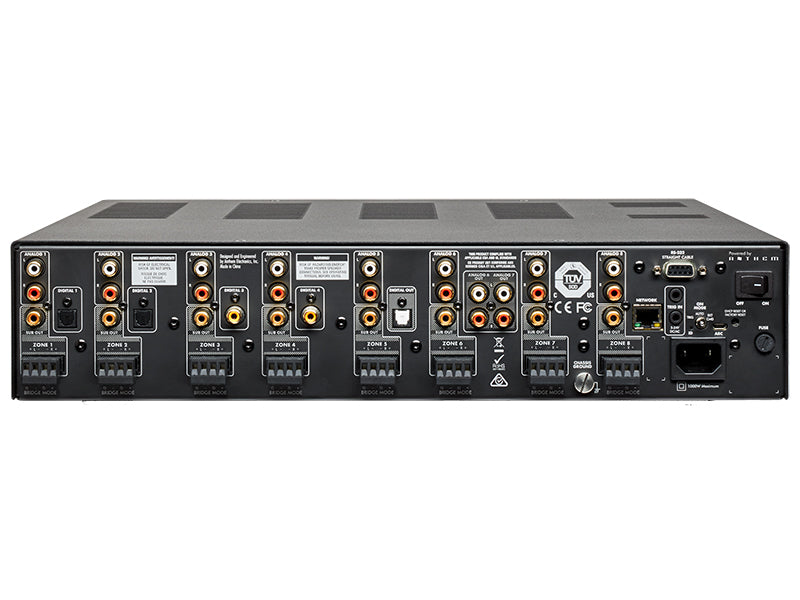

Technical features
- Zones (channels): 8 (16)
- Audio inputs:
8 analog RCA stereos
Digital RCA coaxial 2
Digital optical Toslinks 2
- Audio Outputs:
Sub 8 analog mono RCA
Stereo output 8 speakers
- Watts 8 ohms 60W
- Watts 4 ohms 120W
- Stereo RCA Pass-through 2
- Digital optical Toslink 1
- Control via:
Ethernet (RJ-45) 1
Micro USB 1
Serial (RS-232) 1
3.5mm Trigger Jack (In/Out) 2
- Anthem Room Correction (ARC® Genesis)
- Microphone for ARC
- 2U rack mount
- Dimensions (HxWxD) with feet: 9.9x43.2x41.7cm
- Weight 10.8Kg
