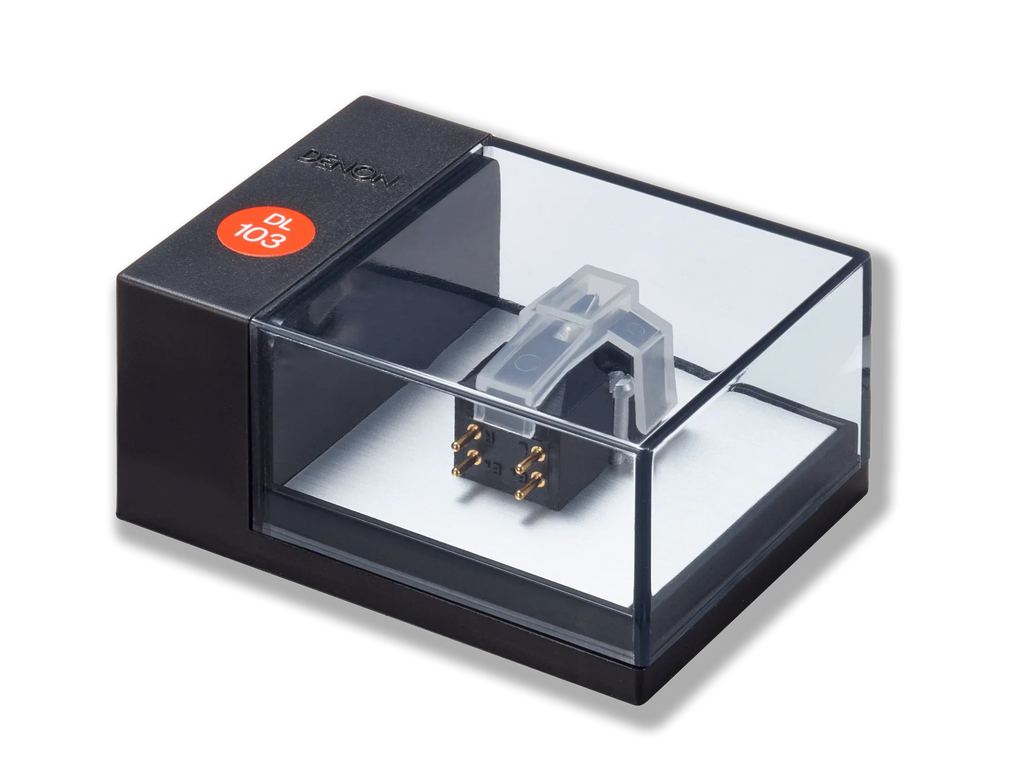

The original Denon moving-coil cartridge configuration

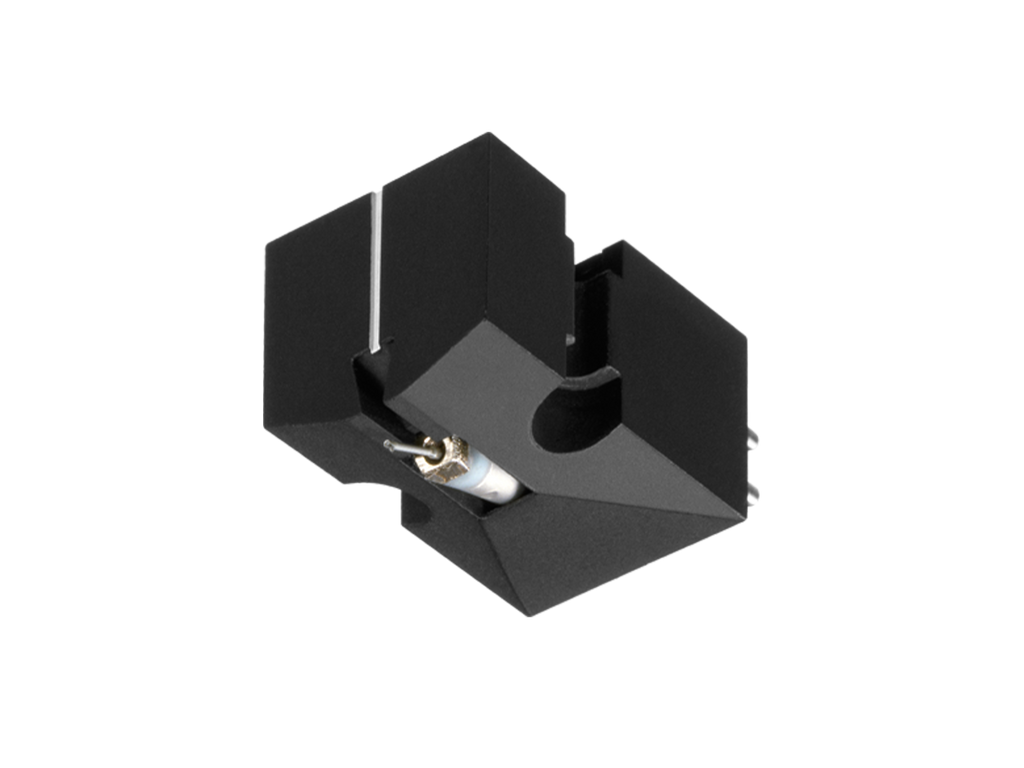

Denon DL-103 is a low-output moving-coil cartridge rated at 0.3mV, with conical stylus, 8.5g body and recommended 2.5g tracking force.
Design and intended use
Developed for professional applications, it prioritises robustness, stability and tracking through a conical stylus. As a cartridge it contains generator, cantilever and stylus but no tonearm; it must be mounted on a compatible headshell and arm. Its low output requires an MC input or step-up transformer rather than a basic MM input alone.
Main features
- Low-output moving-coil generator
- Rated output of 0.3mV
- Conical stylus and low compliance
- 8.5g body mass
- Recommended tracking force of 2.5g
Selection and setup
Ideal matching favours medium-to-high-mass arms and quiet phono stages with sufficient gain. Mounting and alignment determine channel balance and record wear; azimuth, anti-skating and tracking force also require checking. Compared with DL-103R it provides the original recipe, while the R changes the coil winding to higher-purity copper with different electrical parameters.
The cartridge is only the pickup end of the system: results also depend on tonearm effective mass, geometry, gain and phono-stage loading. Alignment, vertical tracking force and anti-skating must be checked with suitable tools after fitting. A worn or dirty stylus compromises tracking and records regardless of generator quality.
