LCR cabinet speaker from the Reference Series for media rooms and theaters

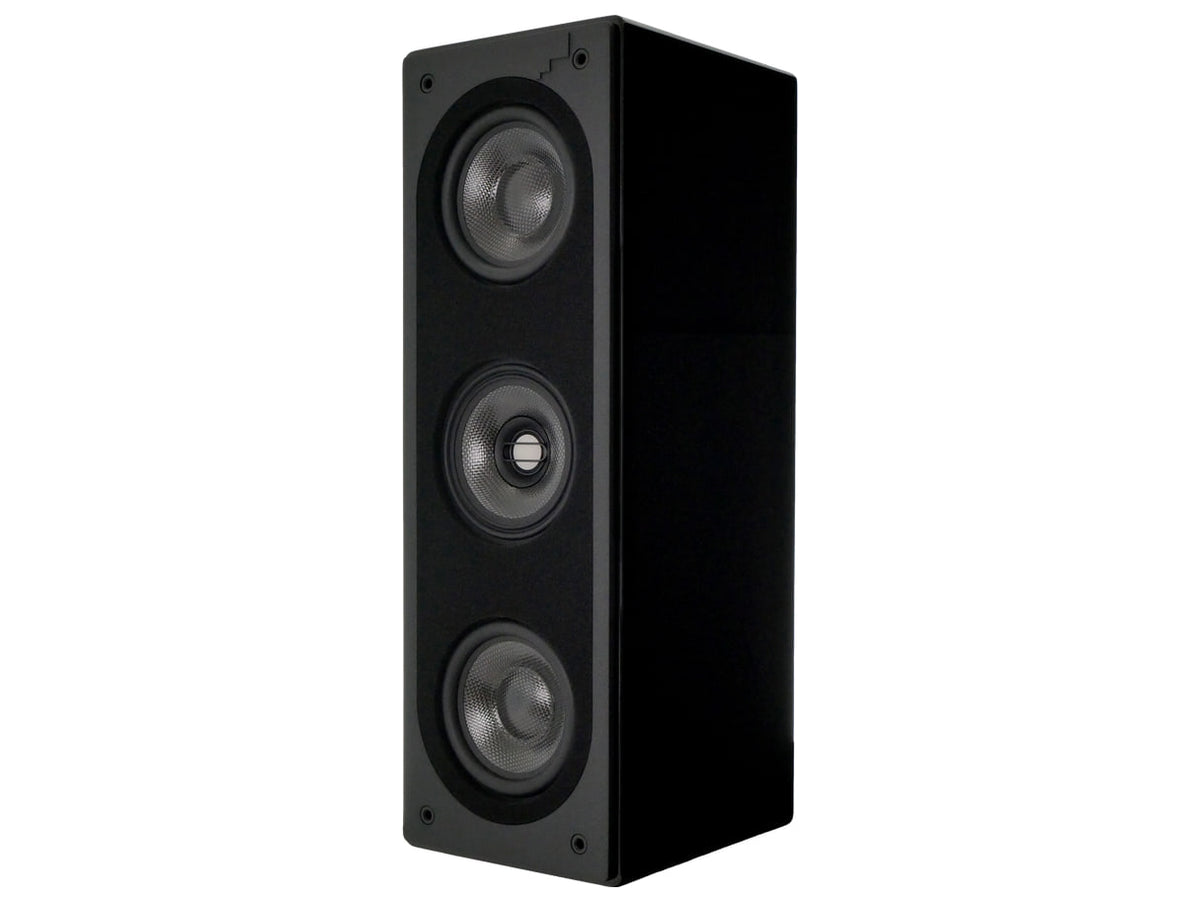

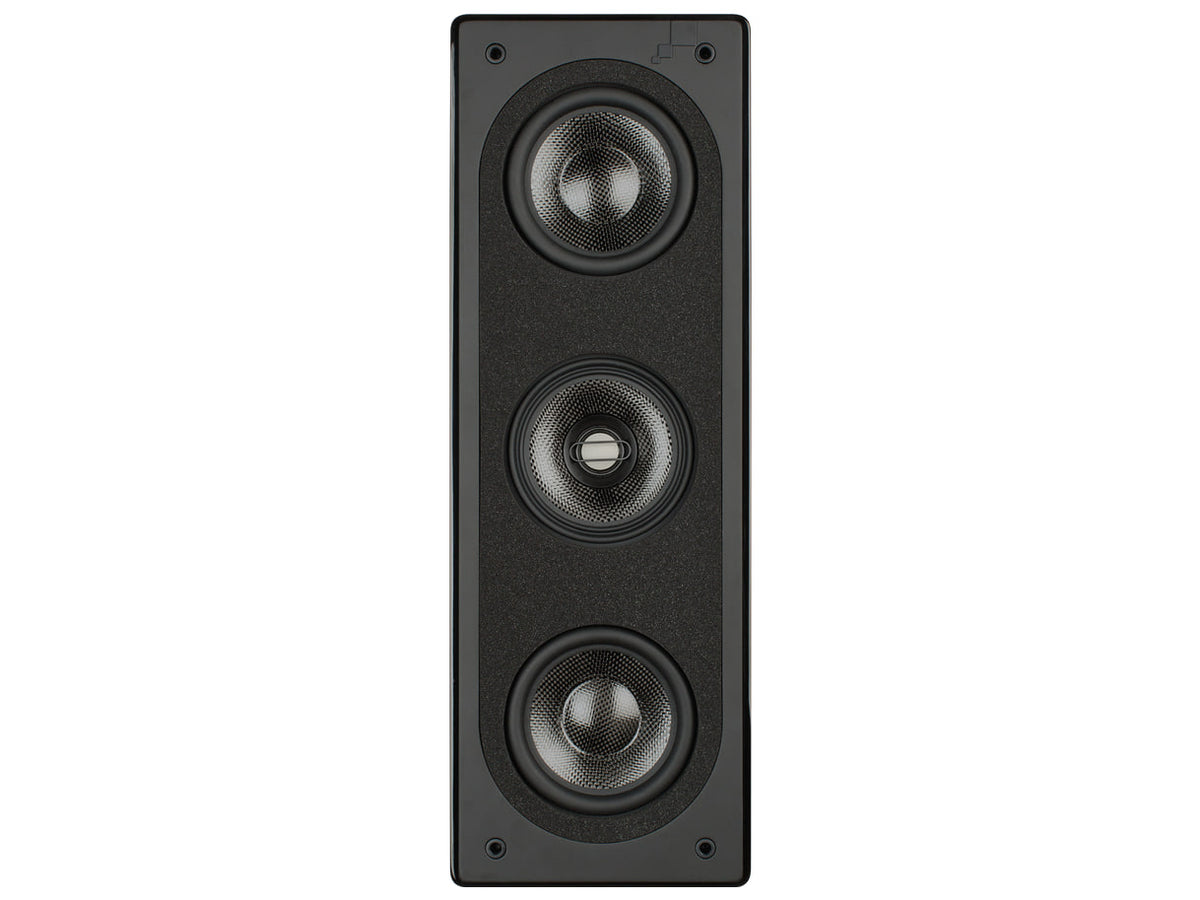

The Sonance R1CAB is the LCR cabinet speaker of the Reference Series: it is meant for the surround audio of media rooms and theaters, with television, films, games and concerts.
It combines fourth-generation coaxial drivers, which bring midrange and tweeter together for precise imaging and clear dialogue, with high-excursion woofers. The built-in enclosure cuts the sound that leaks outwards and lets the speaker be placed in a versatile way.
Key features
- 1" (25 mm) tweeter with a ceramic dome, cooled by ferrofluid and backed by an acoustic rear chamber
- 5.25" (133 mm) midrange whose cone is laminated in carbon fibre and Rohacell, with rubber surround
- 5.25" (133 mm) woofer whose cone is laminated in carbon fibre and Rohacell, with rubber surround
- Frequency response: 70 Hz - 30 kHz (+/- 3 dB)
- Power handling: from 5 to 150 W RMS
- Sensitivity: 90 dB (2.83 V/1 m)
- Separate crossover networks for a precise, detailed sound
Technical data

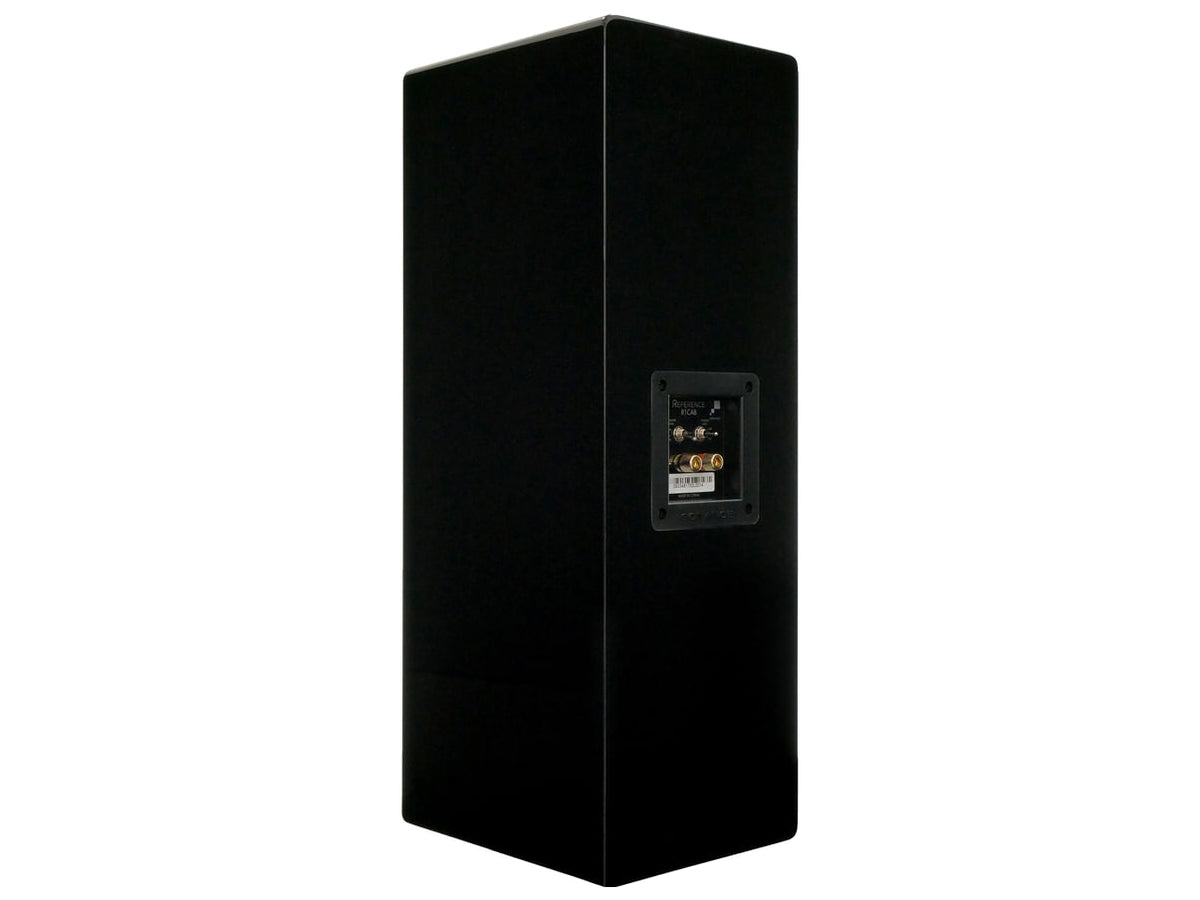

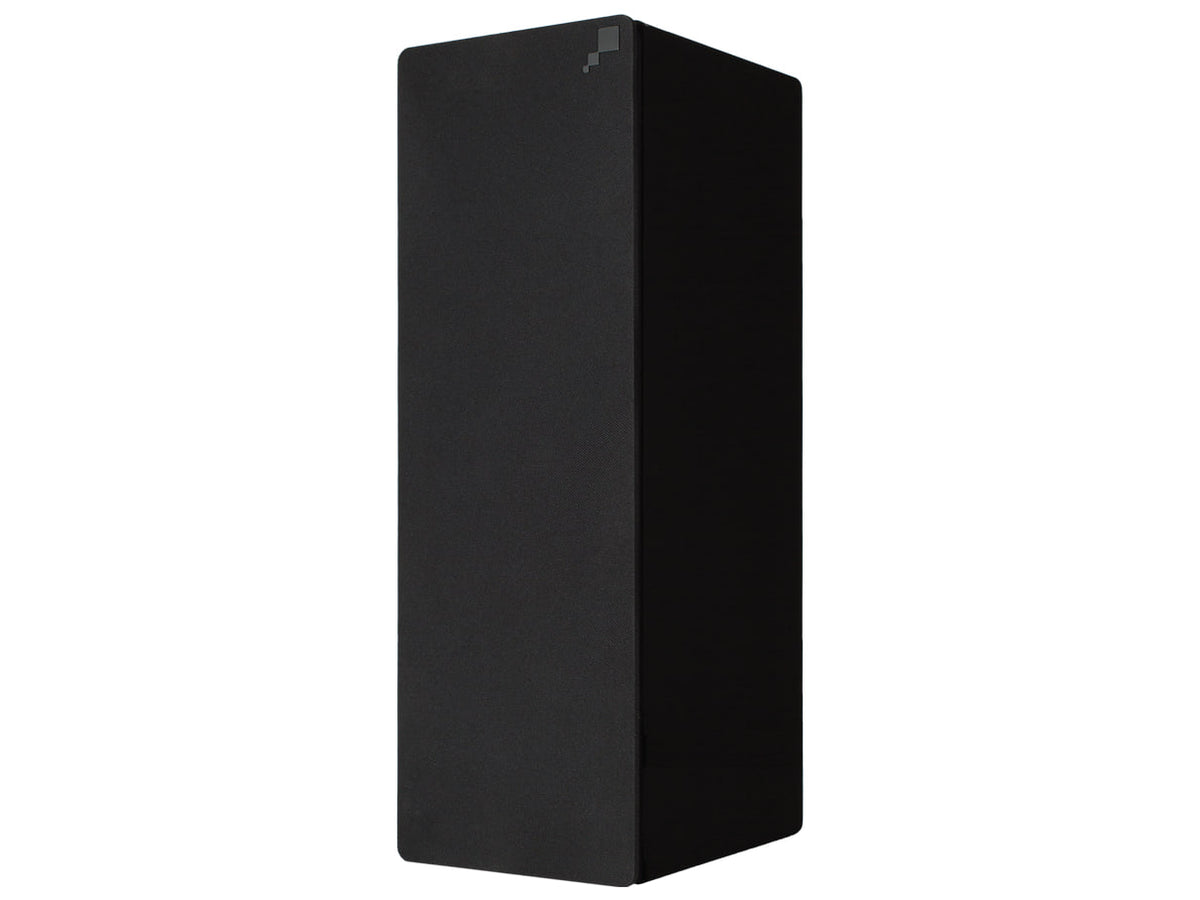

The R1CAB measures 191 x 559 x 235 mm. Unlike the built-in models of the series it is a cabinet speaker, with a housing of its own. The finish is black and the grille is black cloth.
System composition
Models of the Reference Series can be freely combined with one another, so as to get the best sound whatever the layout of the room. Sonance suggests teaming them with its own DSP amplifiers for a result tuned to measure.
