PureLink FlexInstall AOC HDMI 8K 15 m

15 m optical 8K HDMI cable, slim and flexible for clean installations

The PureLink FlexInstall AOC HDMI 8K is a 15 m HDMI 2.1 active optical cable: it carries 48 Gbps from the player or AV receiver to the projector or TV, with 8K at 60 Hz, 4K at 120 Hz, HDR, HDR10, HLG and Dolby Vision, HDCP 2.3 and up to 32 audio channels, with no external power supply. It is a hybrid cable, fibre for data and copper for power, and directional: the connector marked Source goes to the source, the one marked Display to the screen.

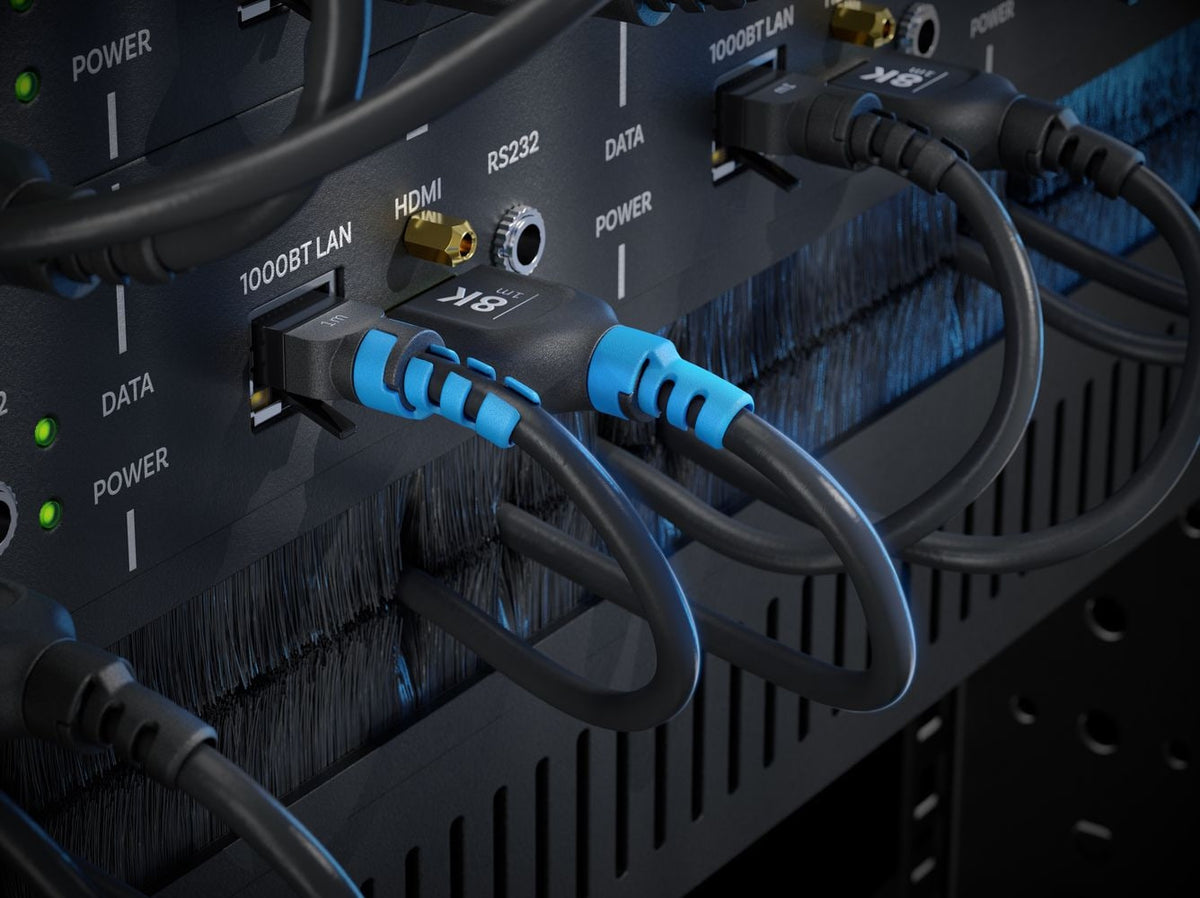

It is made for home cinema systems and installations where the cable runs through conduits, boxes and long paths: 5 mm diameter, 25.75 mm minimum bend radius, smooth soft jacket, triple shielding with a graphene layer, gold-plated HDMI-A connectors with Secure Locking System and a removable blue strain relief, replaceable with ten optional colours to identify cables in a rack. Two strain reliefs and two velcro ties are included. It is not compatible with ARC or eARC: audio return from the TV needs a separate connection.

Technical features

• Standard: HDMI 2.1a, 48 Gbps bandwidth, hybrid fibre-and-copper AOC
• Video: up to 8K 7680 × 4320 at 60 Hz and 4K at 120 Hz, HDR, HDR10, HLG, Dolby Vision, DSC, 16-bit colour
• Audio: up to 32 channels, Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD; ARC and eARC not supported
• Protection: HDCP up to version 2.3, CEC and EDID

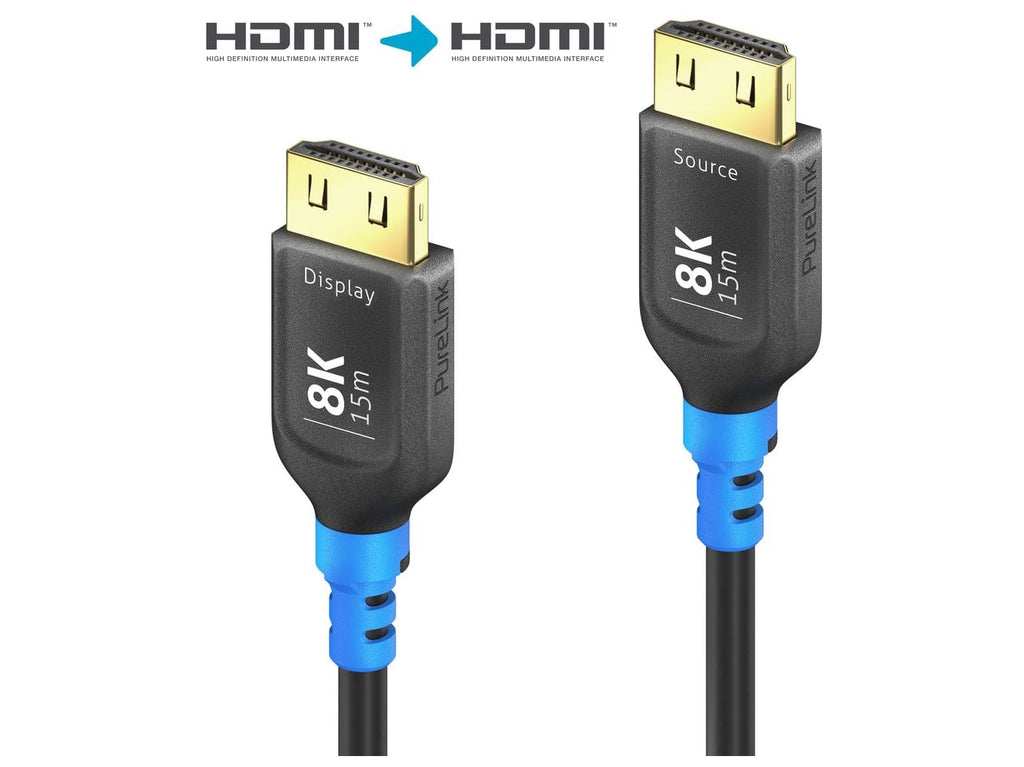

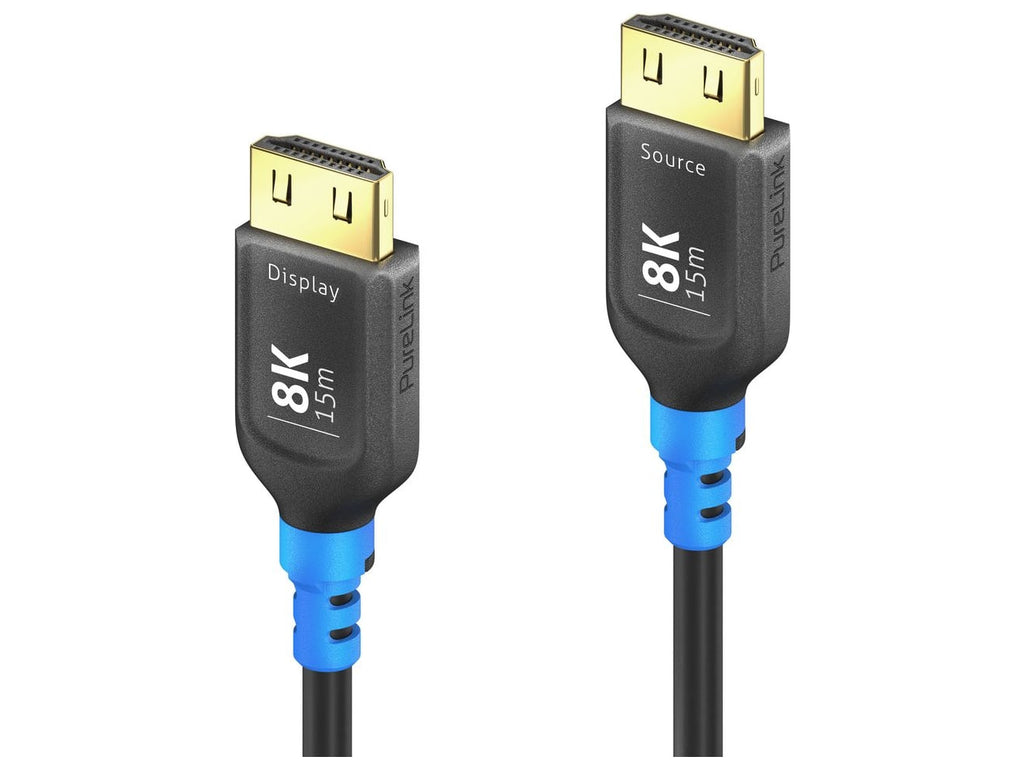

• Connectors: gold-plated HDMI-A male on both ends, Secure Locking System, directional Source → Display
• Cable: 5 mm diameter, 25.75 mm minimum bend radius, UL VW-1 PVC jacket, triple shielding with graphene, aluminium foil and Mylar
• Strain relief: blue, removable, ten optional colours
• Length and weight: 15 m, 480 g; two strain reliefs and two velcro ties included
