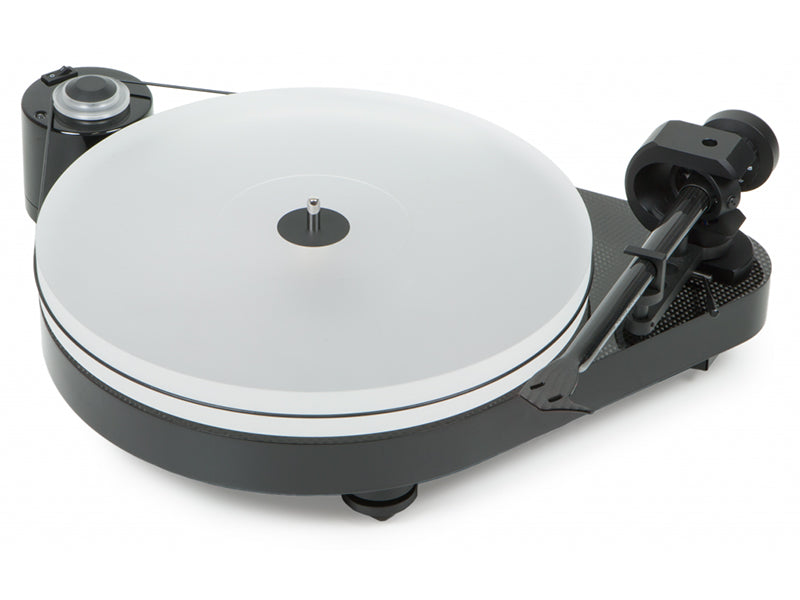

A manual belt-drive turntable with an acrylic platter, a motor separate from the chassis and the 9 inch Evo carbon fibre arm. In this configuration it comes with the Ortofon 2M Bronze cartridge fitted.
RPM 5 Carbon 2M Bronze: how it is built
Much of the RPM 5 Carbon is handed down from the model higher up the range, the RPM 9 Carbon. The low-resonance chassis stands on adjustable aluminium spikes, handy for levelling the deck. The 300 mm platter is acrylic, an acoustically inert material, and turns on an inverted bearing with a stainless steel axle and ceramic ball, designed to cut mechanical noise.
The synchronous motor lives in an independent unit placed alongside the chassis. It runs on 15 V AC, with the voltage coming from a precision generator fed by a DC supply, an arrangement that makes speed more stable. Switching between 33 and 45 rpm is done by hand.
The 9 inch Evo arm has a carbon fibre tube and an effective mass of only 8 g; it accepts good MM and MC cartridges, and its TPE-damped counterweight keeps resonance in check. Here the cartridge is the Ortofon 2M Bronze, already installed. Also supplied are the Connect it E phono lead, shielded and low in capacitance, a clamp to hold the record down and a 45 rpm adapter. The lid is a separate accessory.
Specifications
- Speeds: 33 and 45 rpm, switched by hand
- Drive: belt, independent synchronous motor unit
- Platter: acrylic, 300 mm in diameter
- Bearing: inverted, stainless axle and ceramic ball
- Speed drift: ±0.12 % at 33 rpm, ±0.10 % at 45 rpm
- Wow & flutter: ±0.17 % at 33 rpm, ±0.08 % at 45 rpm
- Signal-to-noise ratio: 73 dB
- Tonearm: 9 inch Evo, carbon fibre tube, TPE-damped counterweight
- Arm effective length: 230 mm
- Arm effective mass: 8 g
- Stylus overhang: 18 mm
- Tracking force: 25 mN maximum
- Cartridge supplied: Ortofon 2M Bronze, factory fitted
- Feet: adjustable aluminium spikes
- In the box: Connect it E phono lead, record clamp, 45 rpm adapter; lid optional
- Power: 15 V DC / 500 mA supply, mains 110/240 V at 50 or 60 Hz
- Consumption: up to 5 W, under 0.5 W on standby
- Size and weight: 430 x 150 x 323 mm (width, height, depth), 8.0 kg net

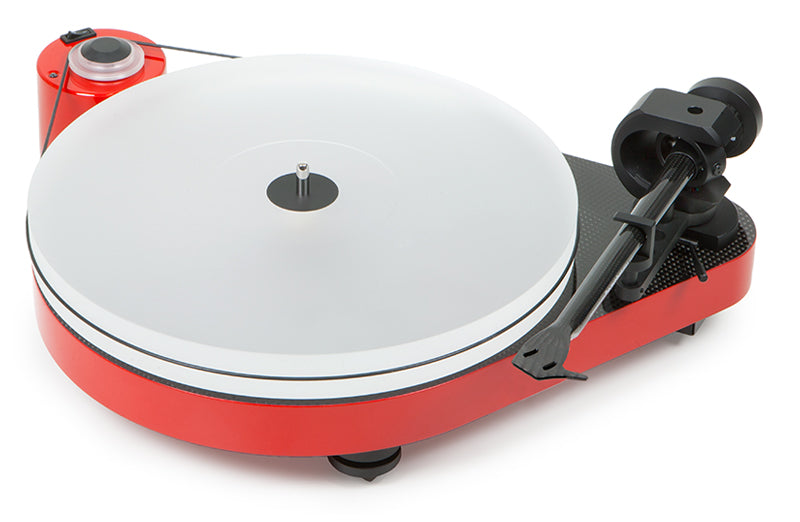

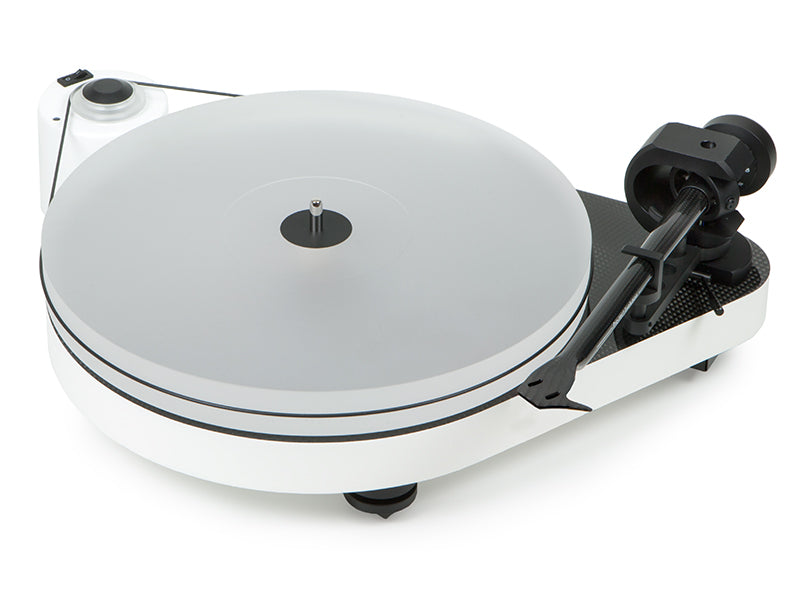

- Finishes: black, red, white
