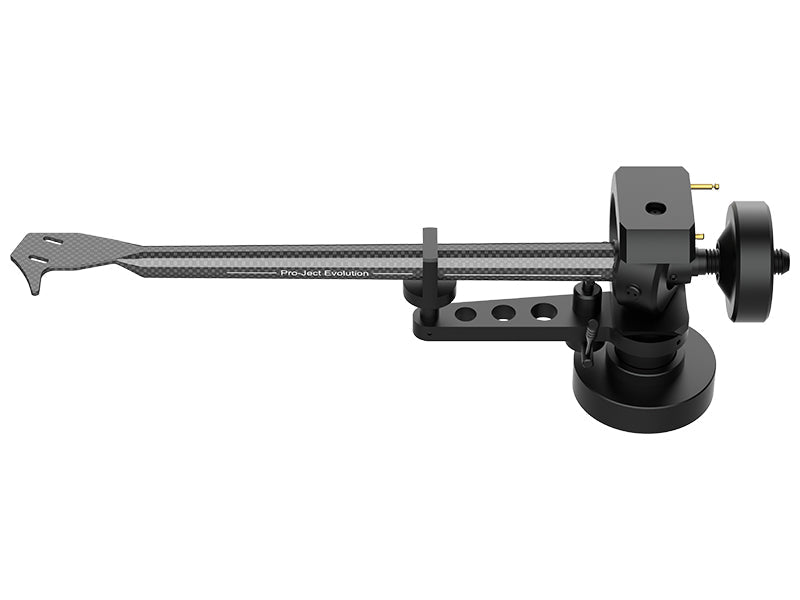

A straight 10-inch tonearm with a hybrid carbon and aluminium tube, Swiss ABEC 7 bearings in a stainless steel block and silver wiring, in the Black matt black finish. For cartridges of 5 to 18 g on high-end turntables.
EVO 10 CA Premium Black: inside the arm
The EVO 10 CA Premium Black is the middle size in the series: effective length is 254 mm and the mounting distance 238 mm, a figure to check against the plinth of the turntable it is intended for. The offset angle comes down to 21.4° and the overhang to 16 mm; the null points fall at 126.8 and 248.2 mm. With 16.6 g of effective mass the arm works with cartridges weighing 5 to 18 g and a tracking force of up to 3 g. The Black version has a matt black finish on every part.
The bearing is an inverted cardanic design with specially selected Swiss bearings of ABEC 7 grade and four stainless steel tips. Stable and very low in friction, it lets the stylus follow the groove without losing fine detail. The bearings sit inside a heavy block of stainless steel and the inner ring is a solid, massive part, while the outer ring is left open so that it cannot ring like a bell. The armtube is a hybrid: a one-piece carbon-fibre outer tube, light yet rigid, with a hidden aluminium tube inside it to damp vibration. Its conical profile, narrowing towards the cartridge end, stops standing waves from building up.
Set-up options are complete. Held by a single screw, the armtube rotates to correct azimuth; slackening two grub screws lets the arm move up or down steplessly until the VTA is right, and the silicone-damped lift can be matched to the chosen height. The TPE-damped counterweight is a new design, the internal wiring is high-purity silver, and the signal leaves through a gold-plated five-pin DIN socket. The parts are CNC-machined to high precision, the arm rest included, and the arm is made in Europe.
Specifications
- Effective length: 254 mm (10-inch)
- Mounting distance: 238 mm
- Offset angle: 21.4°
- Overhang: 16 mm
- Effective mass: 16.6 g
- Cartridge weight: 5 to 18 g
- Tracking force: adjustable from 0 to 3 g
- Null points: 126.8 mm and 248.2 mm
- Headshell slot spacing: 12.7 mm
- Arm weight: 512 g excluding the flange
- Armtube: conical, carbon outside with aluminium inside
- Bearing: inverted cardanic, Swiss ABEC 7, four stainless steel tips
- Bearing block: heavy stainless steel
- Internal wiring: high-purity silver
- Counterweight: TPE-damped
- Adjustments: azimuth and VTA
- Output: gold-plated five-pin DIN socket
- Finish: Black, matt black
