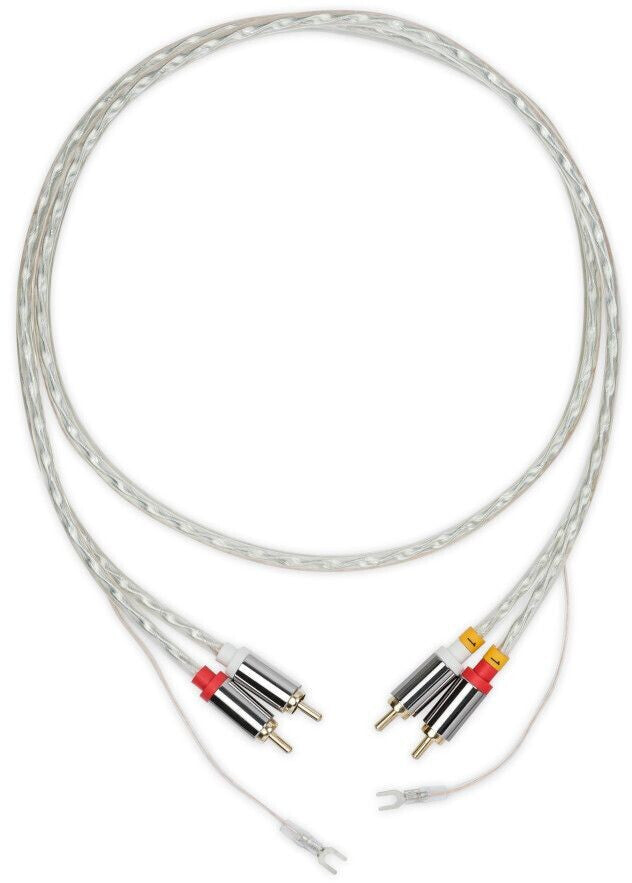

Phono E RCA is the stereo phono cable in Connect it E, Pro-Ject's most affordable series: gold-plated RCA plugs at both ends and a ground wire, for connecting a turntable to a phono stage.
Phono E RCA: how to connect it

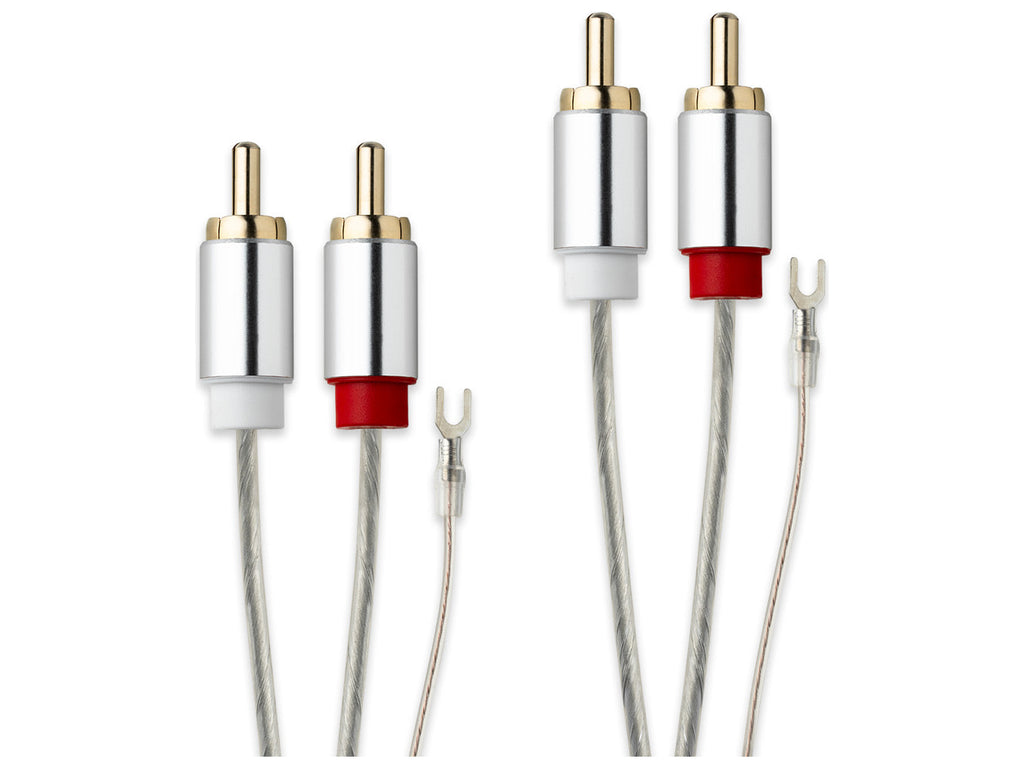

With the E series Pro-Ject set out to make a neutral-sounding cable at a modest cost, spending where the materials matter. The conductor is 99.99% OFC copper in two 0.2 mm² wires, insulated in polyethylene; the screen is tinned copper and the outer covering is transparent PVC. Capacitance is 130 pF over 1.23 m. The RCA plugs are gold-plated brass, so that contact quality holds up over time.

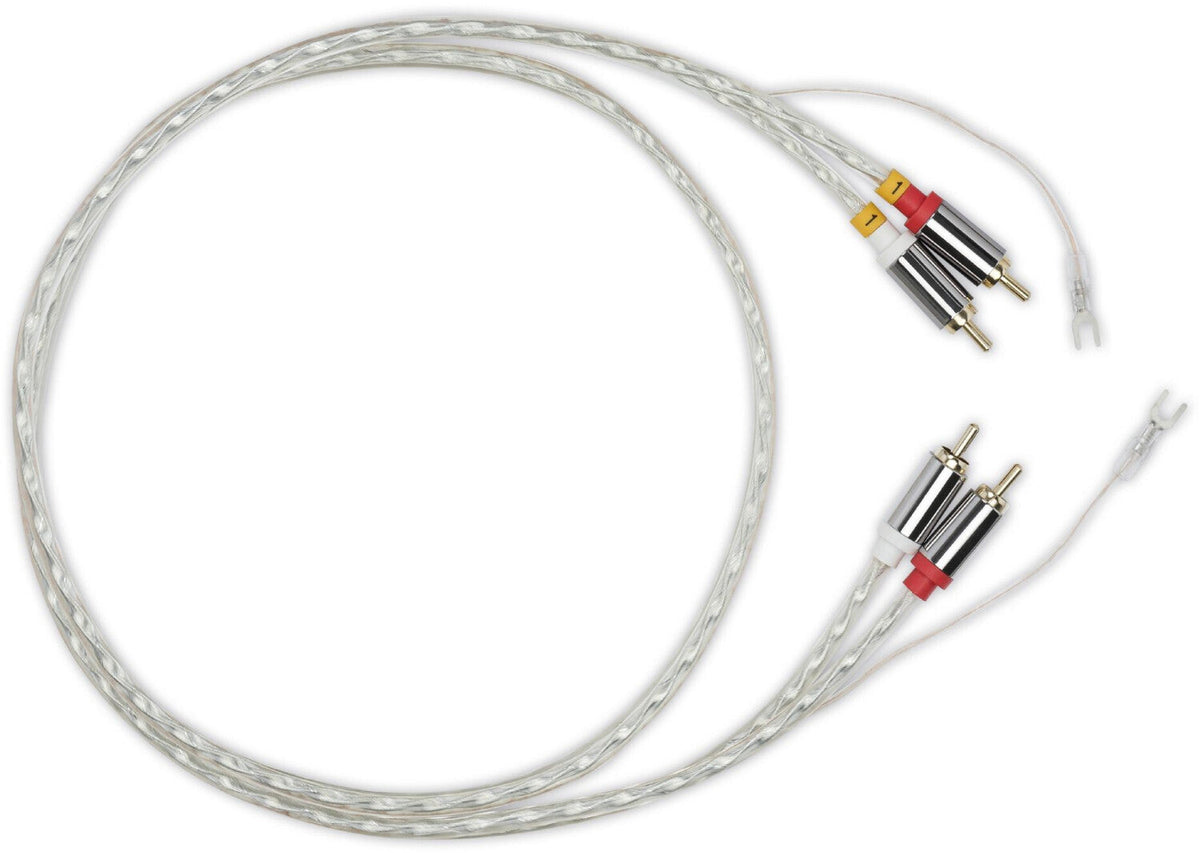

It is a semi-symmetrical cable: the screen is tied to one end only, so direction matters. The end with the yellow marking always goes to the component receiving the signal, meaning the phono stage or the amplifier's phono input. The Italian distributor also specifies a ground wire, to be fixed to the earth terminals of turntable and electronics.
Specifications
- Type: stereo phono cable with ground wire
- Connectors: gold-plated brass RCA at each end
- Conductors: OFC copper of 99.99% purity, 2 x 0.2 mm²
- Capacitance: 130 pF over 1.23 m
- Dielectric: polyethylene
- Screen: tinned copper, tied at one end only
- Outer jacket: clear PVC
- Direction: yellow-marked end towards the phono stage
