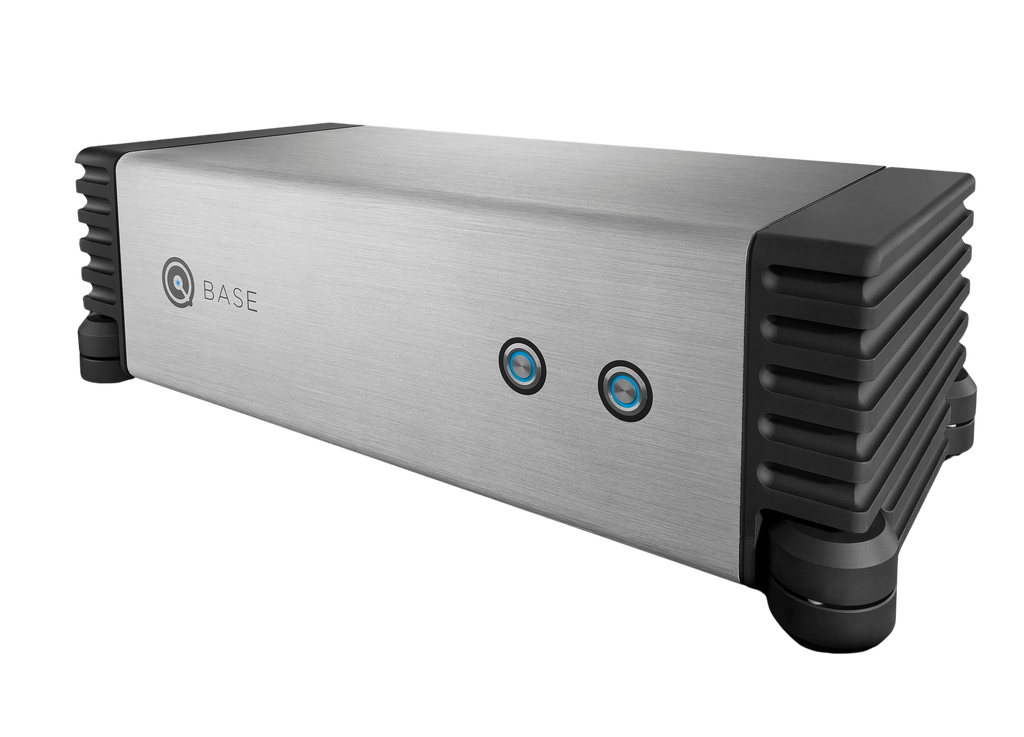

Nordost QBASE QB10 Reference

Nordost QBASE QB10 Reference: 10-outlet distributor

The QBASE QB10 Reference is a reference-level mains distribution unit with 10 outlets, offered as a filter-free alternative to conditioners: it feeds the electronics without limiting current and without adding a sonic character of its own. It gathers several technologies of the QRT line in one unit.

Like the other QBASE models it is a passive distributor with star-earth topology: it separates the grounds of the connected equipment and sends eddy currents and stray voltages to a single central ground point. Inside the mechanically tuned extruded aluminium chassis there are several QSINE and QWAVE modules, an optimized version of QPOINT technology and Sort supports for resonance control.

Technical features

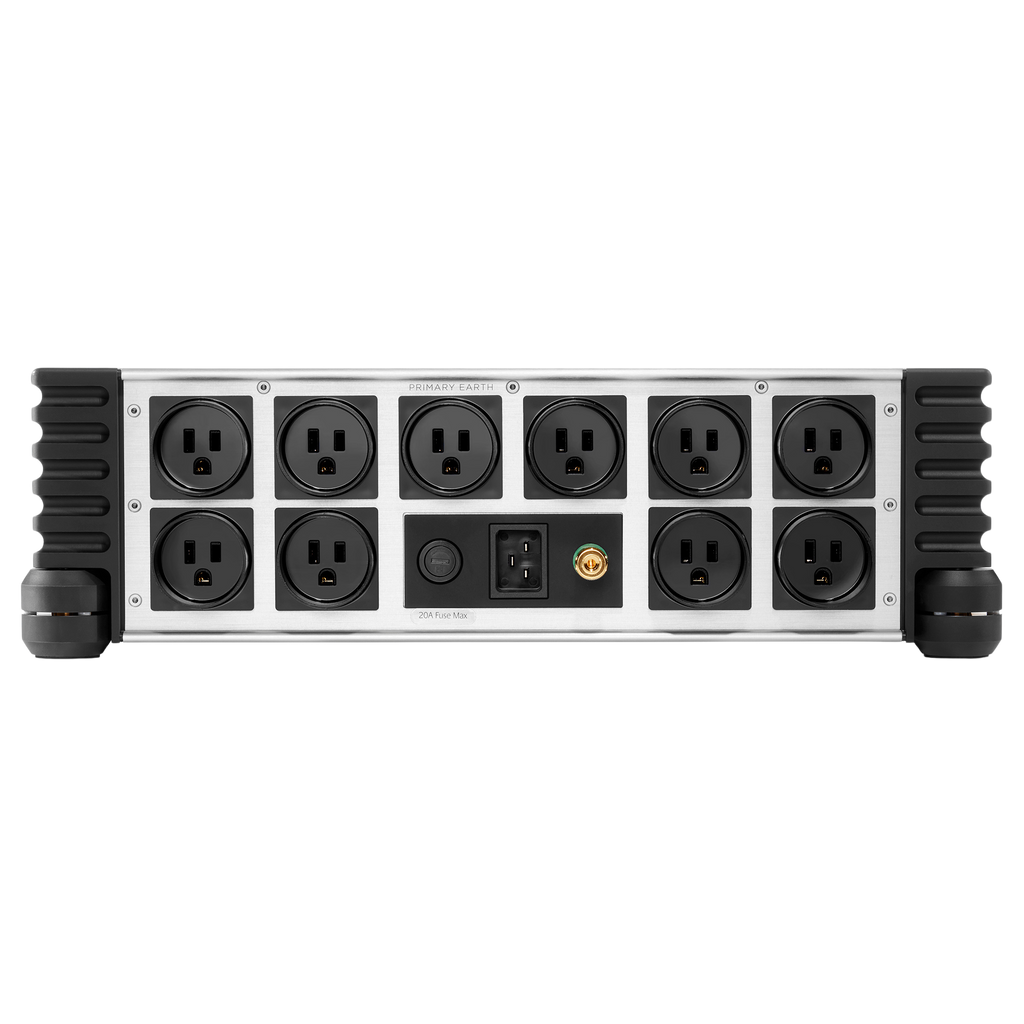

• 10 outlets with star-earth topology
• Double printed circuit board, symmetrical live/neutral layout and separate ground
• Primary Earth, with optional second Primary Earth
• Solid-core internal wiring with Micro Mono-Filament
• Input: IEC C-20 (20/16 A)
• Fuse fitted, with two spare fuses supplied
• Size: 19 x 8 x 5.5 inches (width, depth, height)
• Weight: 11.75 kg
