Nordost Odin 2: analog interconnect cable
Odin 2 is the analog interconnect of the Supreme Reference line, the highest in the Nordost catalogue. It uses ten 23 AWG conductors in 99.999999% pure OFC copper, plated in silver, each one with Dual Mono-Filament technology and FEP insulation extruded with great precision. Added to this is a particular geometry, designed for very fast signal transmission.
The design also covers the HOLO:PLUG connectors, made specifically for this cable: they have low mass and a dual-ring structure, while the gold-plated contacts in solid brass alloy limit vibration and eddy currents at the point where they mate with other components.
Technical features
- Conductors: 10 of 23 AWG, solid core
- Material: 99.999999% pure OFC copper, plated in silver
- Insulation: high-purity extruded FEP, class 1.003
- Construction: Dual Mono-Filament and TSC, with mechanically tuned spacing and length
- Capacitance: 18.5 pF/ft
- Propagation velocity: 90%
- Inductance: 0.05 μH/ft
- Conductors shielded one by one, 100% coverage; gold-plated HOLO:PLUG connectors, RCA or XLR
Available versions

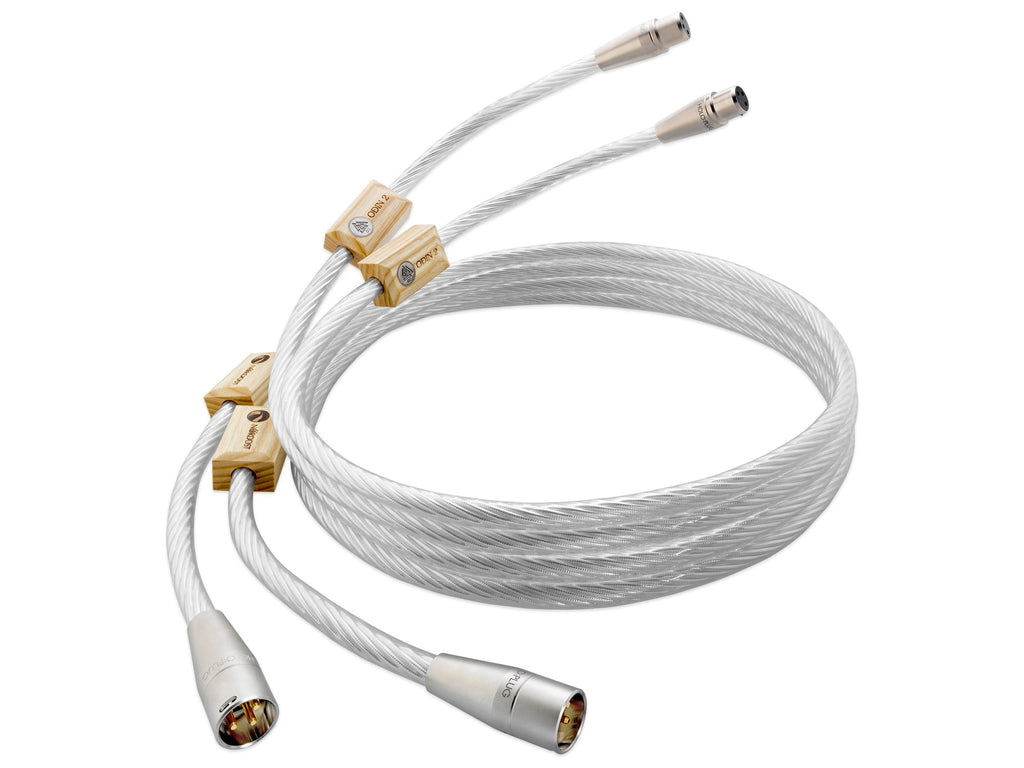

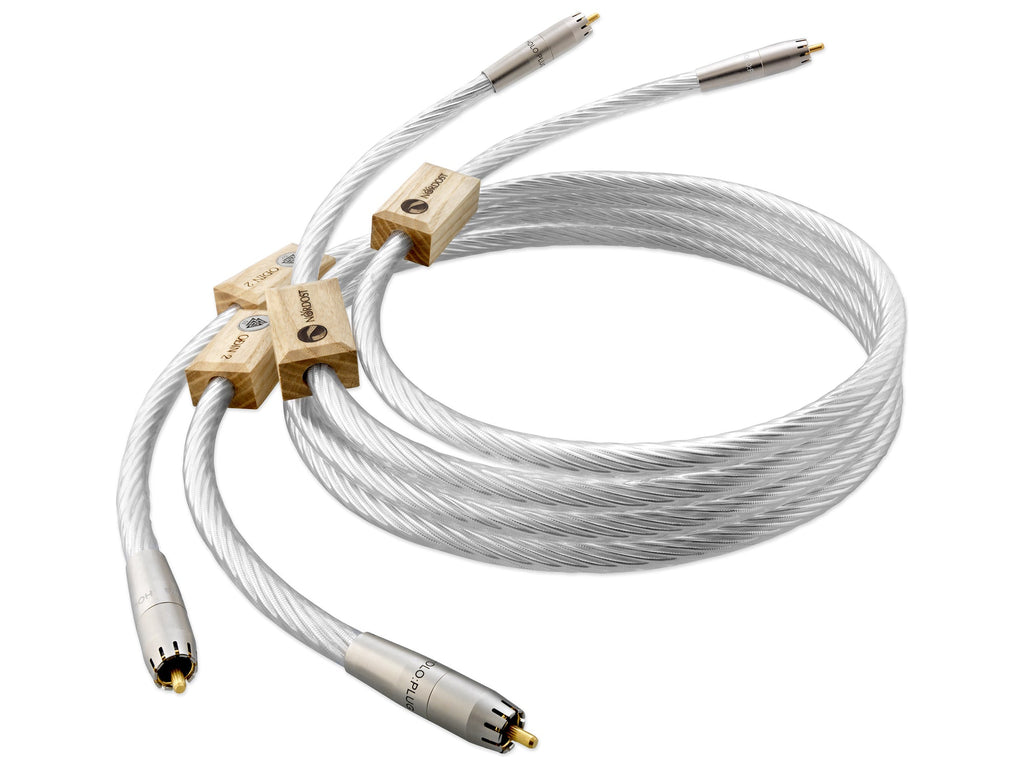

The cable is sold as a pair, in lengths of 0.6 m, 1 m, 1.5 m and 2 m, terminated with RCA or XLR connectors.
