An intelligent device capable of providing Primare's Prisma connectivity and control technology to any audio device with a digital input. AirPlay 2, Bluetooth, Chromecast built-in, Roon Ready, Spotify Connect. MQA support. Voice control via Google Home and Google Assistant devices. Control a network NAS with 24/192kHz PCM and DSD128 streaming, via the dedicated Prisma App. Volume adjustment and input selection for RS232 equipped Primare models via the Prisma App. Inputs: Ethernet (LAN), Wireless (WLAN) and USB A socket. Digital outputs: RCA SPDIF and Optical Toslink, selectable at 48, 96 or 192kHz. RS232. Dimensions (WxHxD): 143x36x125mm.
Primare's Prisma is a connection and control platform, integrating various technologies. The Prisma application is primarily used to configure the operational functions of any Prisma product and control networked hard drives. The associated streaming services are all managed directly by their respective developers, ensuring complete transparency for updating the operating system and music services.
- AirPlay 2
- Bluetooth
- Roon Ready
- MQA extension
- Spotify Connect
- Built-in Chromecast
- More than 160 streaming services, including Roon
- Easy connection to the network using the Google Home app
- Voice control via Google Home and Google Assistant devices
- Multi-room/multi-zone with control via various platforms: AirPlay 2, Spotify Connect, Chromecast built-in and Prisma

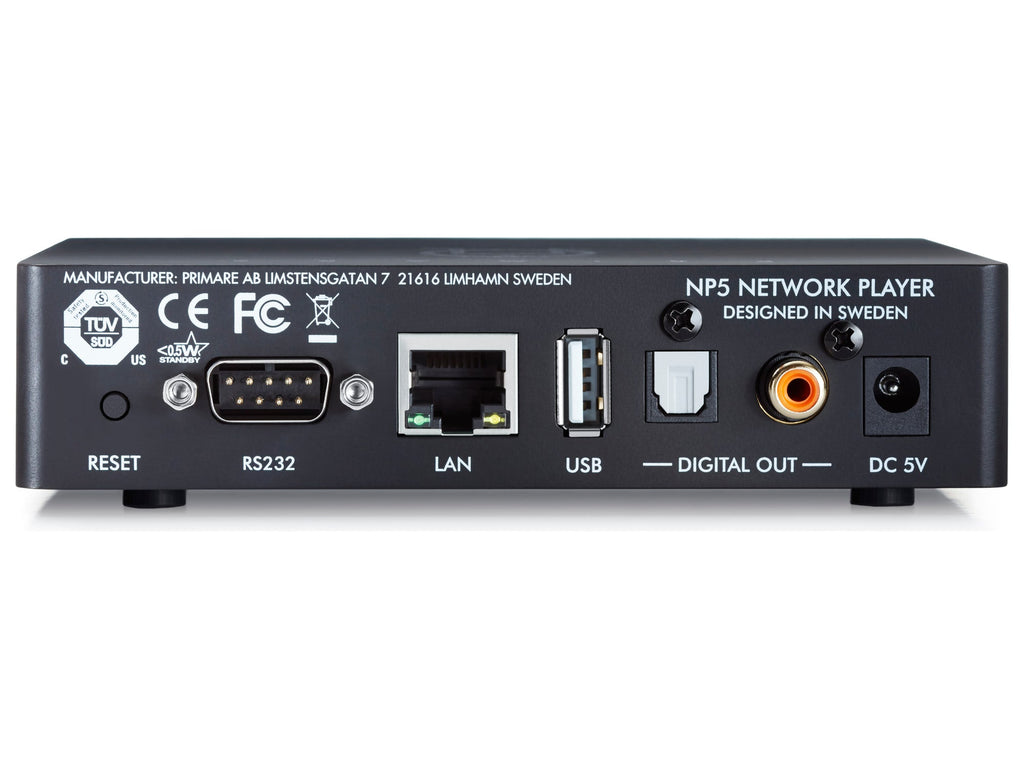

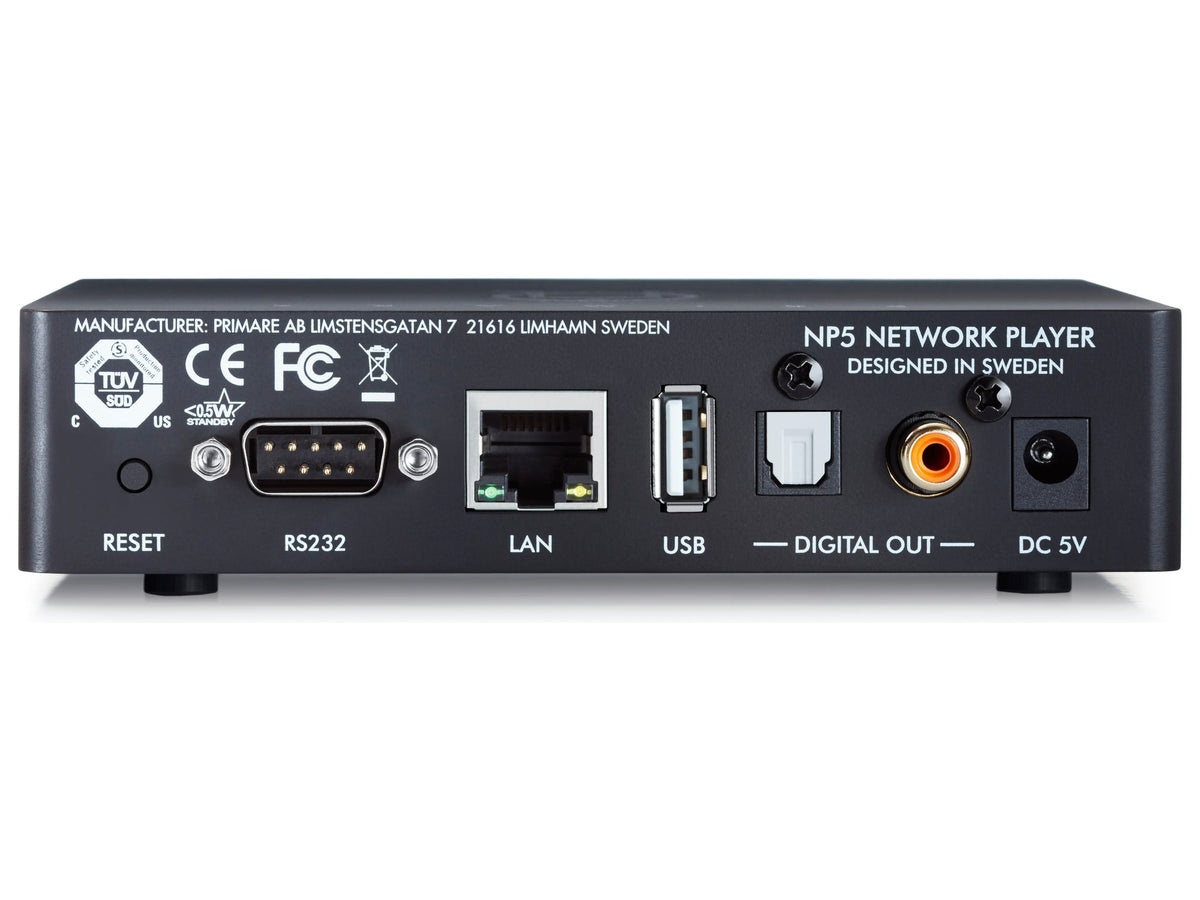

- Inputs: Ethernet (LAN), Wireless (WLAN) and USB A socket
- Digital Outputs: RCA SPDIF and Optical Toslink, selectable at 48, 96 or 192kHz for connection to any DAC
- RS232 socket for Prisma APP control of previous Primare devices: Volume, Mute, Power on/off, input selection, previous/next
- Reading networked NAS to play high resolution 24/192kHz PCM and DSD128 audio files
Technical features:
- Digital Outputs: Coaxial, RCA; optics, TOSlink
- Output sampling frequency, selectable: 48, 96 or 192kHz/24bit
- Digital input: 1 x USB-A up to 192kHz/24bit; DSD128 (5.6MHz)
- Network connections
1 x LAN Ethernet Socket
2 x Internal antennas for Bluetooth and Wi-Fi
LAN: 10/100Mbit Ethernet
WLAN: IEE 802.11 a/b/g/n/ac compliant; 2.4/5GHz; b, g, n mode
- Audio Formats
WAV, LPCM, AIFF, FLAC, ALAC, WMA, OGG: up to 192kHz/24bit
MP3, MP4 (AAC): Up to 48kHz/16bit, VBR & CBR 320kbps
DSD: DSD128 (5.6MHz), MQA
- Streaming
AirPlay 2
Bluetooth®
Built-in Chromecast
MQA extension
Roon Ready (waiting for software update)
Spotify Connect®
DLNA/UPnP
- Control: RS232
- Consumption: Standby <2.9W; Running <3.6W
- Dimensions (LxWxH)
143x125x36mm with connectors
143x120x36mm without connectors
- Weight: 0.5kg
