os
|
ROSE OS 3.0 - Android 7.1 (Nougat)
|
Design
|
|
Dimensions
|
278x202x76mm
|
|
2.3 Kg
|
Finish
|
High quality anodized aluminum for the front and top panel (one block single frame)
|

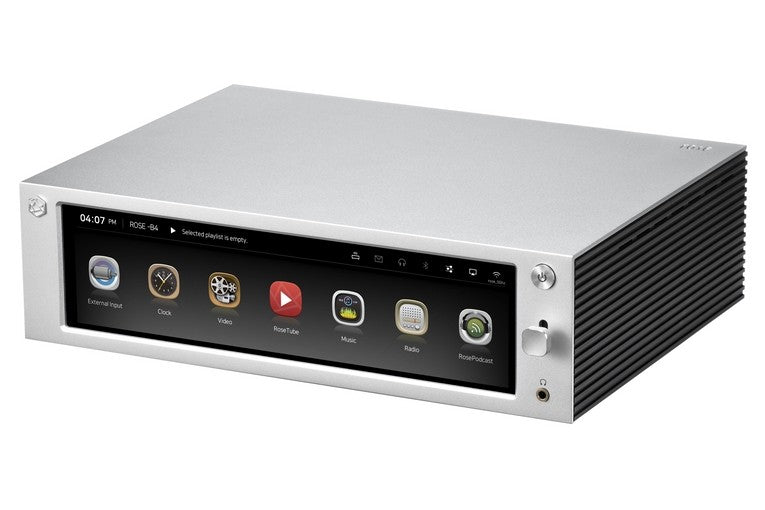

Screen
|
- Wide 8.8" multi-touch color screen
|
Power
|
|
Maximum output power
|
100 Watts (at 8 O), 80 Watts (RMS)
|
Speaker impedance
|
4~16 ohms
|
Wired & Wireless Network
|
|
Network Interfaces
|
WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
|
Bluetooth
|
Bluetooth 4.0 (AD2DP SINK, AVRCP)
|
Streaming
|
Airplay / DLNA / DIAL Service
|

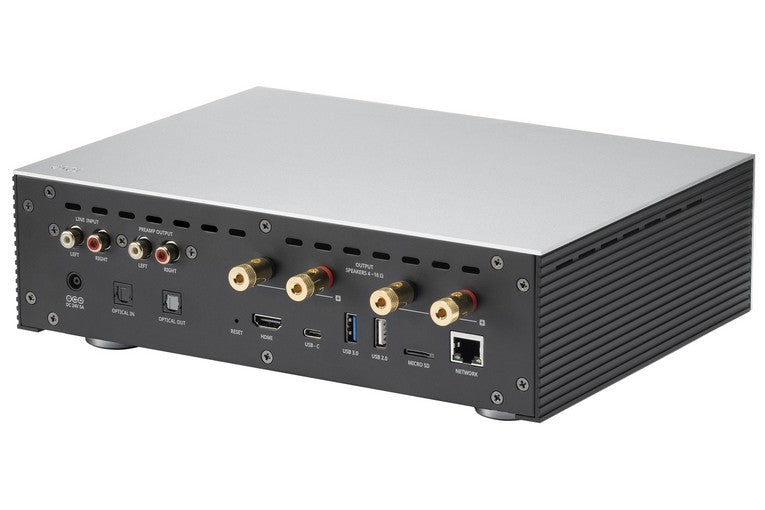

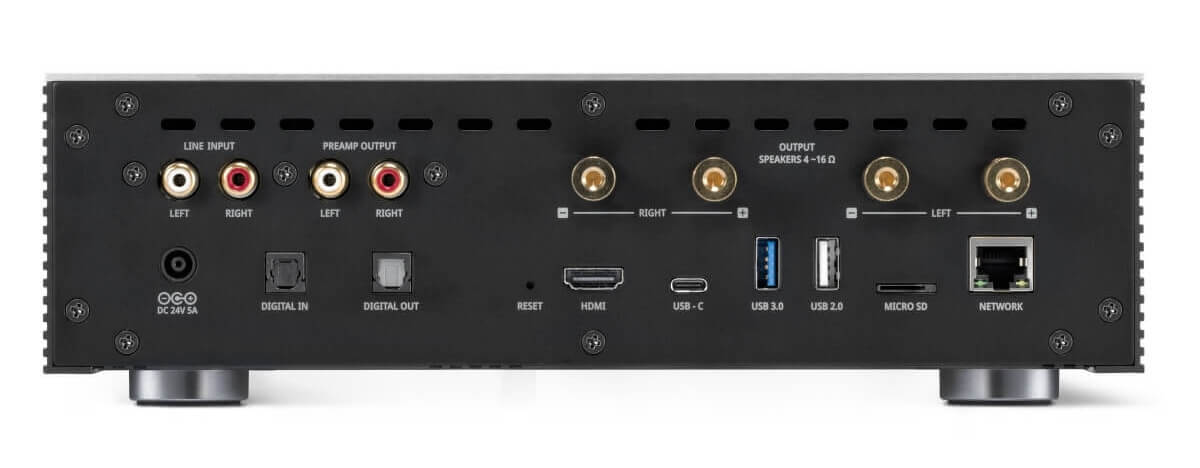

Inputs / Outputs
|
|
Audio inputs
|
Connections for sources such as CD/ DVD /Blu-ray players
S / PDIF connections for TVs, Projectors, CD / DVD / Bluray players
|
Audio outputs
|
Headphone Output : Connection for 3.5mm headphone jack (1Vrms)
Pre-amp output : Connection for a final power amplifier or an integrated (3Vrms)
Loudspeaker output : L+/L-, R+/R- loudspeaker connection (can be deactivated)
Optical Output : S / PDIF (e.g. to connect a Soundbar)
|
Video Outputs
|
HDMI connection for TVs and projectors
|
Linkable Resources
|
USB 2.0 x 1, USB3.0 x 1 (File system - NTFS/FAT32, supported capacity - 512GB USB flash drive, 4TB external HDD)
MicroSD x 1 (File system - NTFS/FAT32, supported capacity - 512GB) SATA3.0 SSD x 1 (File system - NTFS, supported protocol - FTP/WebDav, 4TB)
USB C type x 1 (service port)
|
Supported CODECs
|
|
Audio codecs
|
WAV, FLAC, WMA, MP3, APE, DFF, DSF, ISO SACD, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
PCM : 8KHz~384KHz(8/16/24/32bit per Sample)
Native DSD : DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
|
Video codecs
|
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
|
Diet
|
|
Entrance
|
AC/DC 100-240V, 50-60Hz power supply. Standby power consumption <0.5W
|
Exit
|
DC 24V, 5.0A
|
Updates
|
Firmware updates automatic via internet, or manual via USB (recommended)
|
Online Streaming Services
|
|
Audio / Video
|
YouTube (RoseTube), Podcasts, Internet Radio, Tidal HiFi and MQA Master, Qobuz, Spotify Connect, Roon Ready Certified, VLC |
Control Systems
|
|
Remote control
|
Bluetooth remote control included
|
Native app
|
Rose Connect HiFi for Android or iOS Smartphones and Tablets
|
Accessories
|
AC/DC Power Adapter x 1, Quick Start Guide x 1, Bluetooth Remote Control x 1, Batteries (AAA) x 2, SSD Fixing Screws x4, Screwdriver x 1
|
