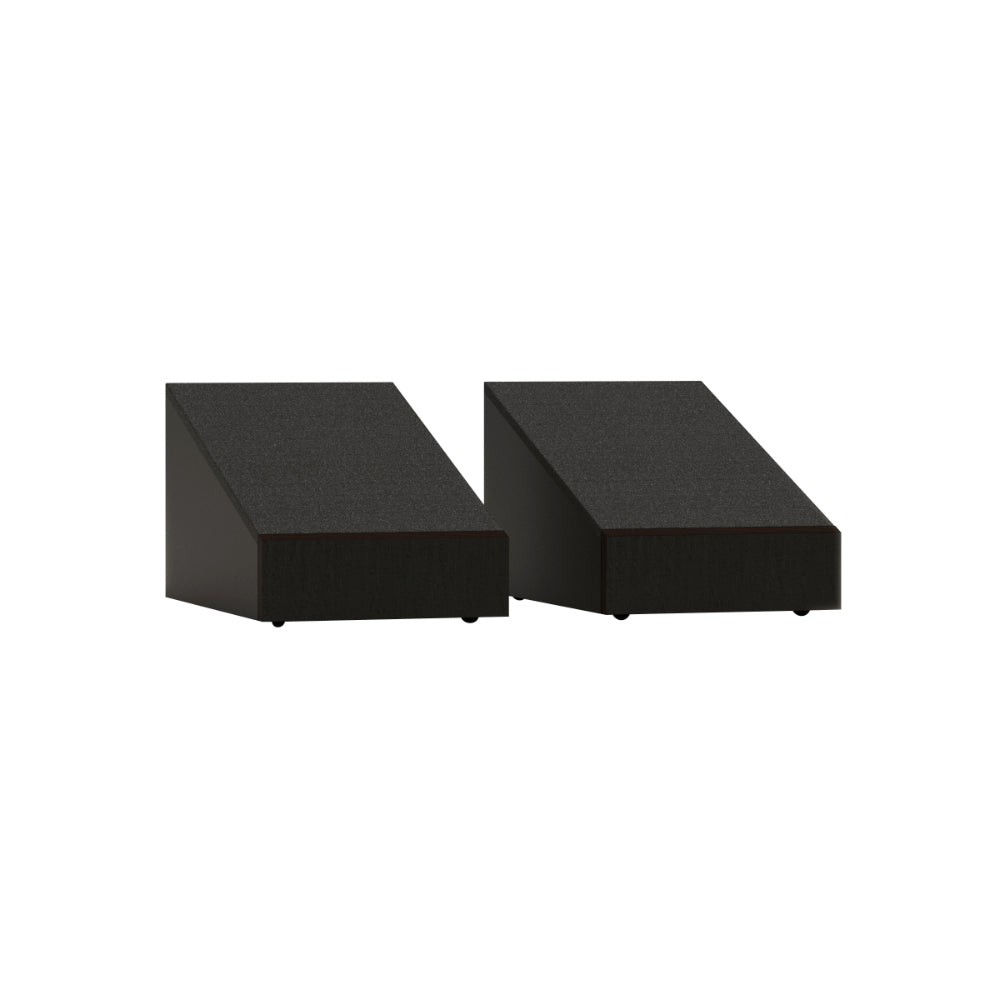

Monitor Audio Bronze AMS 7G: two-way Dolby Atmos modules
The Bronze AMS 7G, a small two-way speaker enabled for Dolby Atmos, adds the height dimension to a home cinema system. It is made to rest on top of the Bronze 50 7G or the Bronze 300 7G: the proportions of the cabinet are worked out to give visual continuity with these models and simple integration into the system.
The 25 mm C-CAM Gold Dome tweeter in a UD waveguide is matched with a 4-inch C-CAM cone for the mid and low frequencies. The cabinet is of the closed, acoustic suspension type, and the crossover is a new design. Together they serve to reproduce height-channel effects accurately and to build a three-dimensional soundstage while watching films.
Technical features
- Configuration: two-way in a closed box
- Drive units: 25 mm C-CAM Gold Dome tweeter in a waveguide and 4-inch C-CAM cone
- In-room frequency response (-6 dB): from 83 Hz to 30 kHz
- Sensitivity: 86 dB (2.83 Vrms at 1 m, free field)
- Nominal impedance: 8 Ohm, with a minimum of 3.7 Ohm at 10 kHz
- Crossover point: 4.8 kHz
- Suggested amplification: 10-60 W on 8 Ohm, 30-120 W on 4 Ohm; continuous power handling 60 W
- Size with every accessory fitted: height 173 mm, width 185 mm, depth 302 mm
- Weight: 3.1 kg each
Available versions
Sold as a pair, in Black finish.
