Monitor Audio Anthra W10: 10-inch active subwoofer
Smallest of Monitor Audio's Anthra subwoofers, the Anthra W10 is indicated by the manufacturer for small and medium rooms. A 500 W Class-D amplifier drives a 10-inch (25 cm) long-excursion C-CAM driver with RST II (Rigid Surface Technology II), housed in a sealed enclosure with extensive internal bracing.
A colour LCD screen and a rotary knob, on the back, handle basic adjustment and the choice of equalisation curves; the MaestroUnite app manages the advanced functions, such as DSP and the configuration of several subwoofers. The W10 can work alone or with other Anthra subwoofers, up to three.
Technical features
- Type: active, sealed box, high-efficiency Class-D amplifier
- 10-inch (254 mm) triple-suspension driver, peak-to-peak excursion 50 mm
- Power at 240 V AC: 500 W instantaneous, 425 W continuous short-term
- Response at -6 dB: 17 Hz to 400 Hz (low-pass filter off)
- Low-pass filter adjustable between 20 and 200 Hz, slope from -3 to -48 dB per octave; phase 0-360 degrees
- Equalisation: 3 preset curves and 3 customisable 8-band curves, through MaestroUnite
- Inputs: unbalanced stereo RCA (or mono/LFE) and balanced mono/LFE XLR; RCA and XLR pass-through outputs
- Cabinet in 18 mm braced MDF, 36 mm front panel, magnetic fabric grille
- Dimensions without feet: 321 mm per side (height, width, depth); weight: 20.06 kg
Available versions

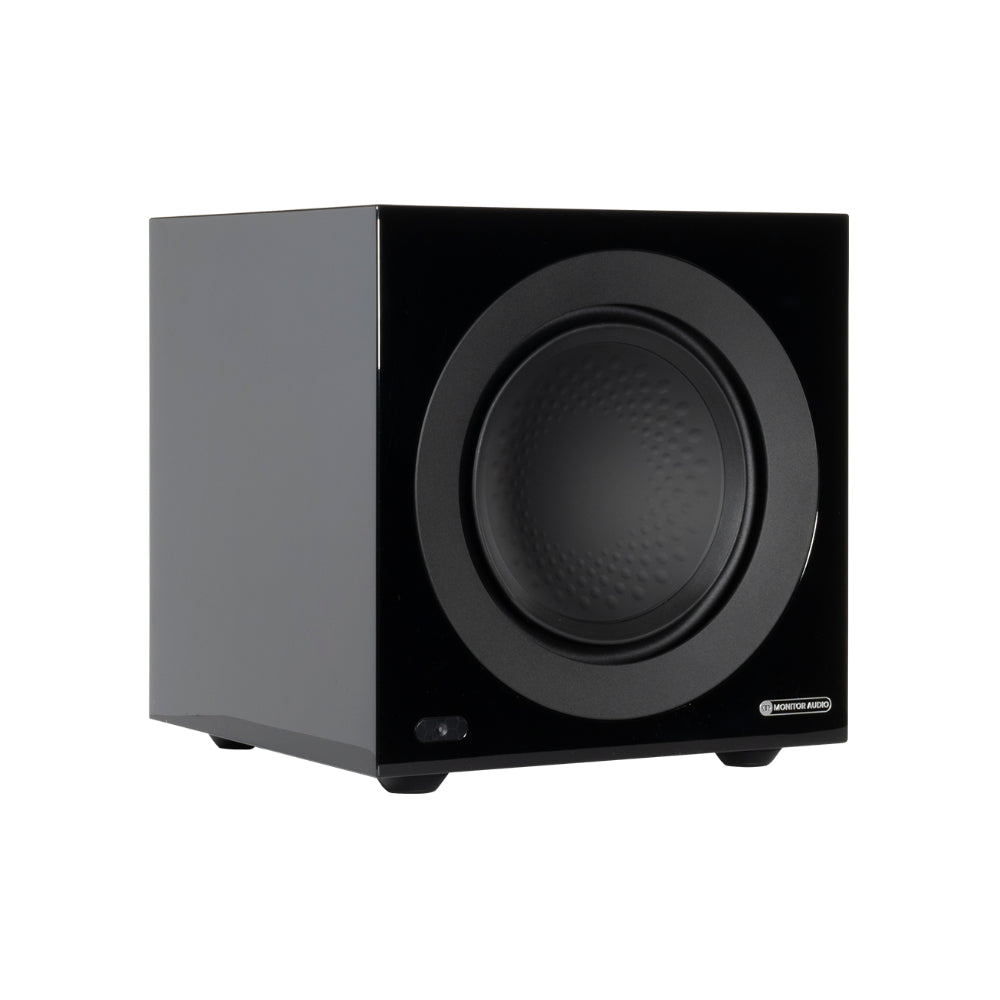

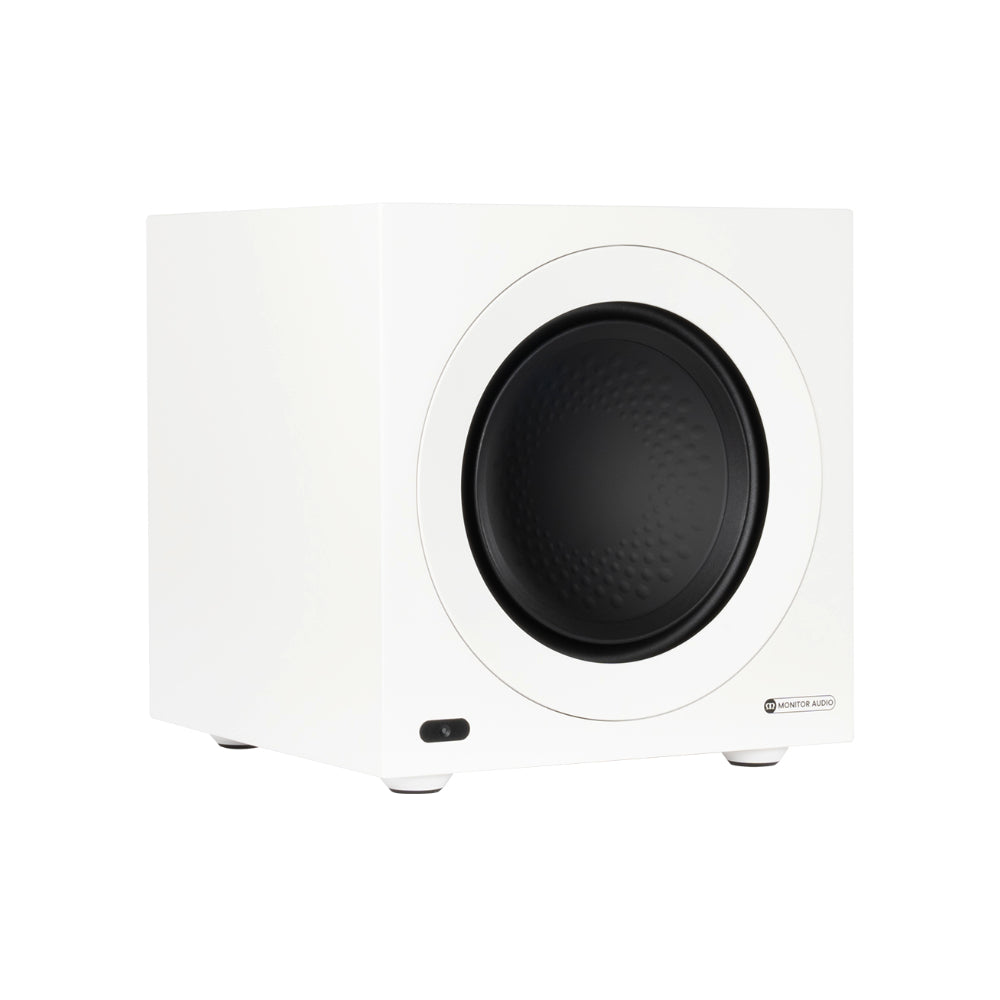

Sold as a single unit, in High Gloss Black and Satin White finishes.
