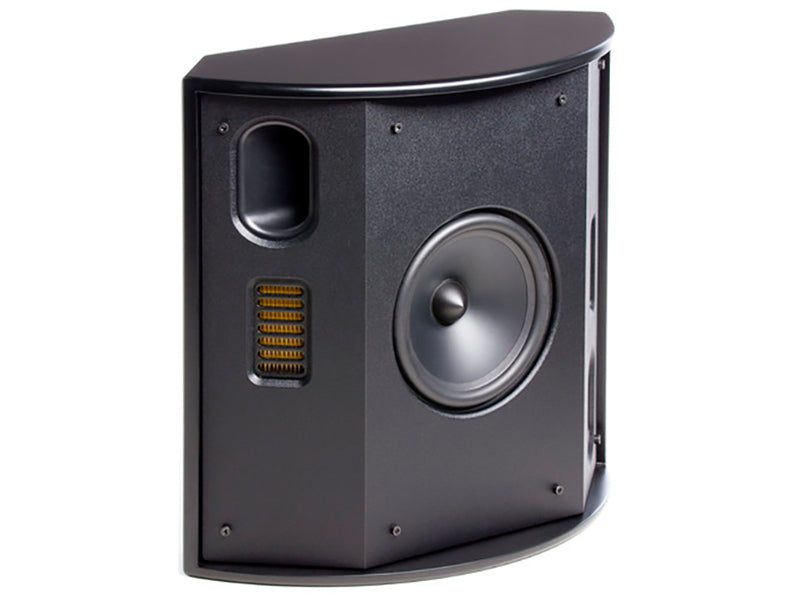

The EM FX2 features dual folding Proposal XT tweeters in a wide dispersion array ideal for surround channel applications. A single 6.5-inch doped fiber cone woofer provides powerful low-frequency extension.
The EM- FX2 is designed for corner, wall or corner wall mounting for versatile surround sound placement in any room.
OVERVIEW:
Frequency response
|
55-25,000Hz ±3dB
|
Recommended amplifier power
|
20-200 watts per channel
|
Horizontal dispersion
|
160th
|
Vertical dispersion
|
30th
|
sensitivity
|
93dB at 2.83 volts/meter
|
Impedance
|
5 Ohms Compatible with 4, 6 or 8 Ohm amplifiers.
|
crossover frequency
|
2,300Hz
|
High frequency transducer
|
Two 1.25" × 2.4" (3.2cm × 6.1cm) folded-motion XT transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm
|
Low frequency transducer
|
6.5" (16.5cm) paper cone with cast aluminum basket.
|
components
|
Custom inductors for air core coils. Polyester film capacitors in series and low density electrolytic capacitors in parallel. Thermal / current protection tweeter.
|

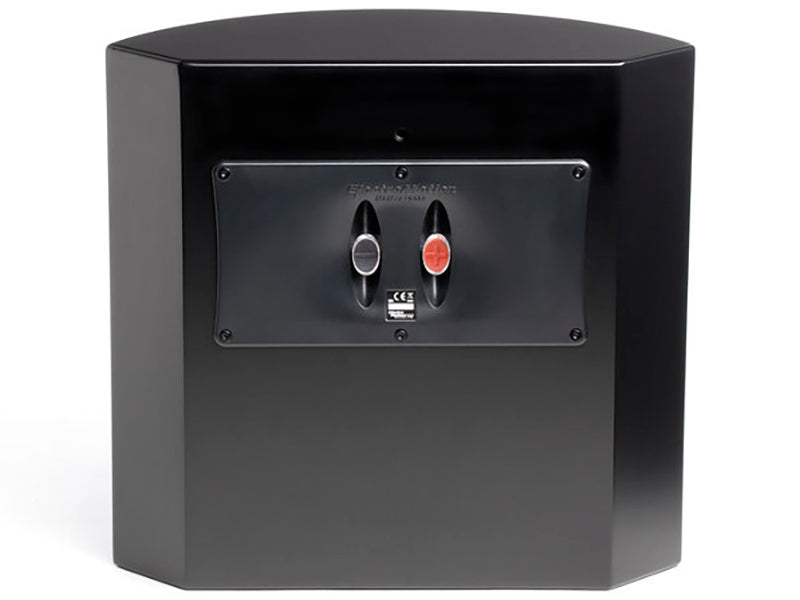

inputs
|
Push style with banana jacks
|
Weight
|
16 lbs. (7.3kg)
|
Dimensions
|
14.9" x 14" x 6.8" (37.9cm x 35.5cm x 17.2cm)
|
