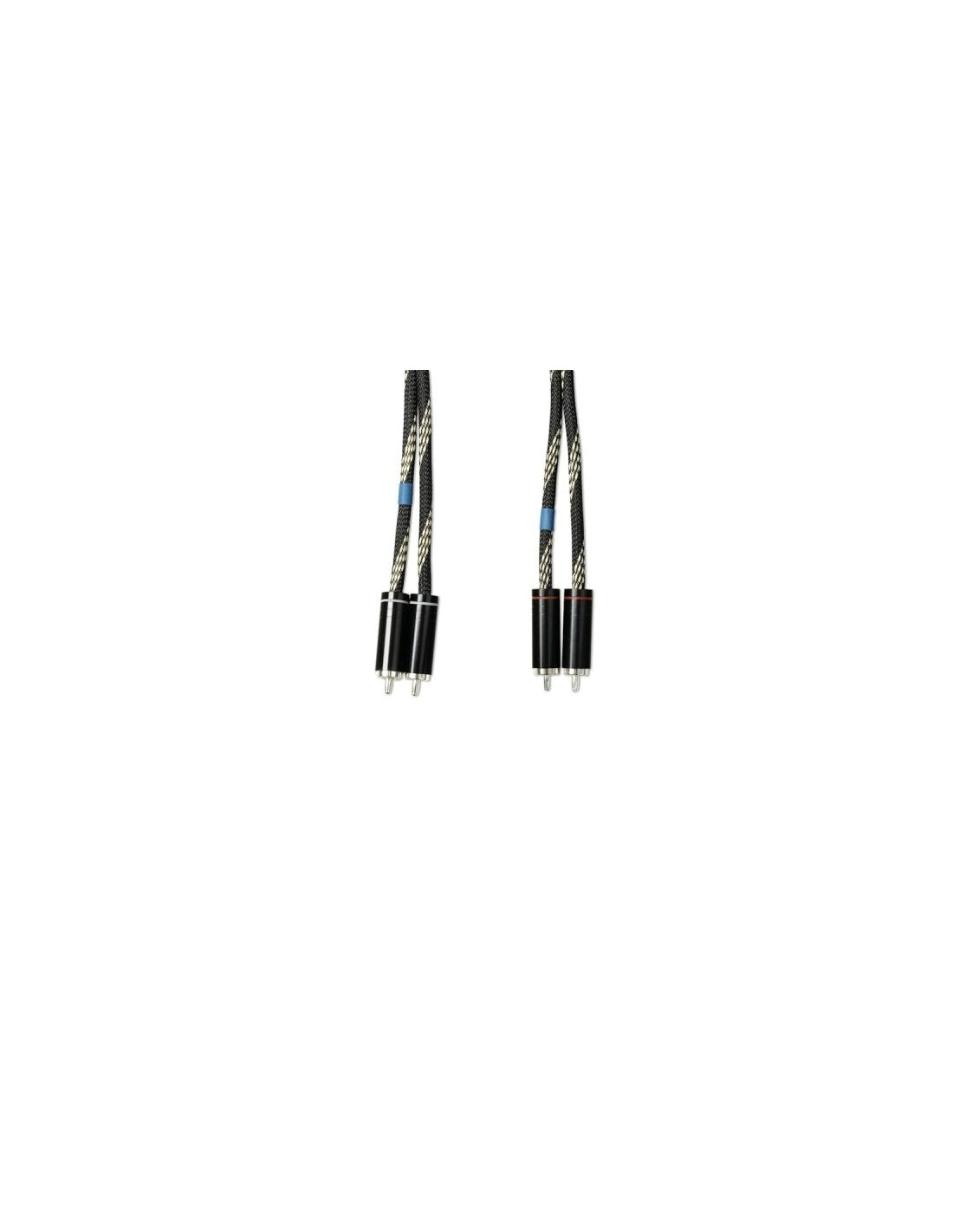

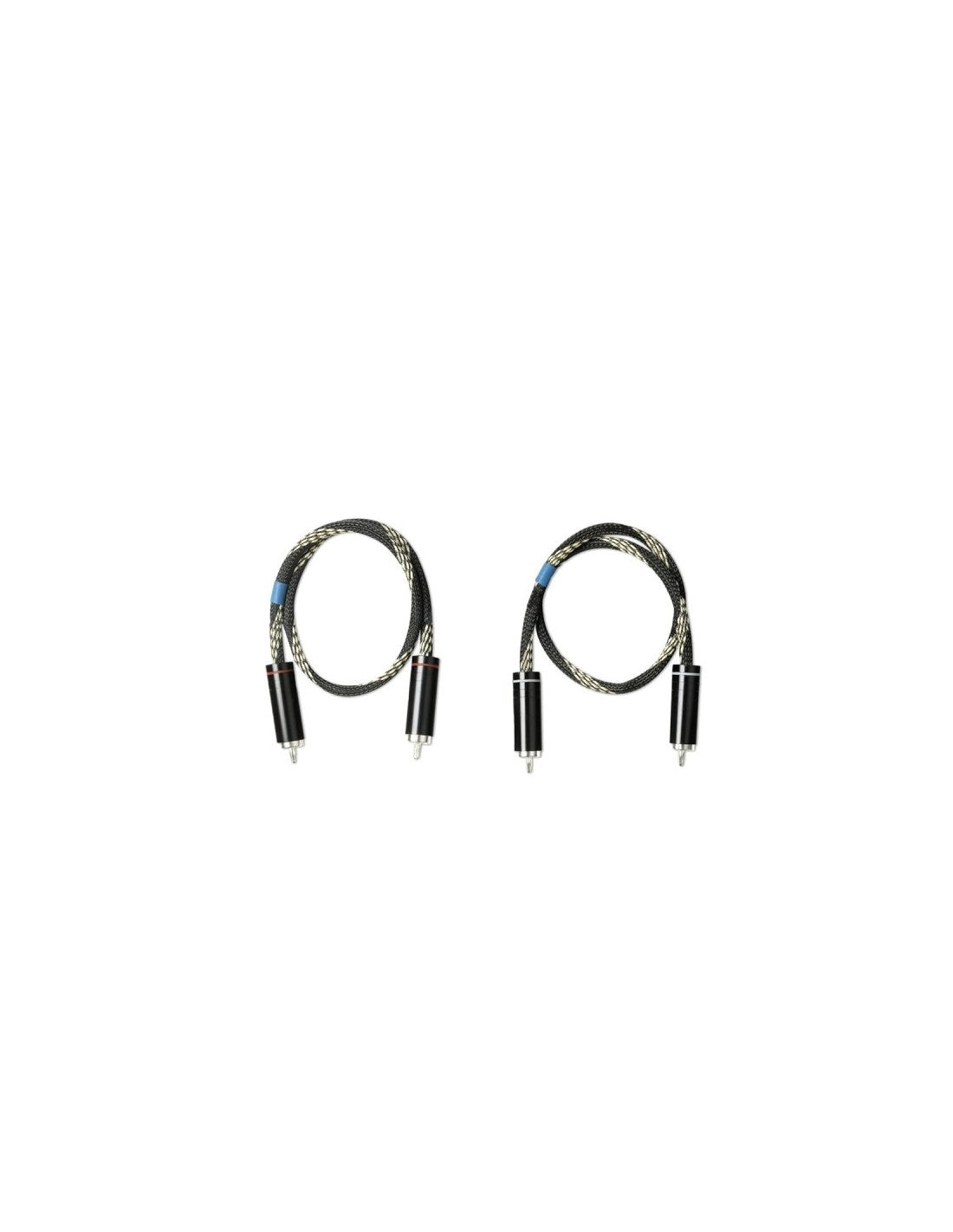

A stereo interconnect from the Connect it DS series with RCA plugs at both ends, for line-level connections between sources, phono stages and amplifiers; it is offered in several lengths.
Line DS RCA: conductors, screen and contacts
Line DS RCA is the unbalanced line cable in the DS series: one pair of channels, RCA on one side and RCA on the other. It takes over the construction of the phono cables in the same line unchanged, so it brings to the links between electronics the low capacitance and screening devised for a cartridge signal.
Each channel uses 99.99% pure OFC copper in two 0.2 mm² conductors, arranged in a semi-symmetrical geometry and insulated with very flexible cellular polyethylene. The screen is an OFC copper helix laid over a carbon-loaded conductive sub-jacket, which keeps interference out while leaving the cable supple. The maker quotes 90 pF of capacitance for the 1.23 m cut.
The plugs have silver-plated signal pins, which Pro-Ject prefers to gold for the better conductivity. Silver can oxidise on the surface, but the effect stays cosmetic and does not degrade the contact. The DS line is assembled by hand in Europe.
Specifications
- Connectors: RCA at both ends, stereo cable
- Conductors: OFC copper, 99.99% purity
- Cross-section: 2 x 0.2 mm², semi-symmetrical geometry
- Capacitance: 90 pF quoted for the 1.23 m cut
- Insulation: very flexible cellular polyethylene
- Screen: OFC copper helix over a carbon-loaded conductive sub-jacket
- Outer sheath: halogen-free thermoplastic elastomer (TPE)
- Contacts: silver-plated signal pins
- Origin: assembled by hand in Europe
