Round in-ceiling speaker with Uni-Q® driver

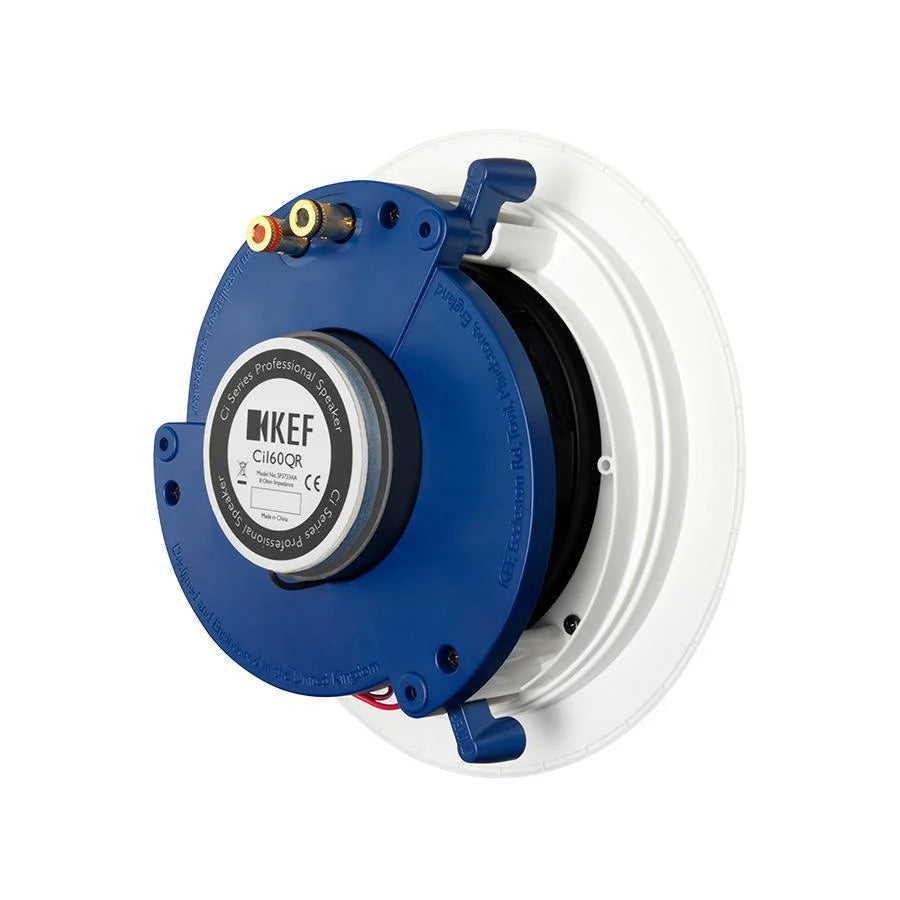

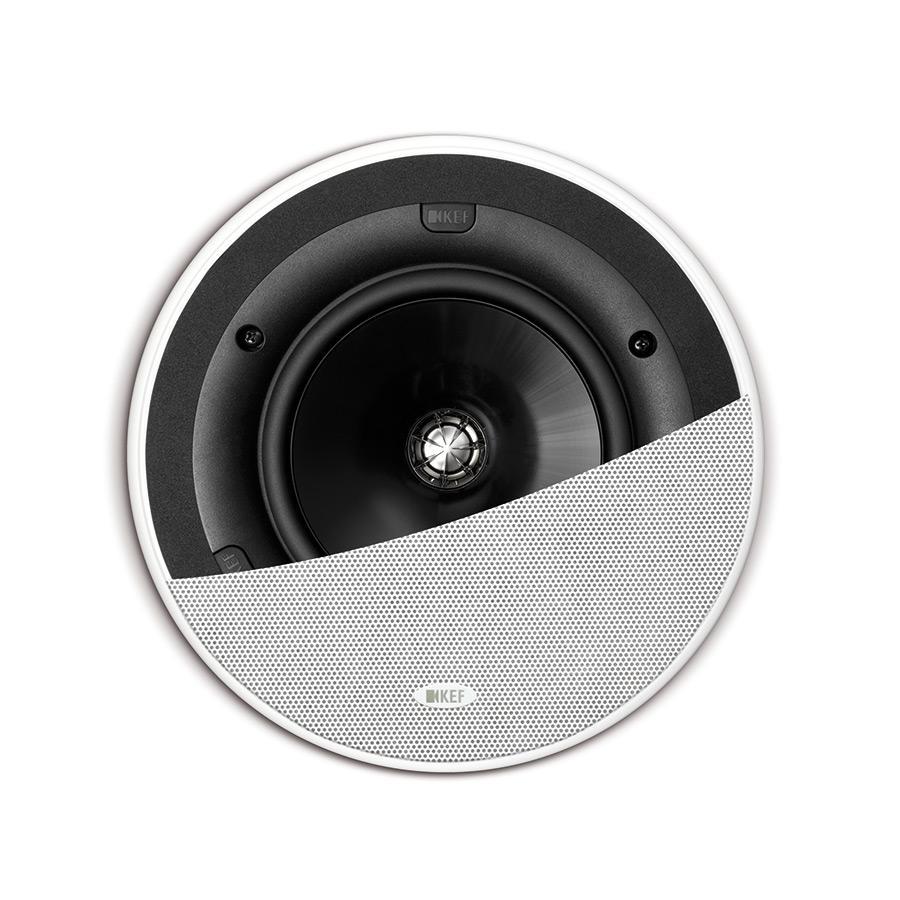

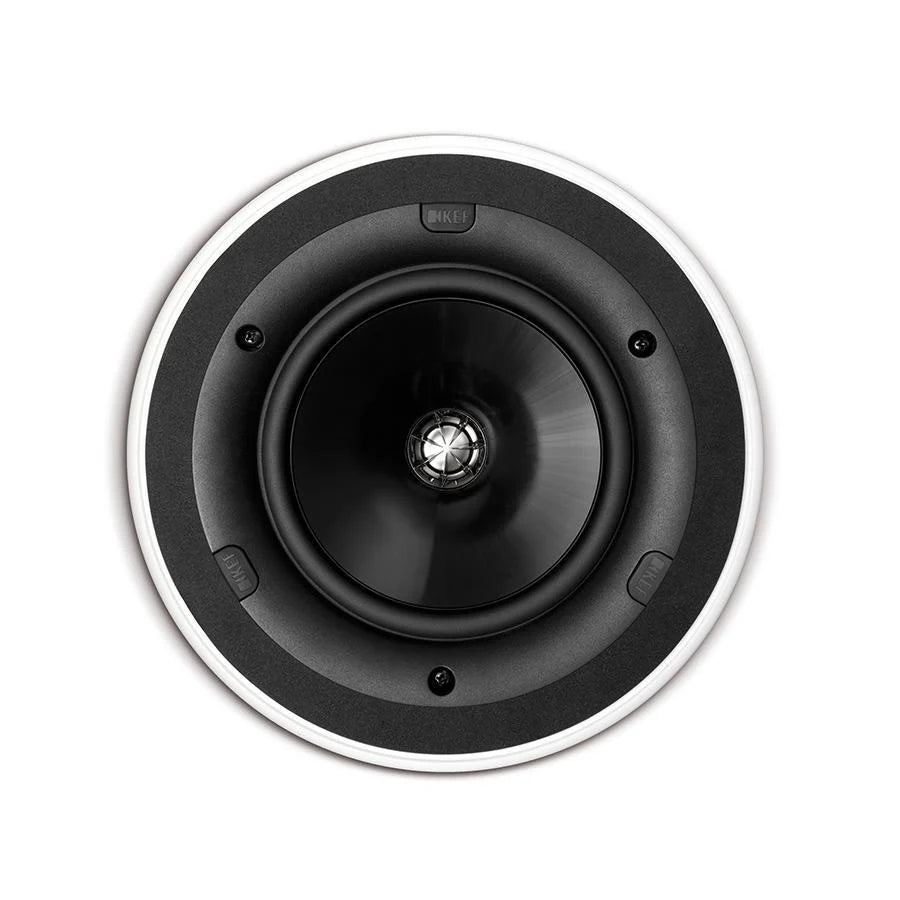

The KEF Ci160QR is a round two-way flush-mount speaker designed to blend into ceilings with the utmost discretion, filling the room with wide, even sound thanks to the KEF Uni-Q® driver. Sold individually, it combines a 160 mm (6.5") woofer with a 19 mm aluminium tweeter with Tangerine Waveguide in a Uni-Q® configuration for a frequency response from 38 Hz to 34 kHz. The Ultra-Thin Bezel (UTB) frame and the gold-plated spring terminals complete a construction refined in every detail. For those who need the square format, the Ci160QS model offers the same drivers in a square-edged version, while the Ci160QL is available in the rectangular format.
Uni-Q® with Tangerine Waveguide: maximum sound coverage with fewer speakers
The KEF Uni-Q® driver places the 19 mm tweeter exactly at the acoustic centre of the 160 mm woofer, so that both act as a single point source. The Tangerine Waveguide optimises high-frequency dispersion for crystal-clear, even sound throughout the room. The result is wide sound coverage that allows fewer speakers to be installed than with conventional solutions, while also optimising the perceived soundstage.
Full-range performance and quick installation
With a sensitivity of 89 dB, a response reaching down to 38 Hz and compatibility with amplifiers from 10 to 125 W into 8 Ω, the Ci160QR delivers rich, balanced sound suited both to background music and to more involved listening in any area of the home or commercial space.
Flexible, discreet in-ceiling installation
With an external diameter of 234.6 mm and a mounting depth of 91 mm, the Ci160QR fits ceilings with a thickness from 6 to 36 mm. The required cut-out has a diameter of 196 mm. The optional RIF160R pre-installation frame simplifies fitting during construction or renovation.
The versatile round speaker for every zone of the system
The Ci160QR is the ideal choice for multiroom audio distribution, secondary listening zones and rooms where the circular format blends naturally into the architecture of the ceiling. It pairs perfectly with the other speakers in the KEF Ci-Q series — including its twins, the Ci160QS (square) and Ci160QL (rectangular) — ensuring the same Uni-Q® sonic signature at every point of the installation.
Technical specifications
| Type |
Round two-way flush-mount speaker |
| Sold as |
Single |
| Driver |
LF: 160 mm (6.5") • HF: 19 mm aluminium with Tangerine Waveguide Uni-Q® |
| Technology |
Uni-Q® driver array, Tangerine Waveguide, Ultra-Thin Bezel (UTB) |
| Frequency response (±6dB) |
38 Hz – 34 kHz (open backed) |
| Crossover frequency |
3.0 kHz |
| Sensitivity |
89 dB (2.83 V / 1 m) |
| Nominal impedance |
8 Ω |
| Recommended amplifier power |
10 – 125 W |
| Terminals |
Gold-plated, spring-loaded |
| External dimensions |
Ø 234.6 mm × depth 98 mm |
| Cut-out dimensions |
Ø 196 mm |
| Mounting depth |
91 mm |
| Compatible ceiling thickness |
Min. 6 mm – Max. 36 mm |
| Optional pre-installation frame |
RIF160R |
| Net weight |
2.05 kg |
