JBL MA710: 7.2-channel AV receiver with DTS:X and Dolby Atmos
With the MA710 the amplified channels of the MA series become seven, and decoding of the immersive DTS:X and Dolby Atmos formats arrives, in 5.1.2 or 7.1 layouts. Against the MA510 it offers 110 W per channel, six HDMI inputs instead of four, a phono input for a turntable and an audio output for a second zone of the home.
Seven low-noise Class D stages feed the loudspeakers, and the two front channels can be wired for bi-amping. Video travels over HDMI 2.1 at up to 8K, with HDR10+, Dolby Vision and the VRR, ALLM, QFT and HFR gaming functions. Music is streamed through AirPlay 2, Chromecast and Bluetooth aptX Adaptive. Alongside the physical controls there is IP control, useful for fitting the unit into third-party automation systems. Calibration is handled by EZ Set EQ and the on-screen menus; a Pure Analog mode is provided.
Key features
- Seven channels of 110 W RMS into 8 ohms, becoming 160 W RMS into 4 ohms (20 Hz - 20 kHz, two channels driven, 0.5% maximum distortion)
- DTS:X and Dolby Atmos decoding for 5.1.2 or 7.1 systems
- Six HDMI 2.1 inputs with HDCP 2.3 (8K/60 Hz, 4K/120 Hz) and one output with eARC
- Wi-Fi and Ethernet, with AirPlay 2, Chromecast and Roon Ready
- Bluetooth v5.3 Low Energy with aptX HD and aptX Adaptive
- Phono input for moving-magnet cartridges, with ground terminal
- Stereo pre-out for Zone 2 and twin subwoofer pre-outs
Connections

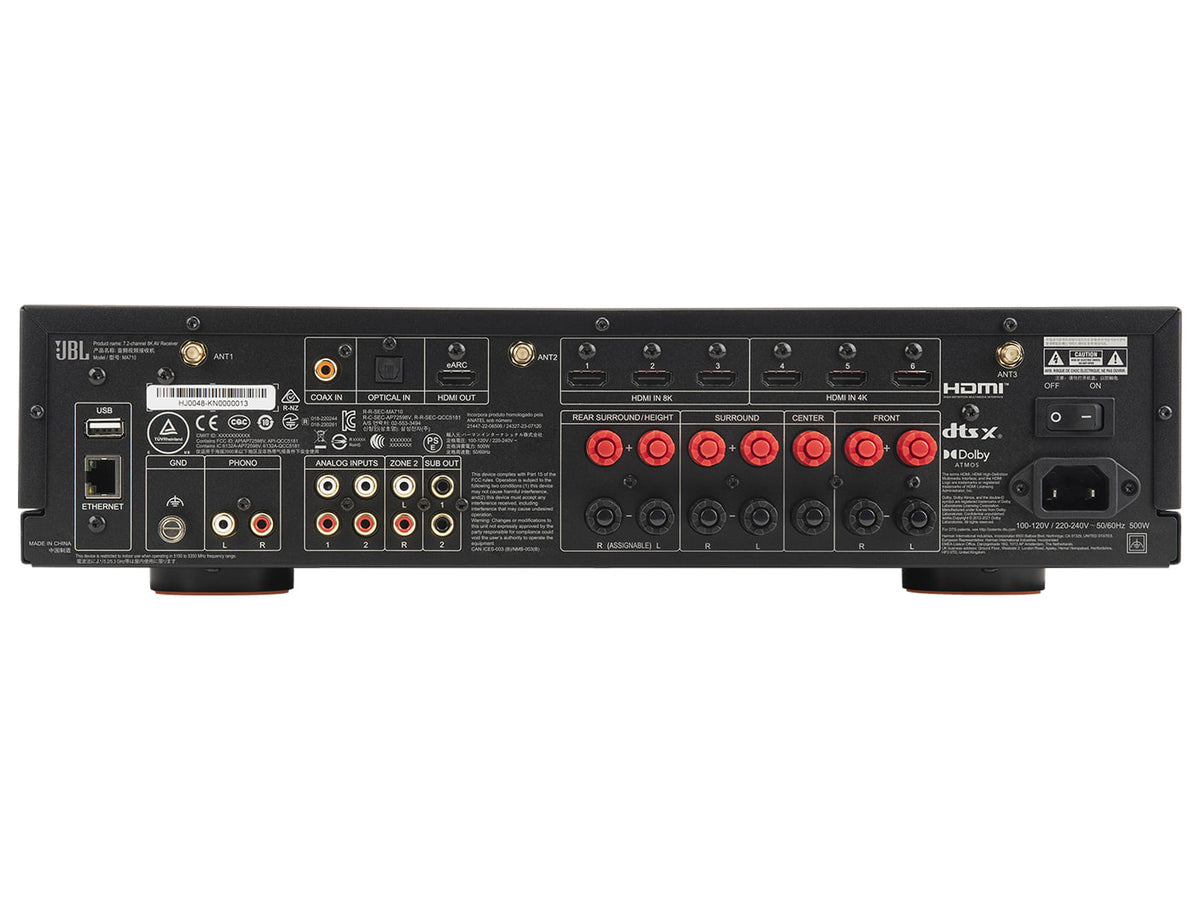

The rear panel carries coaxial, optical and USB digital inputs, two unbalanced line-level analogue inputs on RCA, the MM phono input, the RCA pre-outs (stereo Zone 2 and two subwoofers) and the RJ45 Ethernet port. Digital processing works at up to 24-bit/192 kHz. A remote control comes in the box.
Technical data

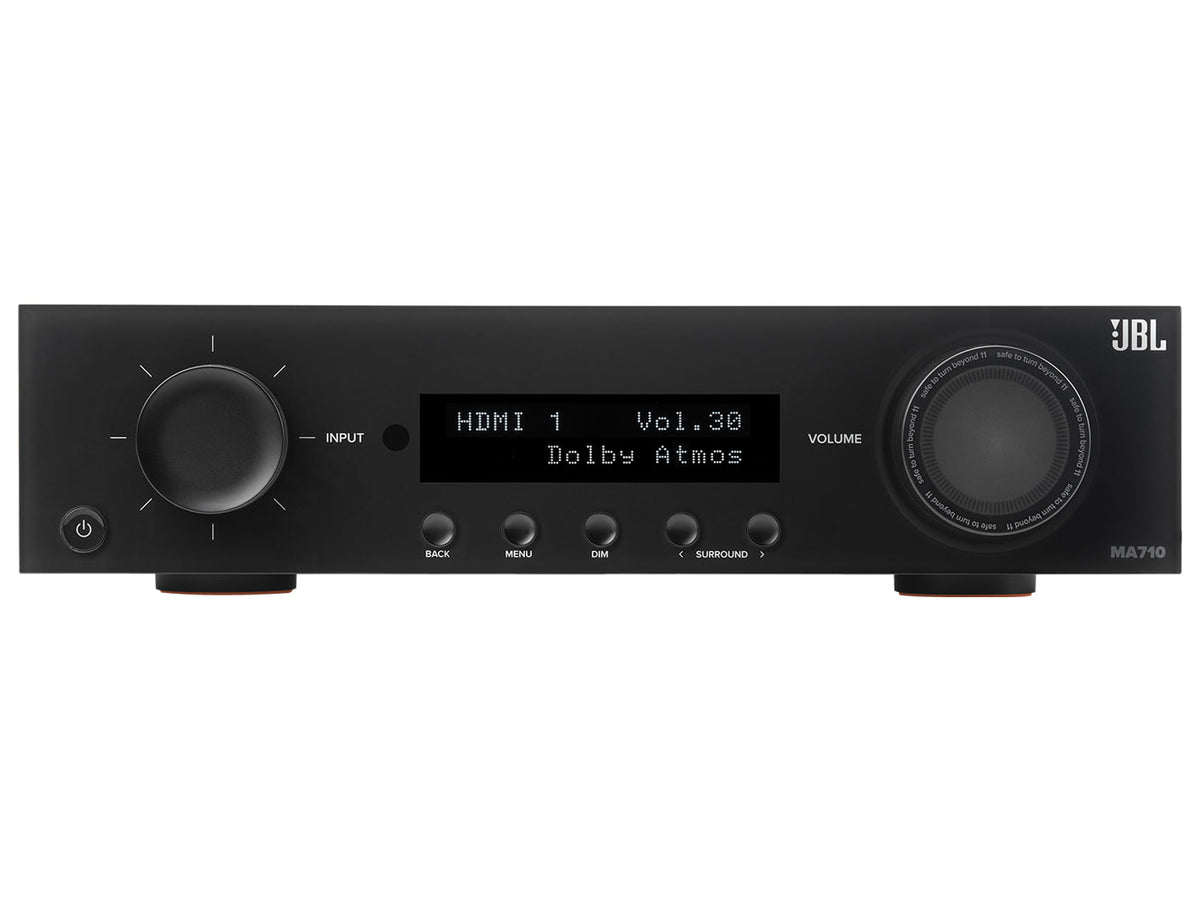

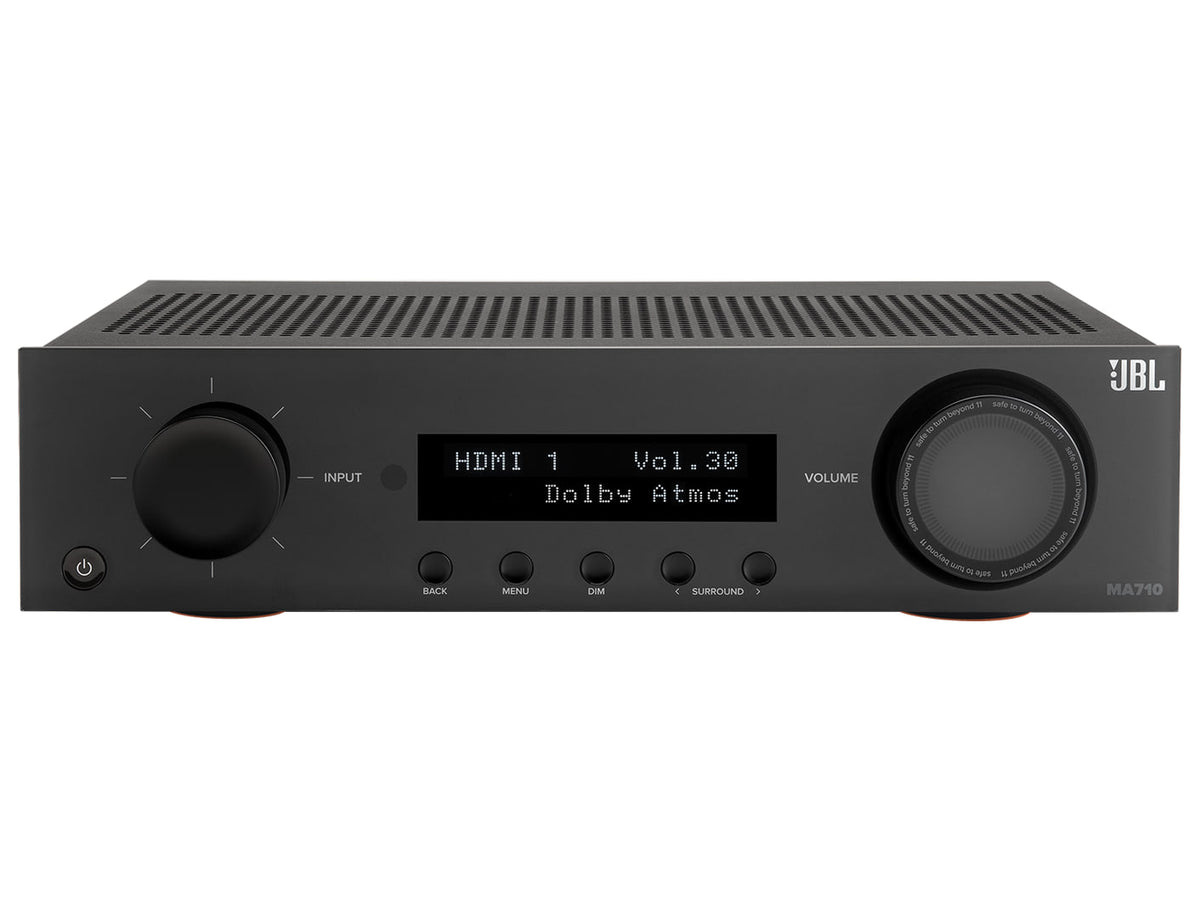

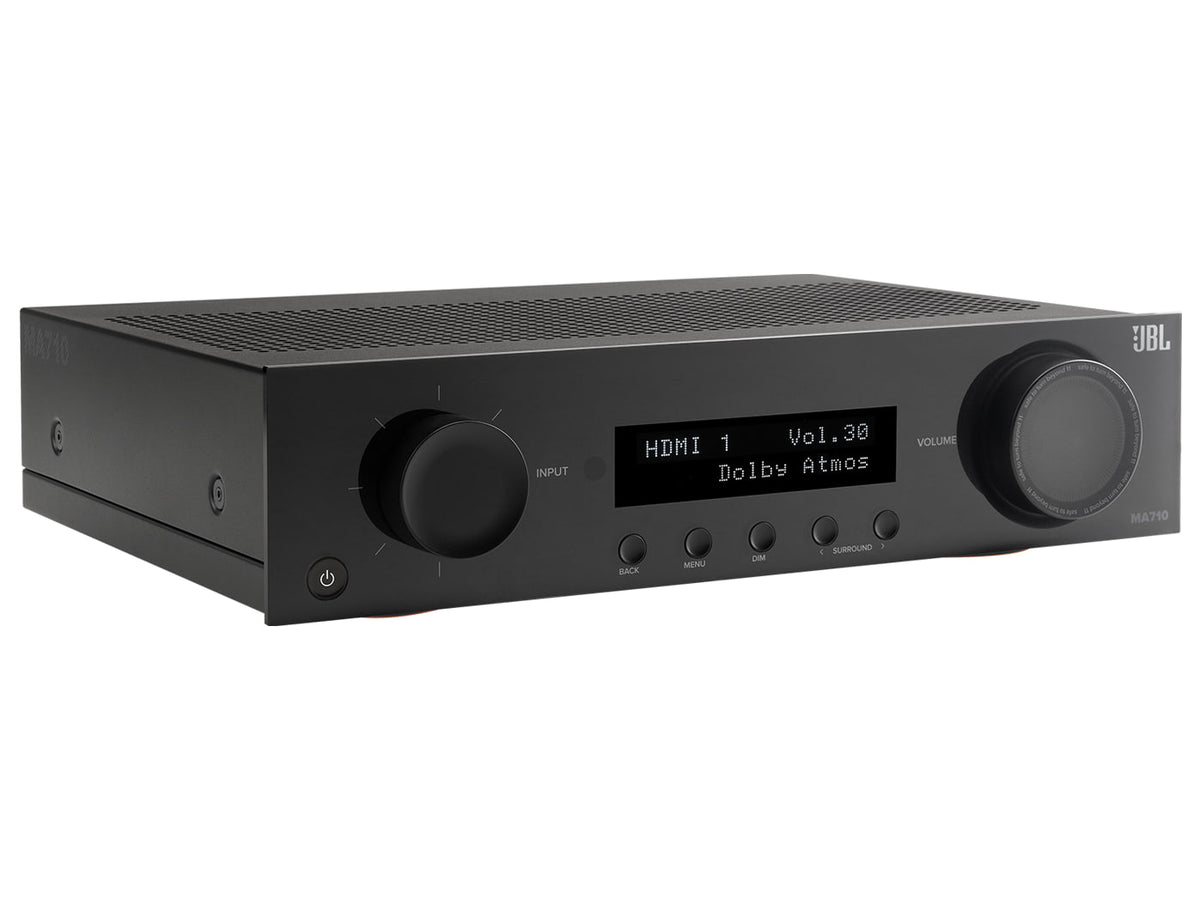

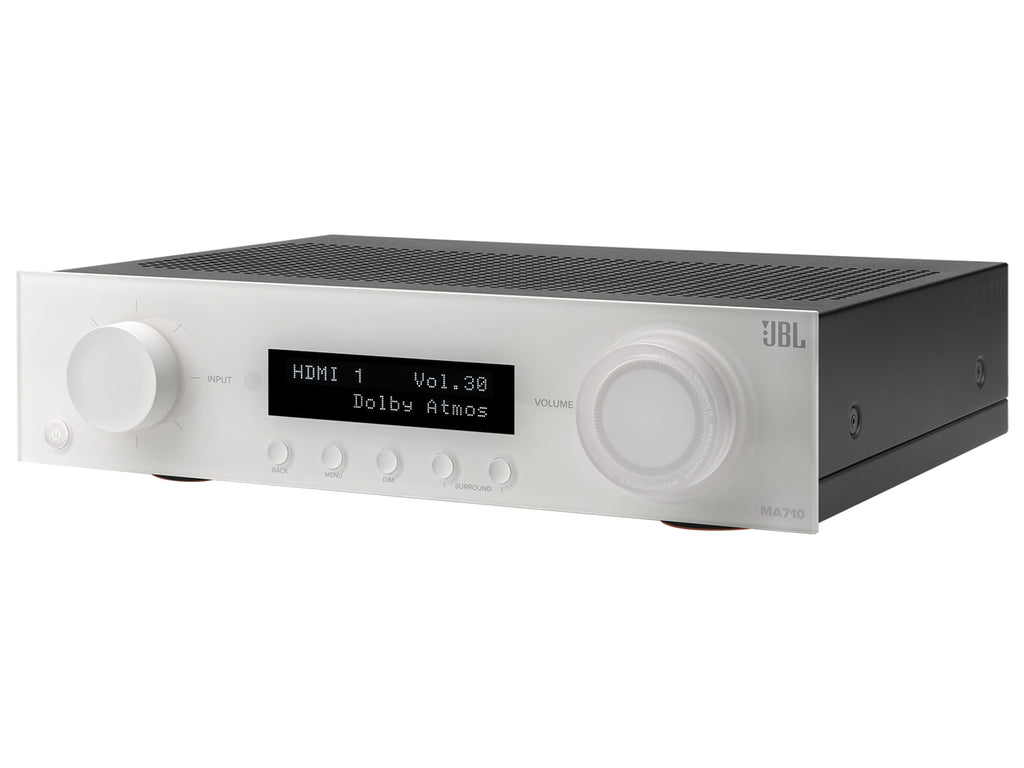

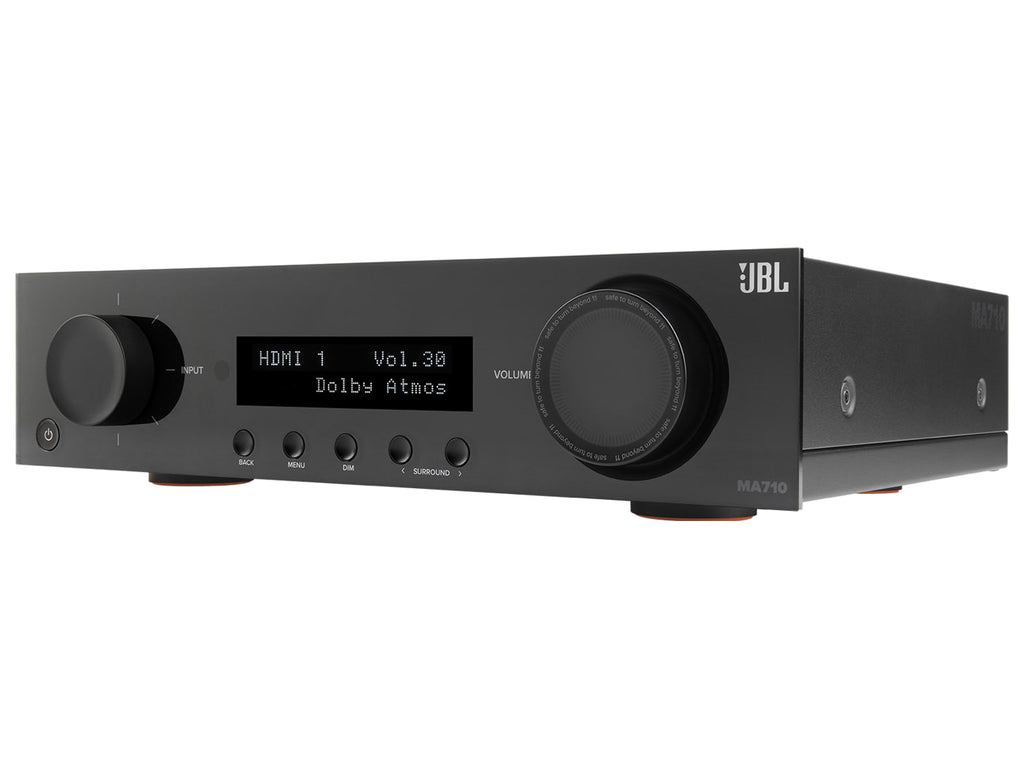

Height 109.2 mm, width 432 mm, depth 347.6 mm, figures that include the feet and loudspeaker terminals. Weight 6.3 kg. Maximum consumption 500 W, under 0.5 W in standby. The front is glass treated against fingerprints, with an LCD display; the finishes on sale are Black and White.
