Active Subwoofer with Rear Bass Reflex
The JBL L10cs is a powered subwoofer designed to enhance the depth of low frequencies in any audio system, be it a simple two-channel Hi-Fi setup or a sophisticated multi-channel home theater system.
Thanks to its integrated 250W RMS amplifier and 25cm woofer, this subwoofer guarantees excellent performance and impressive sound presence.
Elegant and Adaptable Design

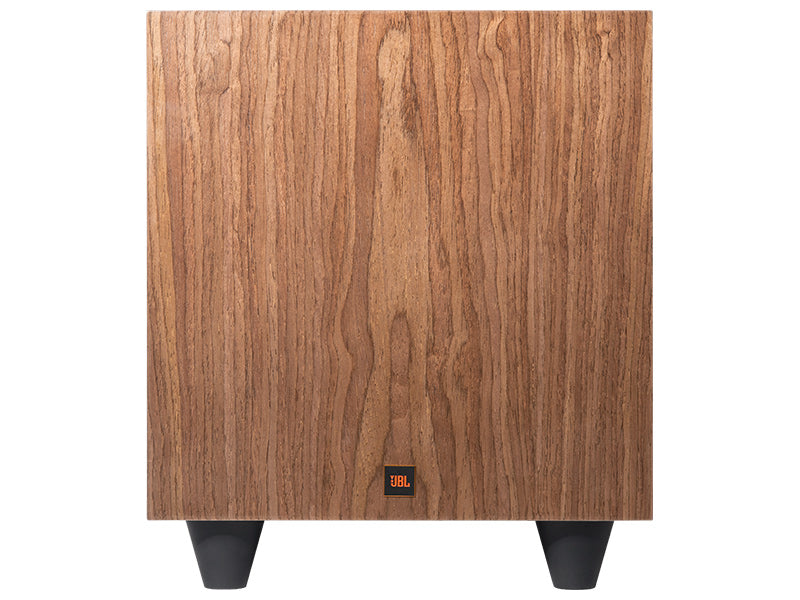

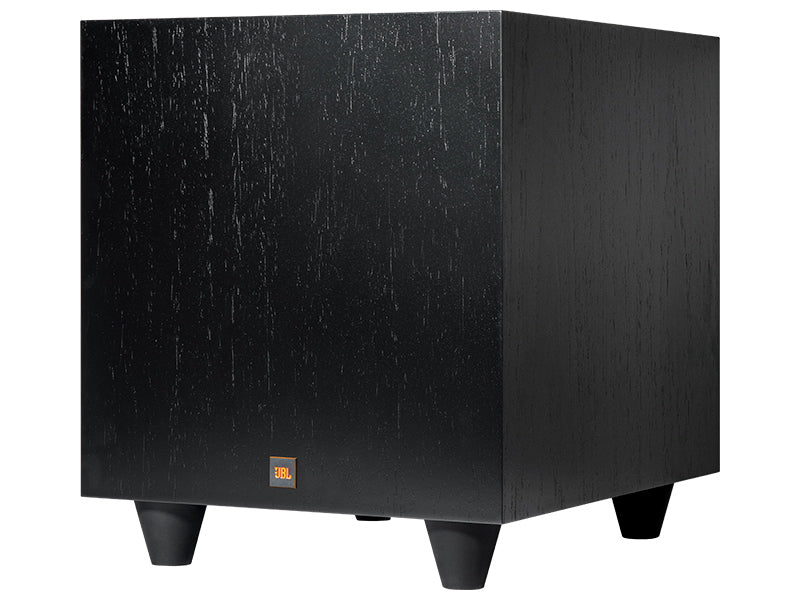

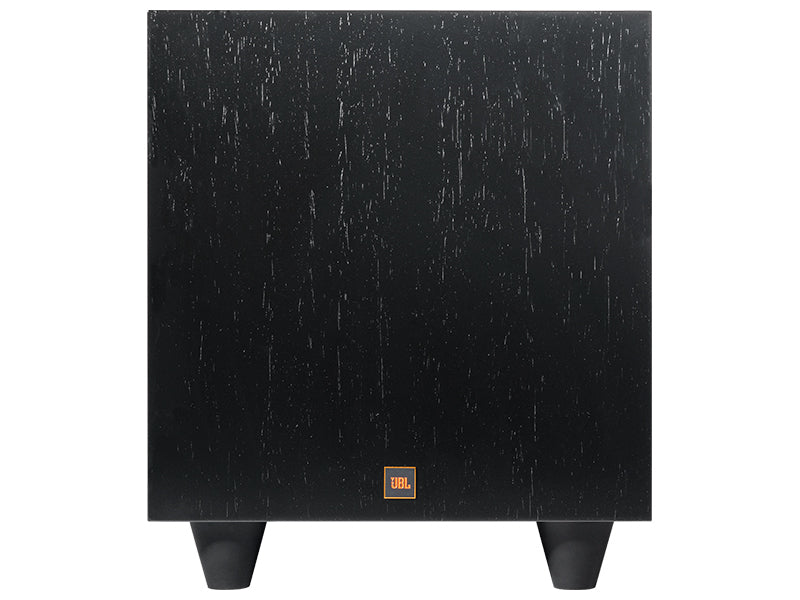

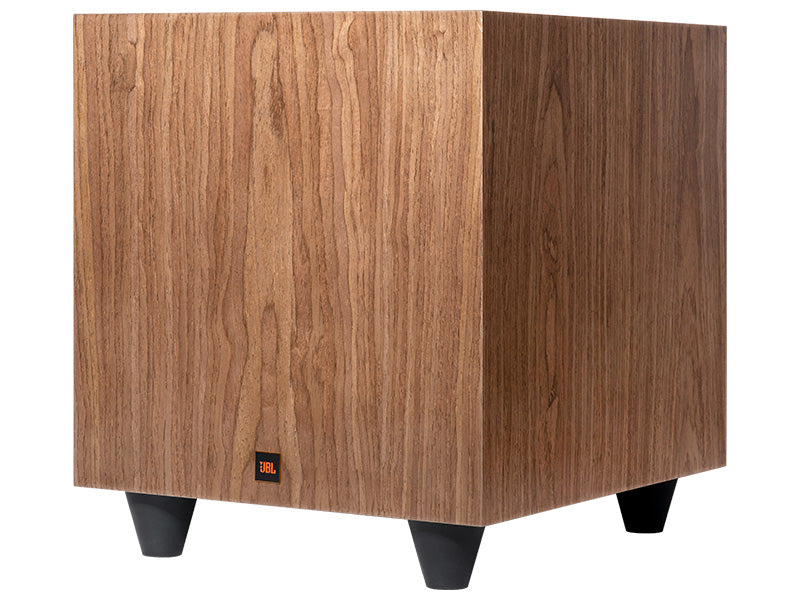

One of the most appreciated aspects of the JBL L10cs is its refined design. The real wood finish is available in black or natural walnut , allowing it to easily integrate into both modern and classic environments.

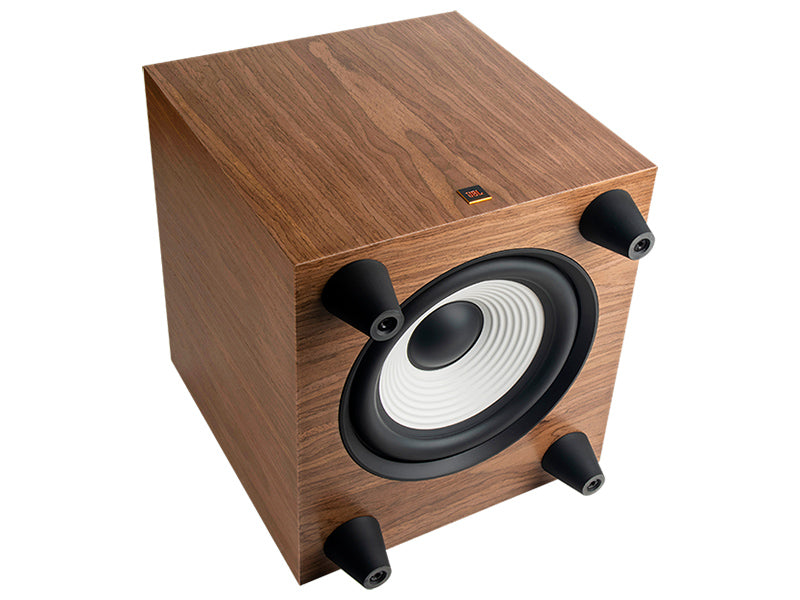

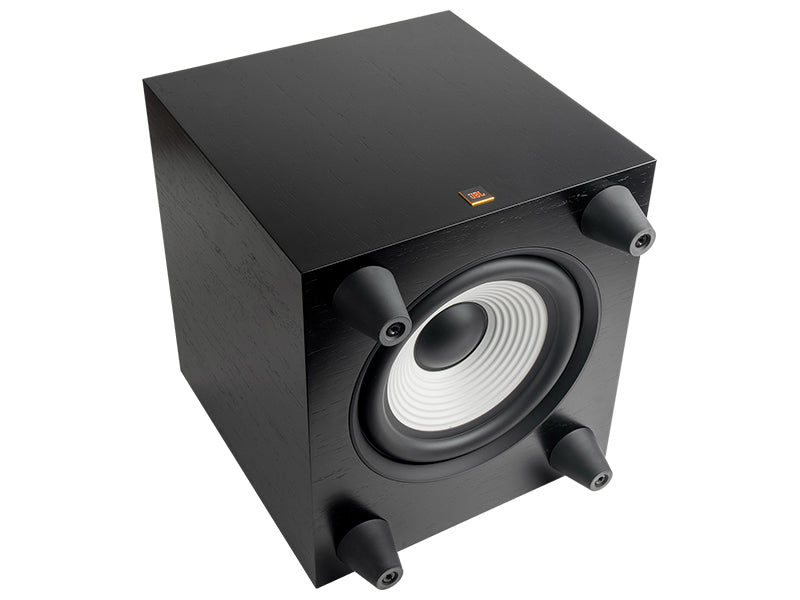

The 25cm woofer, with polycellulose cone, offers a perfect combination of aesthetics and performance.
Exceptional Audio Performance
The L10cs subwoofer offers a frequency response of 32Hz to 150Hz , allowing it to reproduce deep, defined bass, ideal for enriching your music or movie experience.
The rear bass reflex system allows for more precise reproduction of low frequencies, minimizing distortion and improving sound quality.
Total Frequency Control
With the JBL L10cs , you can adjust both the volume and the crossover frequency, allowing you to tailor the subwoofer's output to your sound preferences and room acoustics. The crossover is adjustable from 50 to 150Hz , with a slope of 24dB per octave, for optimal low-frequency management.
Convenience and Safety Features
A particularly useful feature is automatic on/off : the subwoofer activates when it detects an audio signal and automatically switches off when the signal is lost.
Additionally, the 0/180° phase switch allows you to optimize the synchronization between the subwoofer and other speakers, further improving clarity and sonic impact.
| Speaker
|
25cm polycellulose cone woofer |
| Type of operation
|
Bass reflex with double rear chord |
| Amplifier power
|
250W RMS / 500W peak |
| Frequency response
|
32Hz - 150Hz |
| Crossover frequency
|
50Hz - 150Hz (variable, 24dB/octave) |
| Adjustments/Controls
|
Volume, phase, crossover frequency |
| Entrances
|
LFE (RCA) |
| Diet
|
220-240V, 50/60Hz |
| Energy consumption
|
<0.5W (standby) / 335W (max) |
| Furniture finishing
|
Wood veneer, black/walnut essence |
| Dimensions (WxHxD)
|
390 x 335.4 x 395.2 mm |
| Weight
|
14.1 kg |
