The JBL 40H is a 2-way Dolby Atmos speaker designed to deliver a high-quality audio experience in advanced home theater systems.
Its air suspension configuration and advanced built-in technology make this speaker an excellent choice for those who want crystal-clear , detailed sound.
Design and Features

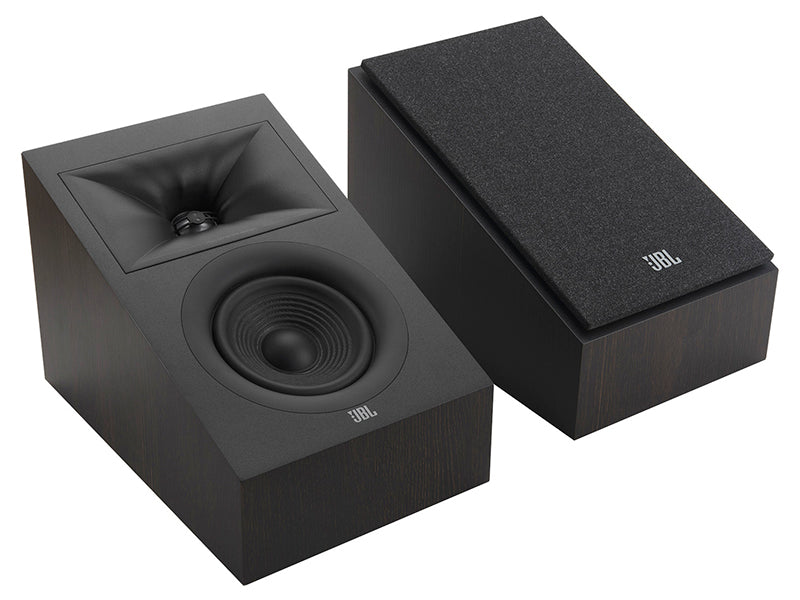

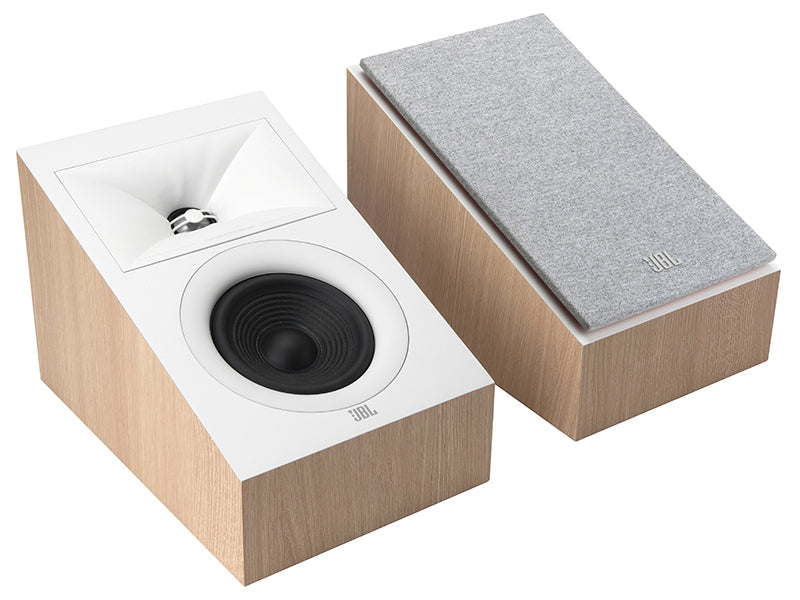

The speaker features a 11.4 cm woofer with a polycellulose cone, a light and resistant material, ideal for reproducing deep and precise bass.
It also integrates a 2.5cm anodized aluminum compression tweeter , supported by the Next Generation HDI (High Definition Imaging) waveguide system, which ensures uniform and precise diffusion of high frequencies.
Audio Performance
The JBL 40H can handle power ranging from 20 to 150 W , allowing for a wide dynamic range suitable for different amplifier configurations.
The frequency response, from 85 Hz to 25 kHz , ensures that every detail of the sound is faithfully reproduced, making the 40H perfect for both music and movie content.
Technical Specifications
| Typology
|
2-way Dolby Atmos speaker |
| Suspension system
|
Air suspension |
| Woofer
|
11.4 cm, Polycellulose cone |
| Tweeter
|
2.5 cm, anodized aluminum |
| HDI Technology
|
Yes, Next Generation HDI |
| Power
|
20-150 W |
| Frequency response
|
85 Hz - 25 kHz |
| Impedance
|
6 Ohm |
| Sensitivity
|
87 dB (2.83V @ 1m) |
| Dimensions (WxHxD)
|
18x17.6x27 cm |
| Weight
|
3.5 kg |
