Fyne Audio F703: 2.5-way floorstanding speakers with a 250 mm IsoFlare driver
The F703 is a floorstander from the F700 range and is made in the UK. It borrows engineering first developed for the F1 Series and applies it to a tower cabinet carrying 250 mm drive units. Sold as a pair.
The 250 mm IsoFlare point source unit is joined by a 250 mm woofer fitted with a multi-fibre cone. Both work inside a tuned cabinet with two cavities; the port faces the floor and incorporates the BassTrax diffuser for the low frequencies.
Key features
- 2.5-way system loaded by two cavities, with a port firing downwards onto a BassTrax Tractrix diffuser
- 250 mm IsoFlare point source unit: multi-fibre cone for bass and midrange, FyneFlute surround
- Compression tweeter using a 75 mm titanium dome and a ferrite magnet
- 250 mm woofer with multi-fibre cone and FyneFlute surround
- Low-loss passive crossover, bi-wirable and Cryo-Lite treated
- Frequency response 26 Hz - 26 kHz (-6 dB, typical in-room figure)
- Sensitivity 94 dB (2.83 V at 1 m), nominal impedance 8 ohm
Technical data
Suggested amplifier power runs from 20 to 250 W RMS; the speaker takes 125 W RMS continuously. The crossover points sit at 200 Hz and 850 Hz, using a second-order low-pass filter and a first-order high-pass filter. Each cabinet measures 1180 x 438 x 464 mm (height x width x depth) and weighs 48.3 kg: both figures refer to a single speaker.
Finishes

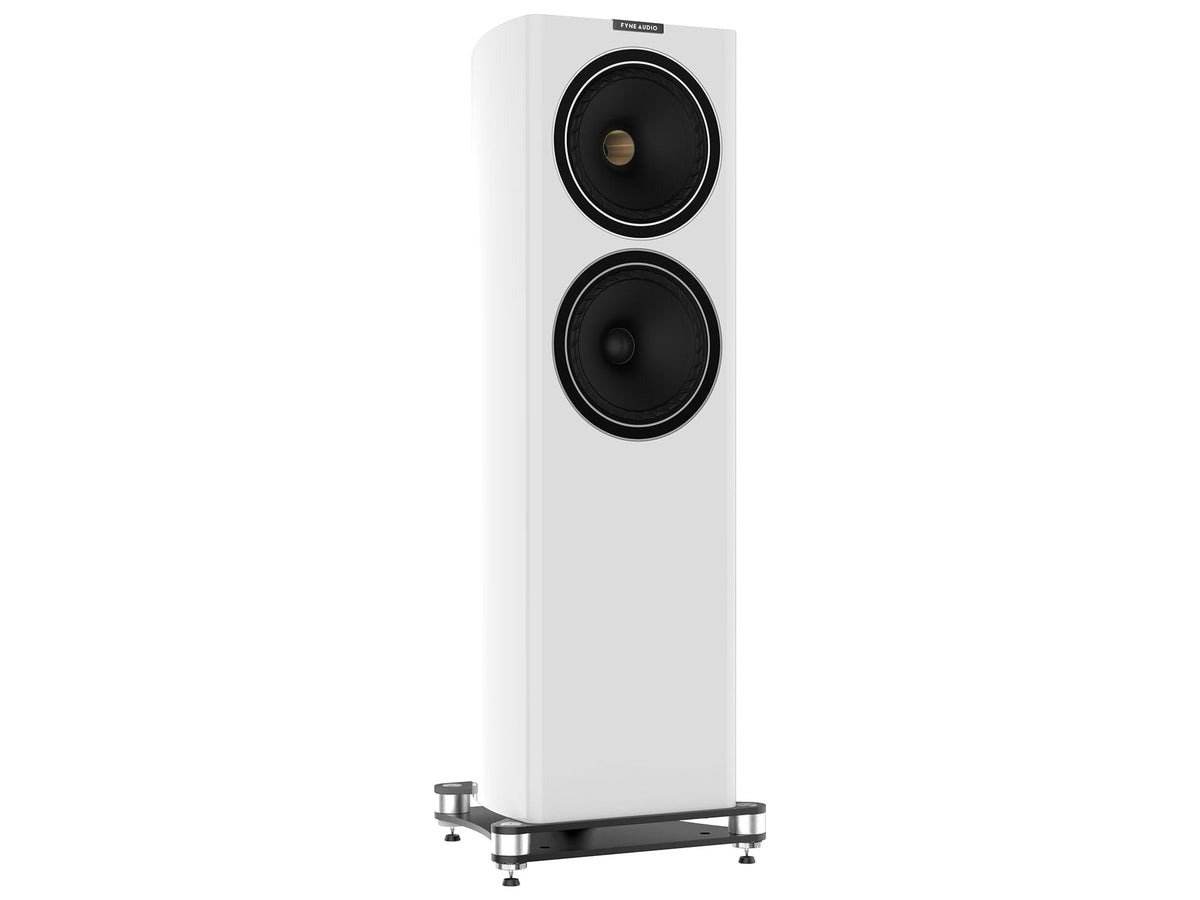

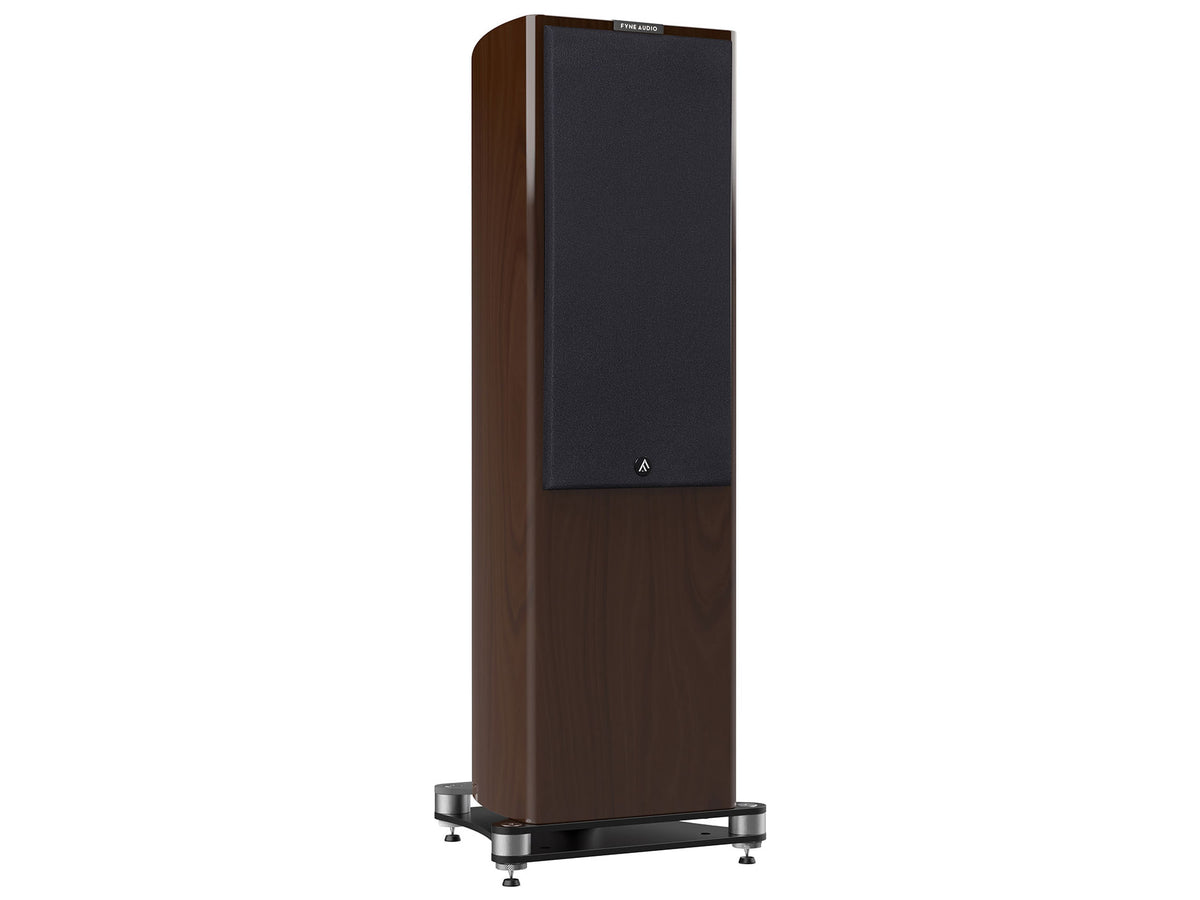

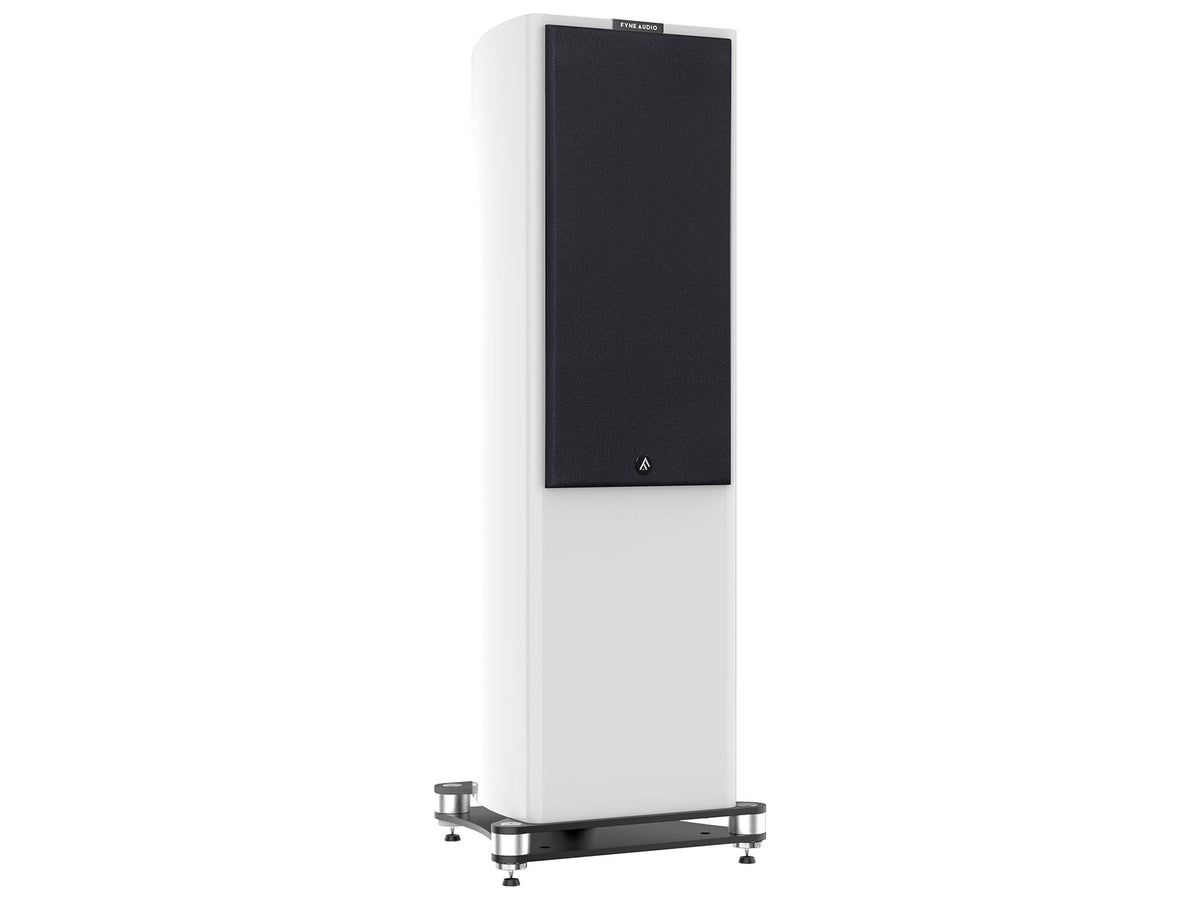

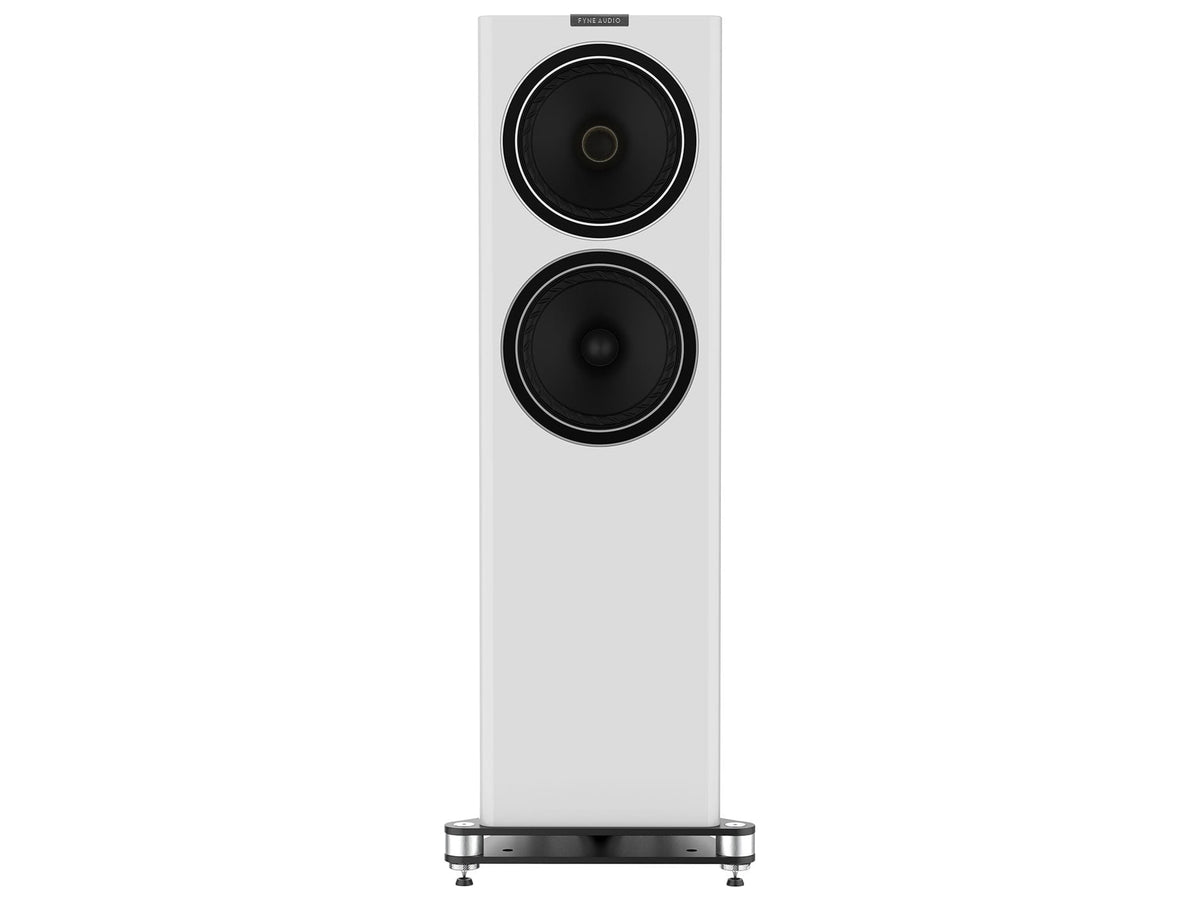

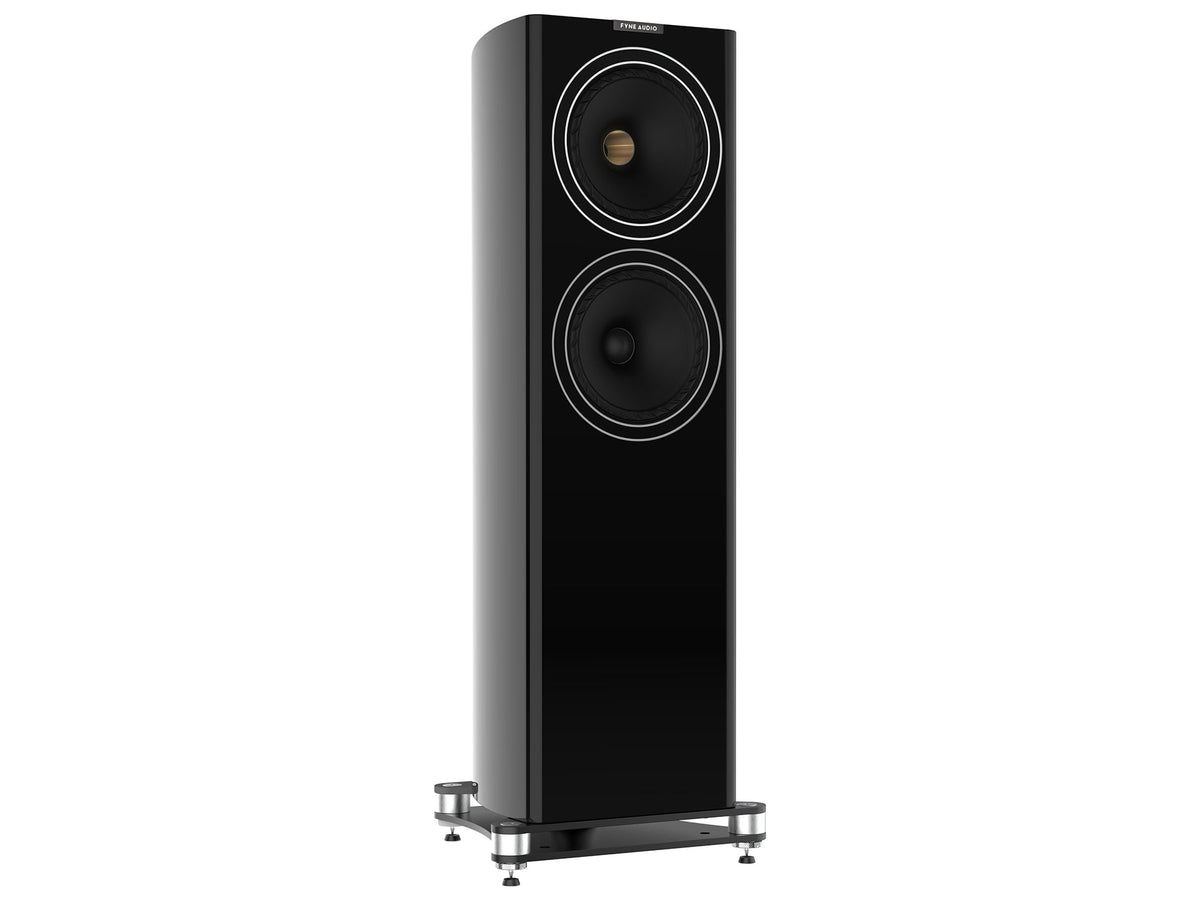

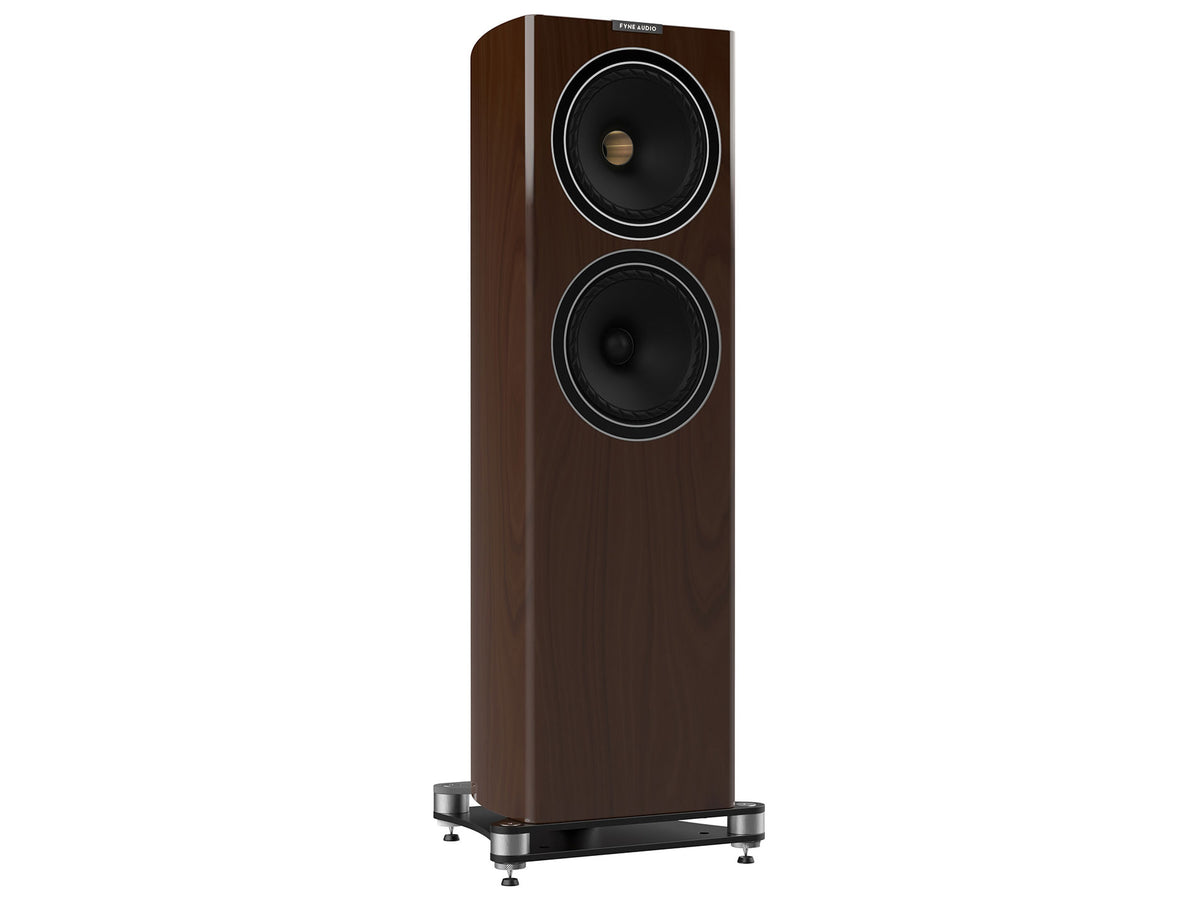

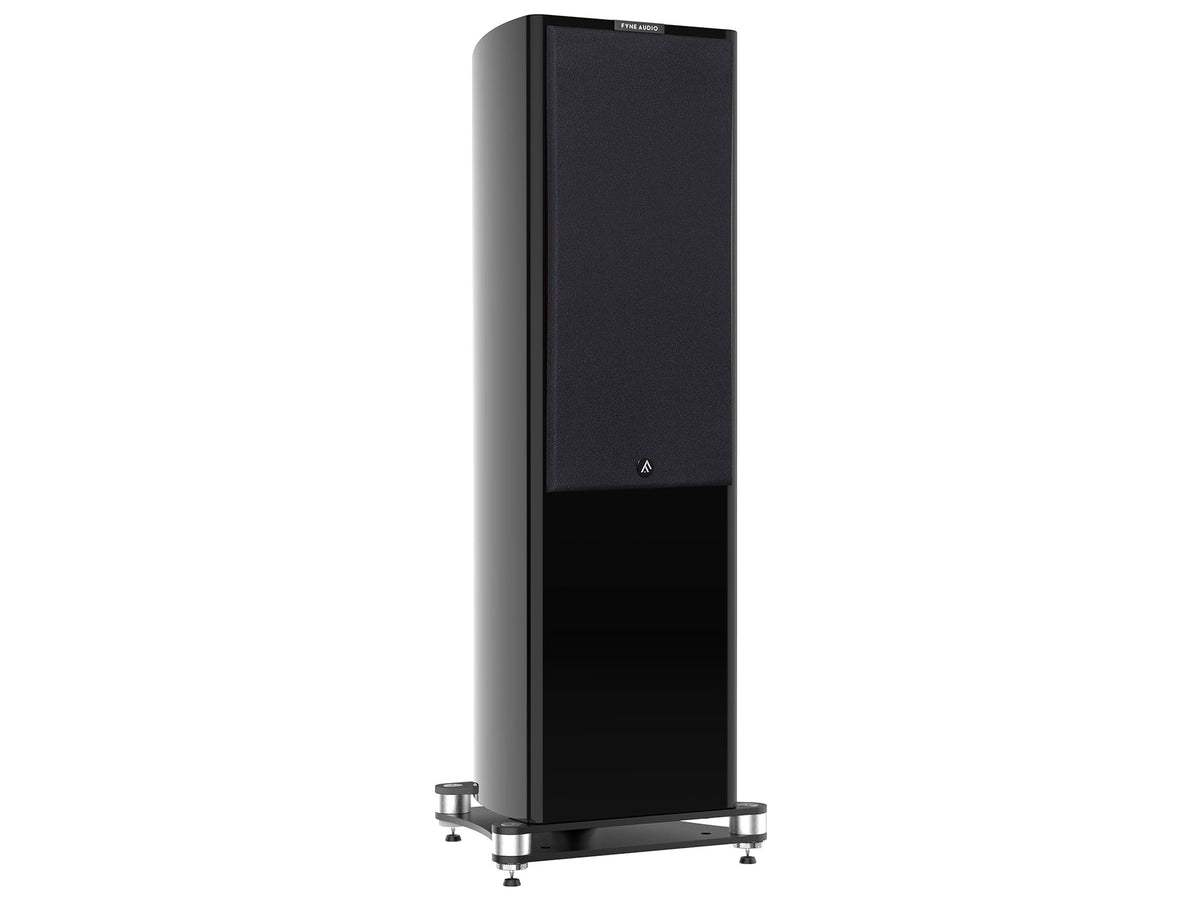

The F703 comes in three lacquered finishes: Walnut Piano Gloss, plus Black Piano Gloss and White Piano Gloss.
