Fyne Audio F502E LCR

Fyne Audio F502E LCR: 2.5-way LCR speaker built around a 200 mm IsoFlare driver

The Fyne Audio F502E LCR is a home theatre speaker that can serve as the left, centre or right channel, and Fyne Audio recommends it for the bigger rooms. It is sold singly.

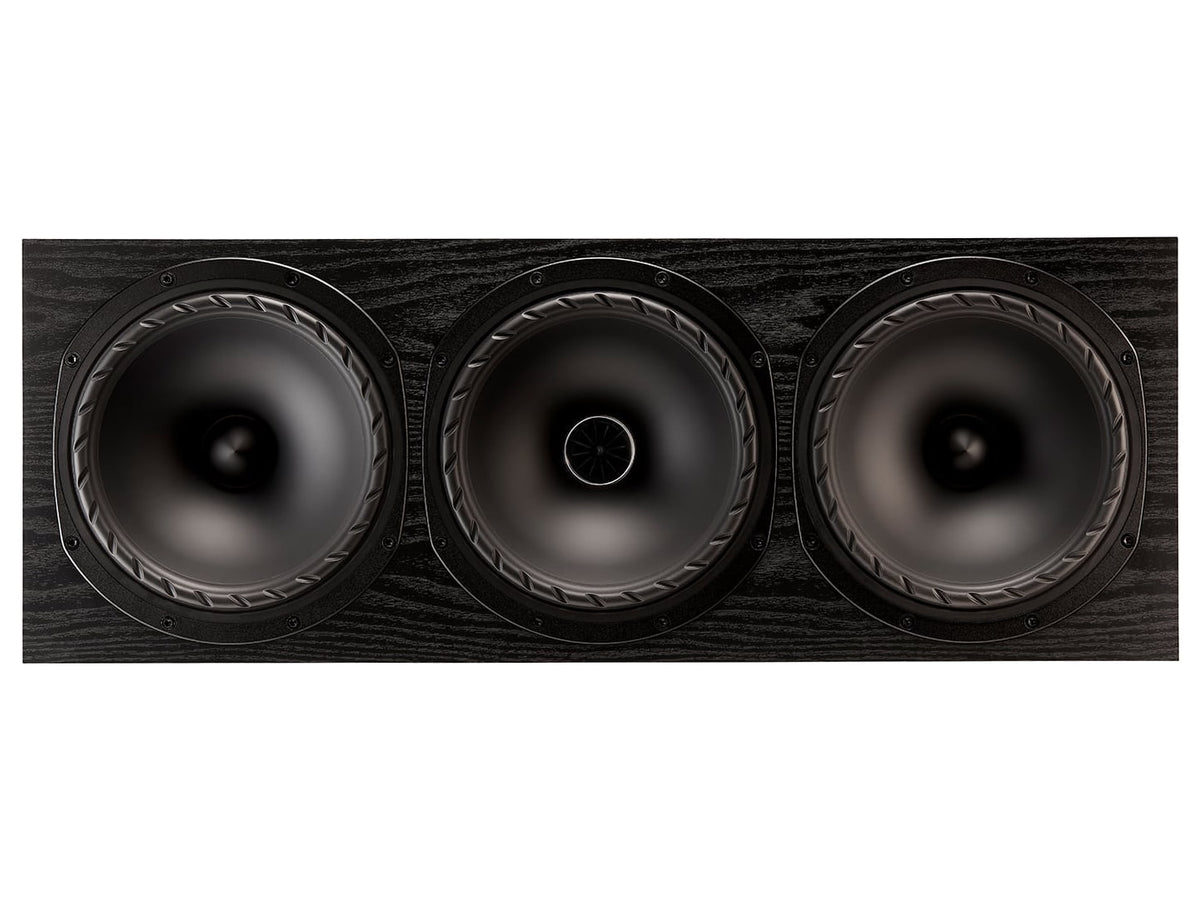

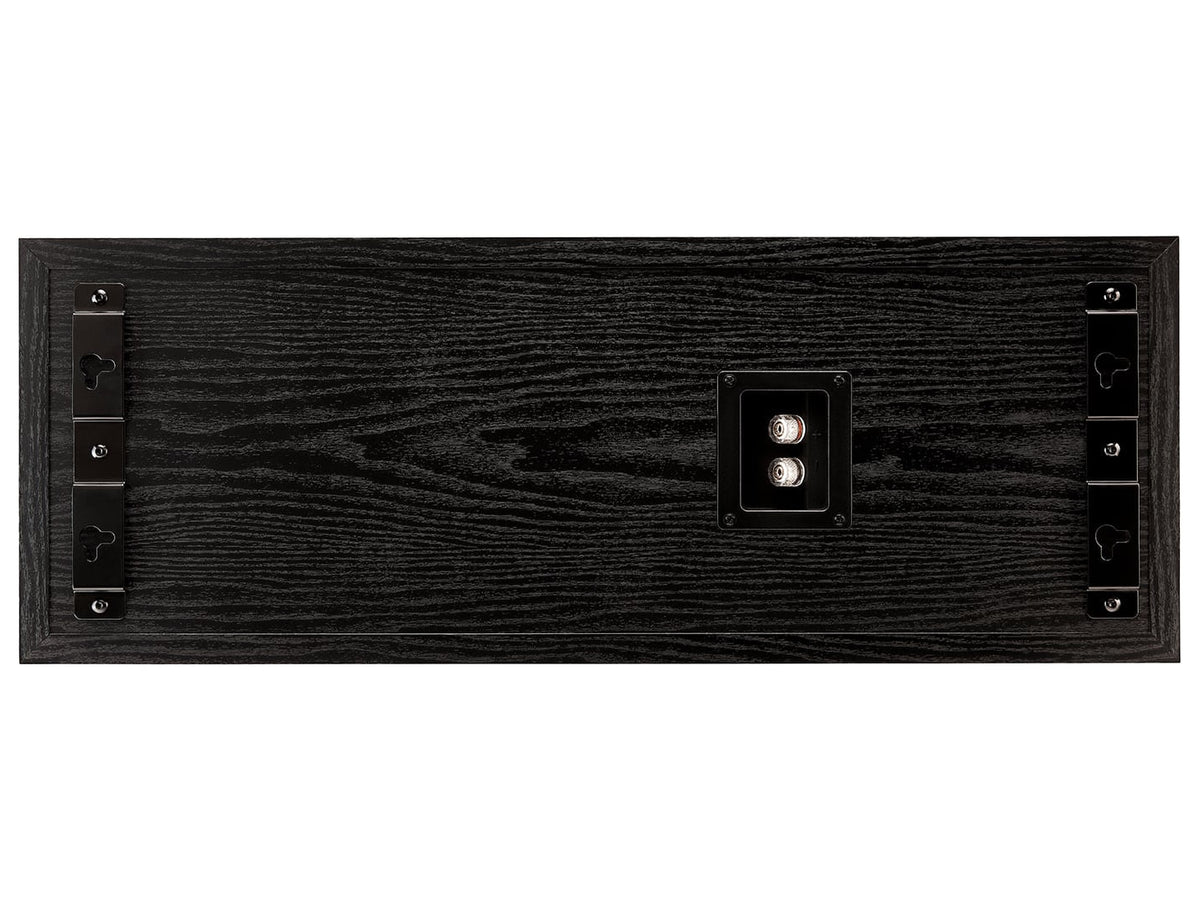

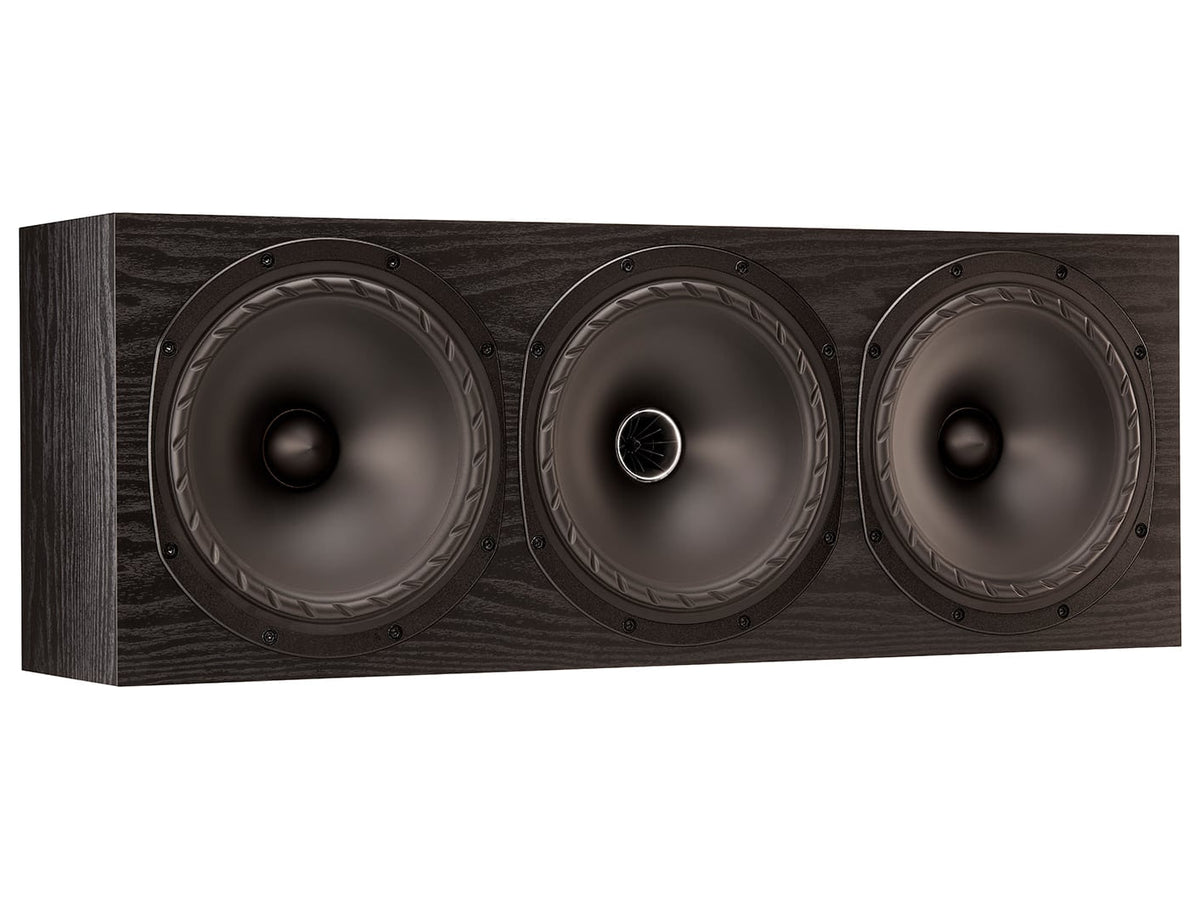

The cabinet holds a 200 mm IsoFlare unit, in which a multi-fibre cone covers bass and midrange and a 25 mm titanium-dome compression tweeter sits at its centre, together with a 200 mm bass driver and a passive radiator (ABR) of equal size that is damped electromagnetically. The speaker can be fixed to a wall or simply stand on a surface.

Key features

• 2.5-way system assisted by an auxiliary bass radiator (ABR)
• 200 mm IsoFlare driver with a 25 mm titanium compression tweeter
• 200 mm bass driver plus a 200 mm ABR
• Frequency response 48 Hz - 34 kHz (-6 dB, typical in-room figure)
• Sensitivity 92 dB (2.83 V at 1 m), nominal impedance 8 ohm
• Suggested amplifier output from 30 to 150 W RMS

Technical data

The crossover points are 250 Hz and 1.7 kHz, using a second-order low-pass section and a first-order high-pass section. Continuous power handling is 75 W RMS. The speaker measures 250 x 680 x 245 mm (height x width x depth) and has a net weight of 13.2 kg.

Finishes

The cabinet is vinyl-wrapped and is on sale in the Black Ash finish.
