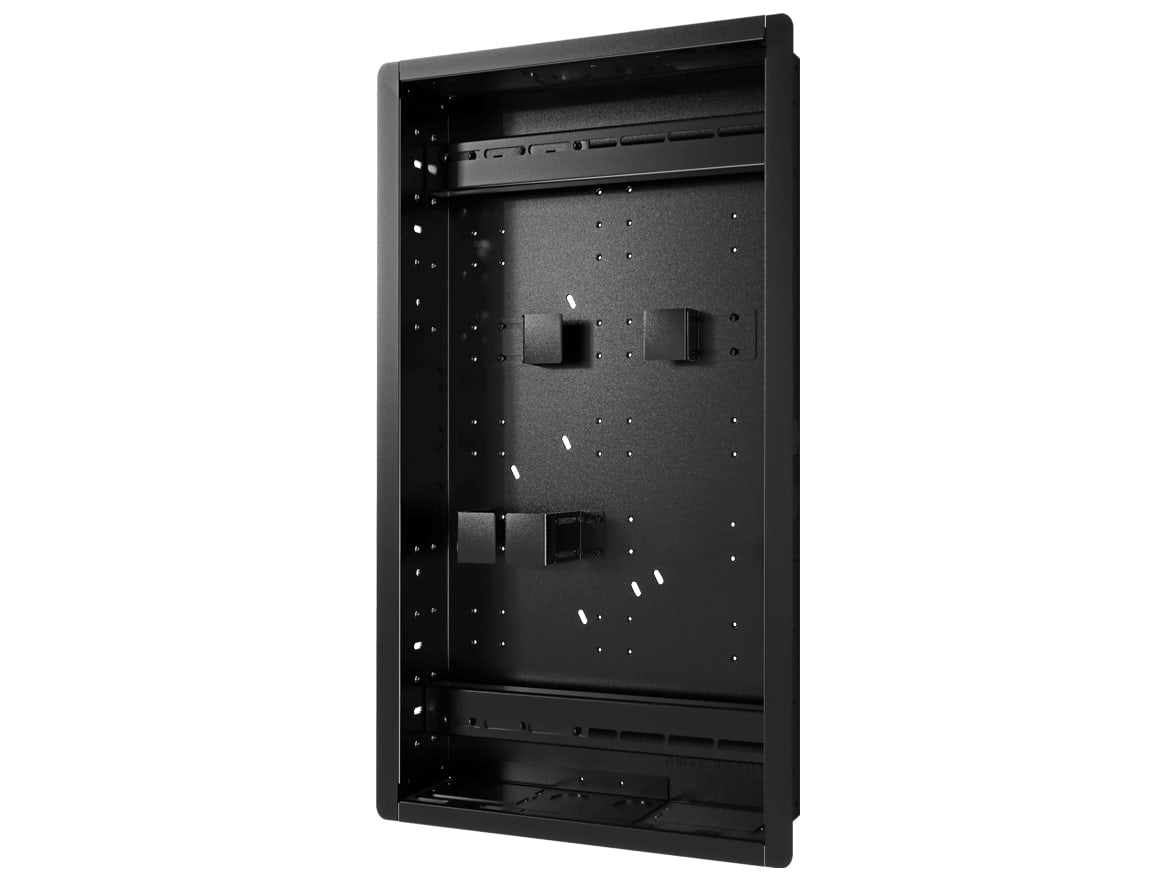

Multi-purpose recessed wall box for PS mounts
The WB forms a purpose-made recess behind the display: the screen ends up nearer to the finished wall, while AV devices, power supplies and cabling stay hidden inside the wall build-up. It is made for Future Automation PS mounts.
It is best fitted at first fix, before the wall is finished, which reserves the cavity and sets the display position. It mounts in one bay, between a pair of 14" studs, and the bracket can shift sideways by as much as 89 mm. For indoor use.
- WB21: takes the PS40; recessed size 532 by 353 by 96.5 mm
- WB26: takes the PS40 and PS55; 660 by 353 by 96.5 mm
- WB31: takes the PS40, PS55 and PS65; 787 by 353 by 96.5 mm
- Clamp brackets supplied for mini amplifiers, TV boxes and power conditioners; accessories up to 53.5 mm deep
- Metal trims around the edge and cable knock-outs on every side; optional cover panels, blank or vented
