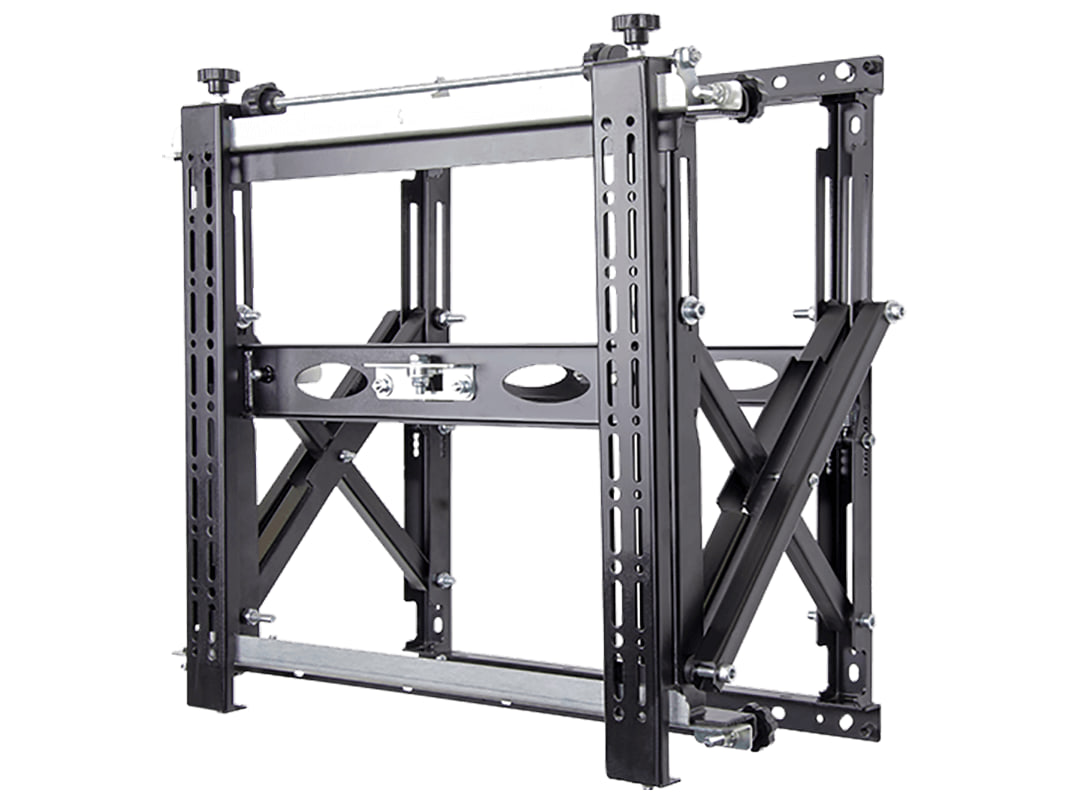

Modular bracket for video walls
VWM is the modular video wall bracket by Future Automation: it is a modular system that makes any display layout possible, with no limit on the number of configurations.
It opens and closes with a push, which makes it a good fit for recessed mounting and gives fast access behind the screens for servicing. The micro-adjustments, at 8 points, need no tools and are used to line the displays up with no step from one screen to the next. It can be fixed to a wall or onto a pole and takes screens in landscape or in portrait. Movement is manual. The bracket is for indoor use.
Key features
- Maximum load of 70 kg
- VESA patterns from 200 x 100 to 600 x 400 mm
- Screen fitted either in landscape or in portrait
- Fixed to a wall or onto a pole
- Screen height adjustable by as much as 15 mm
- Safety screws against unauthorised removal of the screens
- Every piece of mounting hardware is supplied
Dimensions
The bracket measures 542 x 620 x 94 mm. Its minimum depth off the wall is 101 mm and its maximum extension is 293 mm; with the VESA600 adapter both figures grow by 6 mm. The largest screen it can take is limited by weight alone.
Finish
The bracket is finished in RAL 9005 satin black.
