Quad Arm motorised TV bracket that turns to both sides

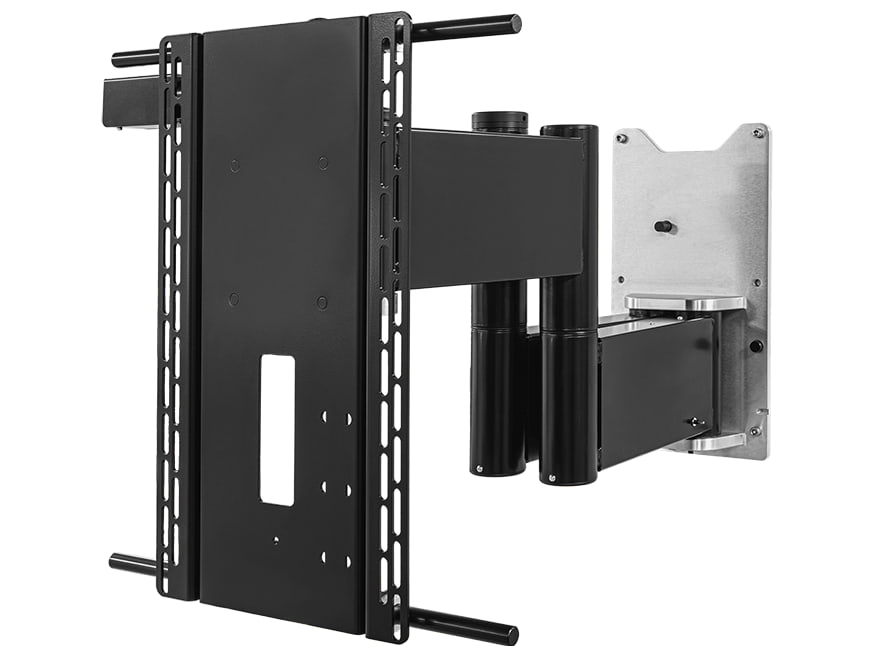

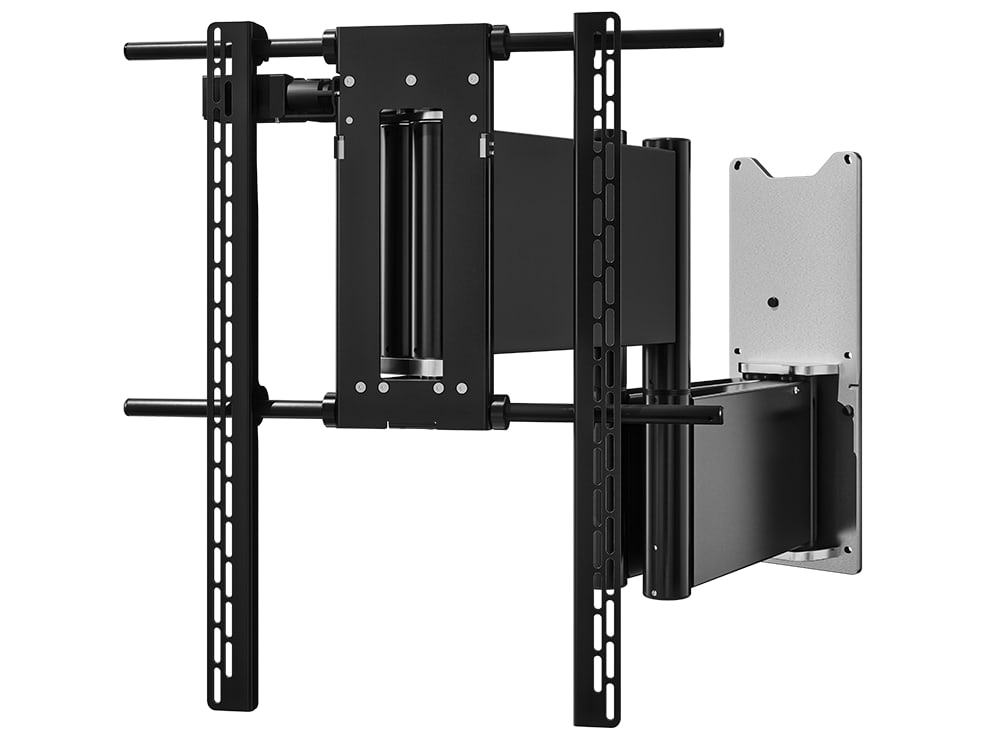

QA2 is a motorised wall bracket that brings the screen forward and turns it as far as 75° to each side, depending on how wide the screen is, so it can be watched from any point of the room.
Made for cases where several viewing positions are needed, it combines an overall rotation of 150° with a long reach and serves as many as three preset positions. The cables run inside the bracket, the movement can follow a path parallel to the wall (parallel track) and the wall plate is solid aluminium.
Key features
- Rotation of as much as 75° per side, 150° in total
- As many as 3 preset viewing positions
- Quiet, smooth movement with the parallel track function, noise level 52 dB
- Hidden cable management and electronics on board

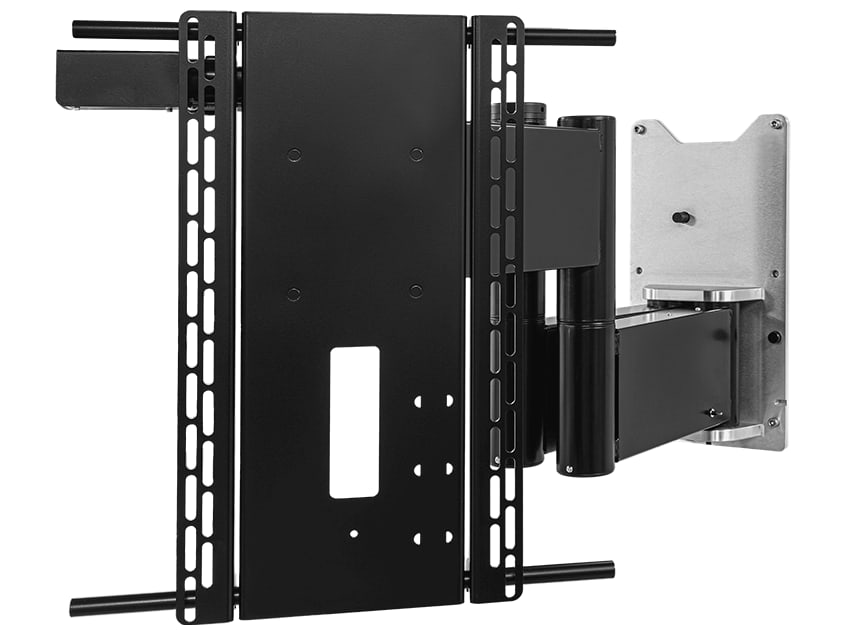

- QA2: 45 kg maximum load, 750 mm maximum reach from the wall, 130 mm depth from the wall

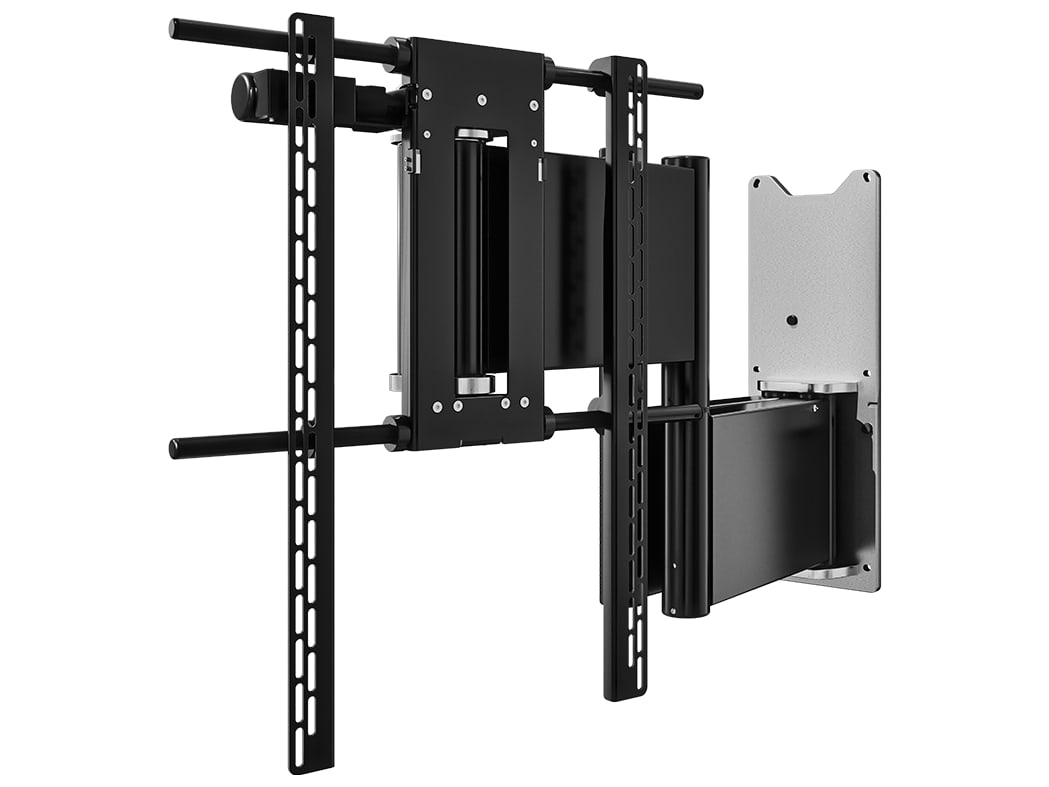

- QA2-60: heavy-duty version, 80 kg maximum load, 140 mm depth from the wall
- Black RAL 9005 and brushed aluminium finish, with custom finishes on request
Control and integration
The bracket is operated by IR, by contact closure or by RS232, and RF control can be had as an option: installers can therefore integrate it into new projects as well as into existing systems.
Installation
The Quad Arm range is delivered ready for installation: no assembly is needed and very little set-up time is spent on site. Each bracket is built by hand in the Future Automation facilities in the USA and Great Britain. QA2 and QA2-60 are intended for indoor installation.
