Manual articulated TV bracket with in-wall box, marine suitable
PS3219-2S-M combines a manual pull & swivel service bracket with an in-wall box: it gives quick access to the back of a screen, with no need to take it down, in marine installations indoors.

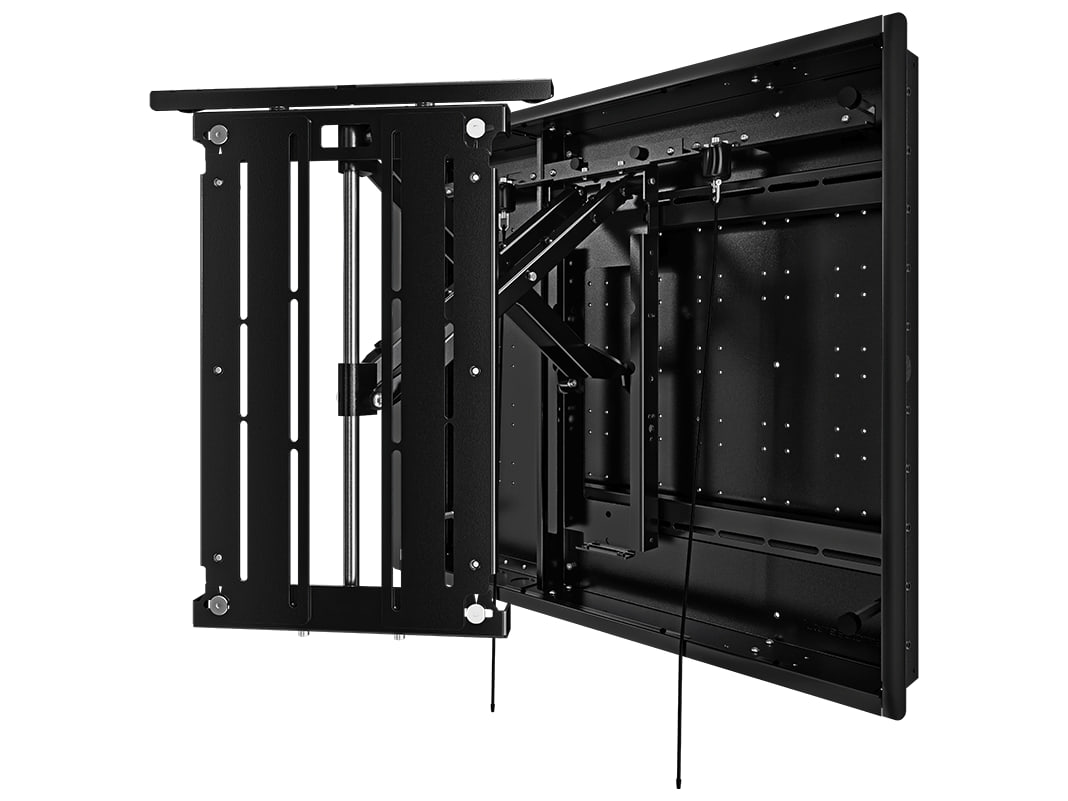

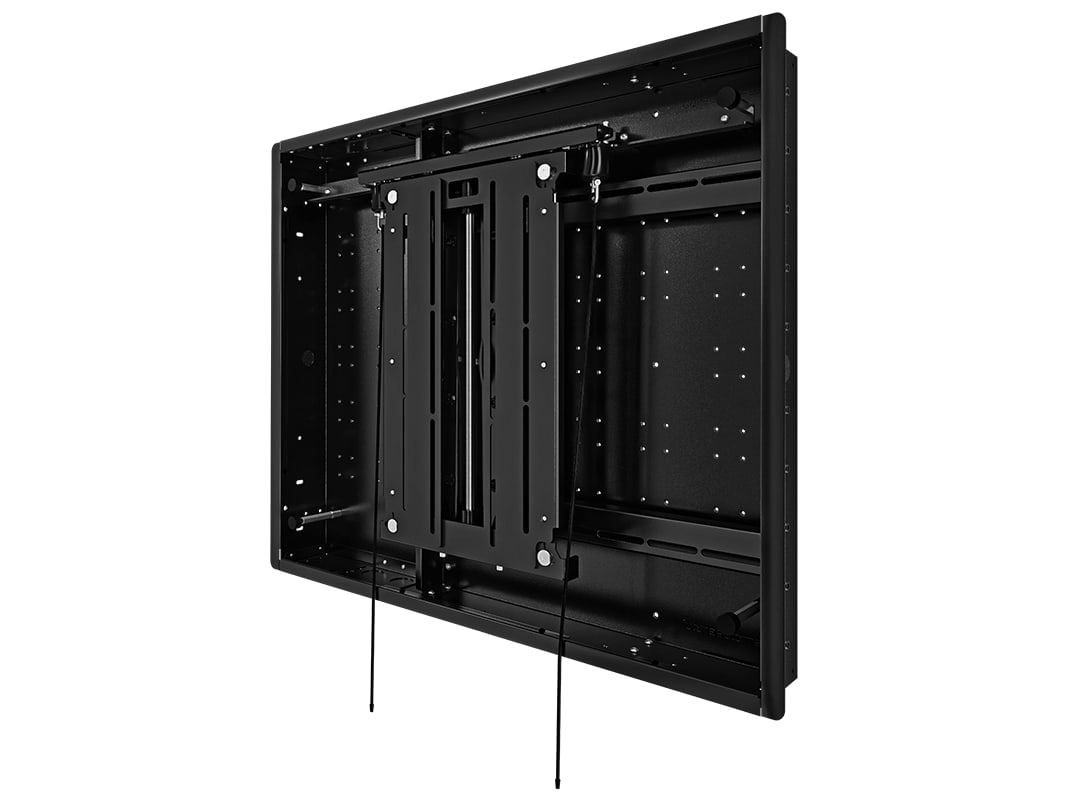

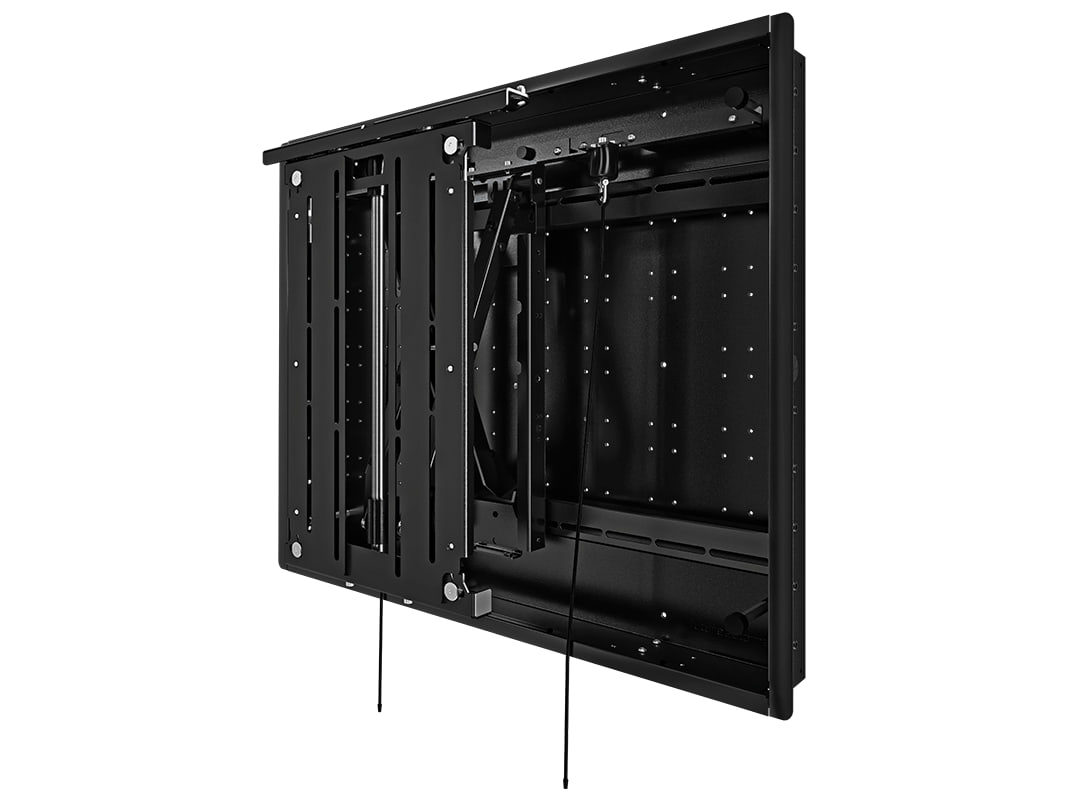

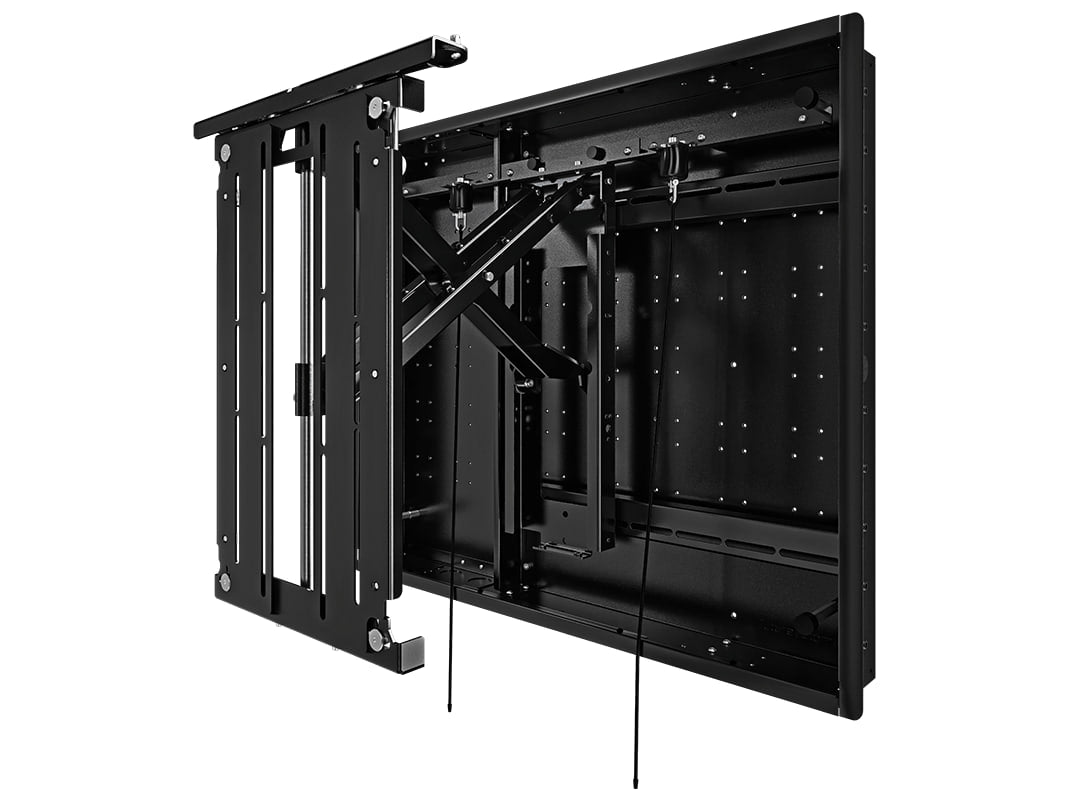

The recessed box lets the TV sit flush with the wall and hides the power supply and the connection points behind the screen. The spring-loaded catches on the upper part of the bracket are released by pulling the cords: the bracket can then move forward and swivel freely, opening the way to the display inputs and outputs and to AV equipment mounted behind it. Before the bracket is pushed back, the cords have to be fastened to the bottom rear edge of the screen. After servicing, the marine locking system keeps the TV firmly against the box, so it stays still at sea.
Key features
- Manual movement, with up to 50° of rotation per side depending on how wide the screen is
- Extends up to 244 mm off the wall, minimum depth of 5 mm
- Load up to 60 kg
- Bolt patterns from 100 to 400 mm, in height and in width
- Built-in anchors for cable ties
- In-wall box measuring 760 x 483 x 97 mm
Installation
The largest screen size depends on the weight and on the rotation angle wanted. The finish is satin black RAL 9005, and custom finishes are possible.
Environments
PS3219-2S-M is for indoor use and is marine suitable indoors only; it is not suited to outdoor use.
