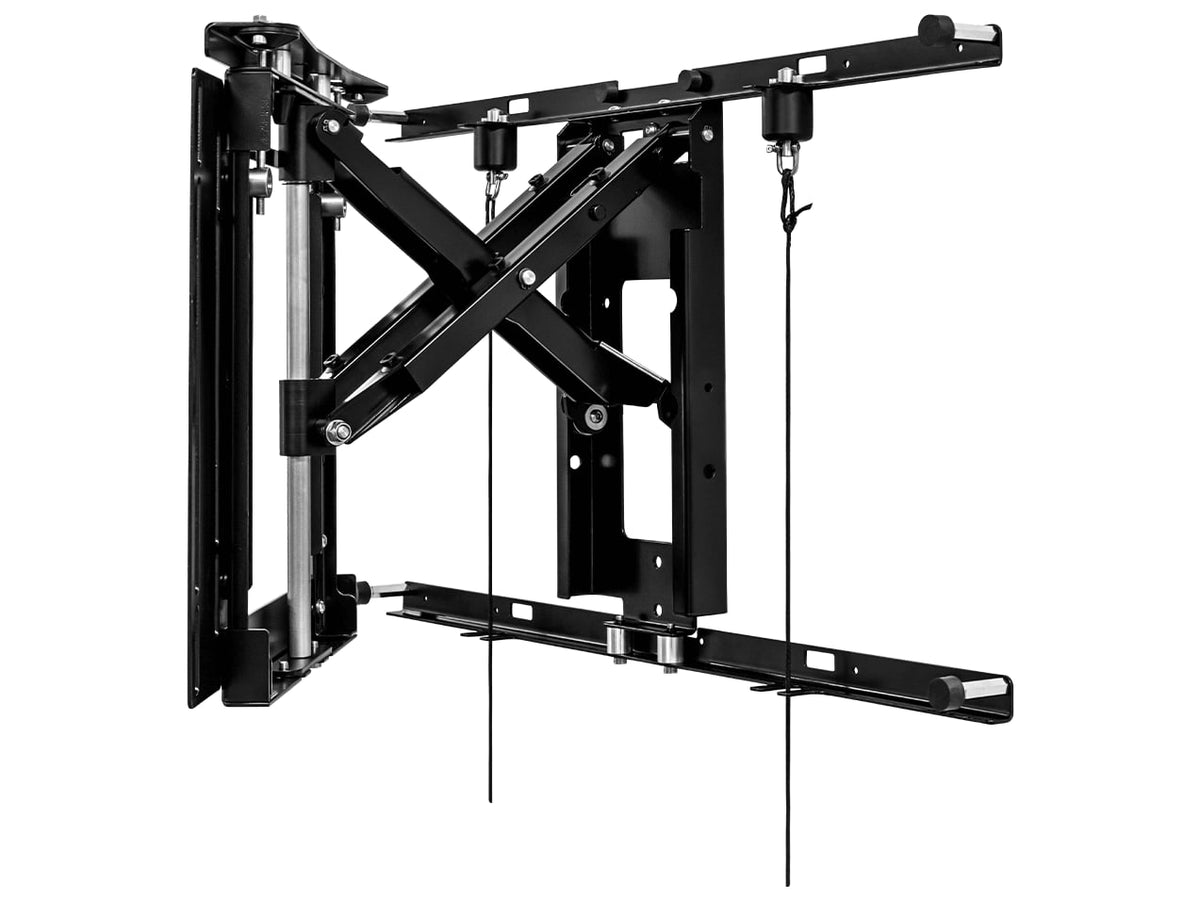

Manual pull & swivel service bracket for indoor marine use
PS-M is the Future Automation bracket giving quick access to the back of a screen for servicing and maintenance, with no need to take it off the wall, in marine installations indoors.
The spring-loaded catches on the upper part of the bracket are released by pulling the cords: the bracket can then move forward and swivel freely, opening the way to the display inputs and outputs and to AV equipment mounted behind it. Before the bracket is pushed back, the cords have to be fastened to the bottom rear edge of the screen. After servicing, the marine locking system keeps the TV firmly against the wall, so it stays still at sea.
Key features
- Scissor arm for safe, smooth movement
- Adjustable buffers that steady the screen corners
- Routing bosses that lead the catch cords out towards the screen edges
- Minimum depth off the wall of 56 mm, or 91 mm for PS80-M
- Load of 60 kg, or 120 kg for PS80-M
- Two-way rotation: up to 50° for PS32-M, PS55-M and PS65-M, 45° for PS40-M, 40° for PS80-M
- Satin black RAL 9005 finish, with custom finishes possible
Available sizes
PS40-M is for 40" to 75" screens and extends up to 400 mm off the wall; PS55-M is for 55" to 75" screens, with 500 mm; PS65-M is for 65" to 75" screens, with 595 mm. PS32-M extends up to 300 mm and PS80-M up to 569 mm. Bolt patterns reach 400 x 400 mm, and 800 x 700 mm on PS80-M. The largest screen size depends on the weight and on the rotation angle wanted.
Environments
PS-M is for indoor use and is marine suitable indoors only; it is not suited to outdoor use.
