Side-hinged TV wall bracket developed for boats

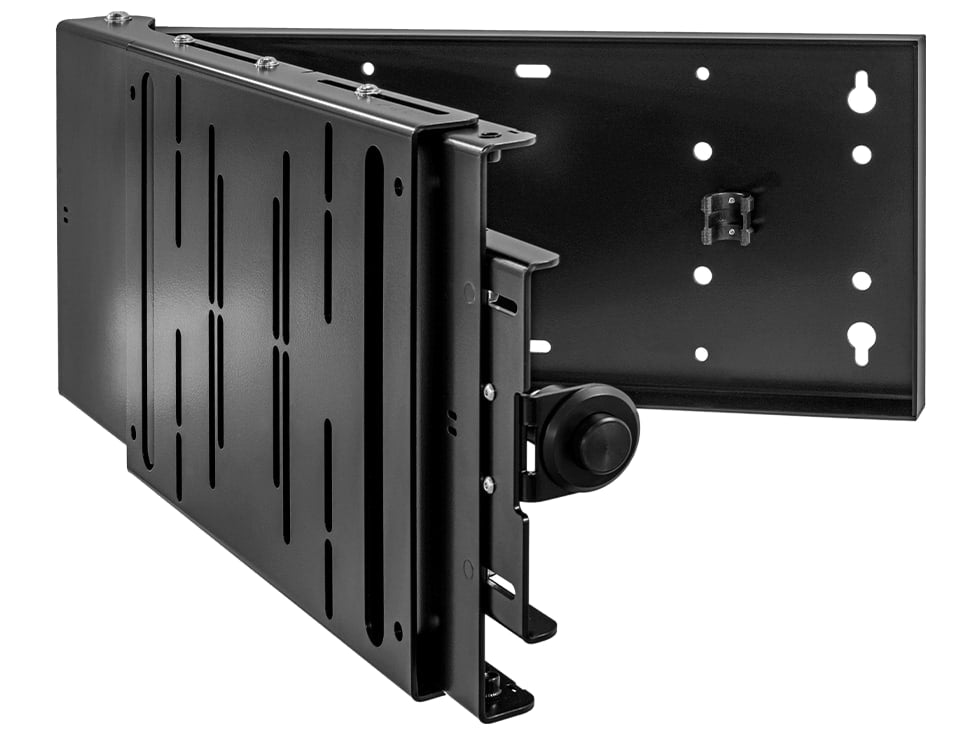

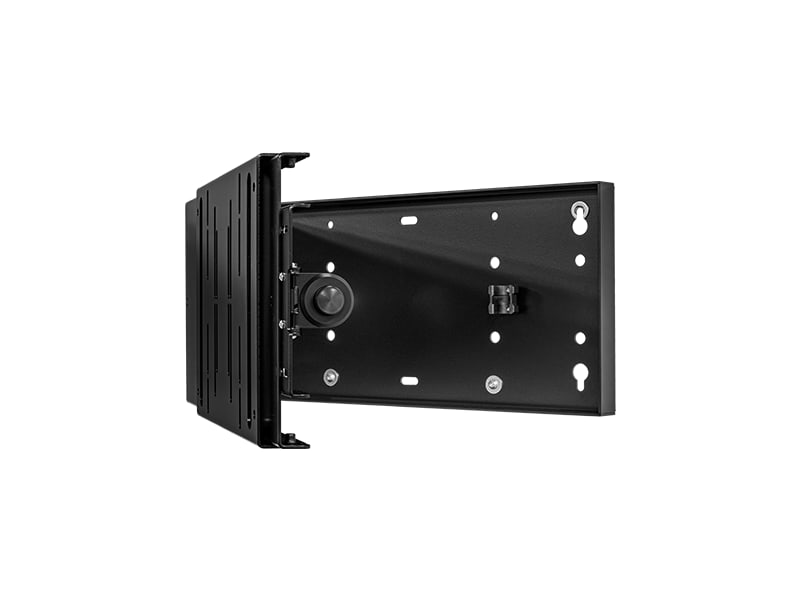

MSH is a manual bracket that Future Automation developed for the marine sector: it fixes the screen firmly to the wall and swings it on a side hinge to find the best viewing angle.

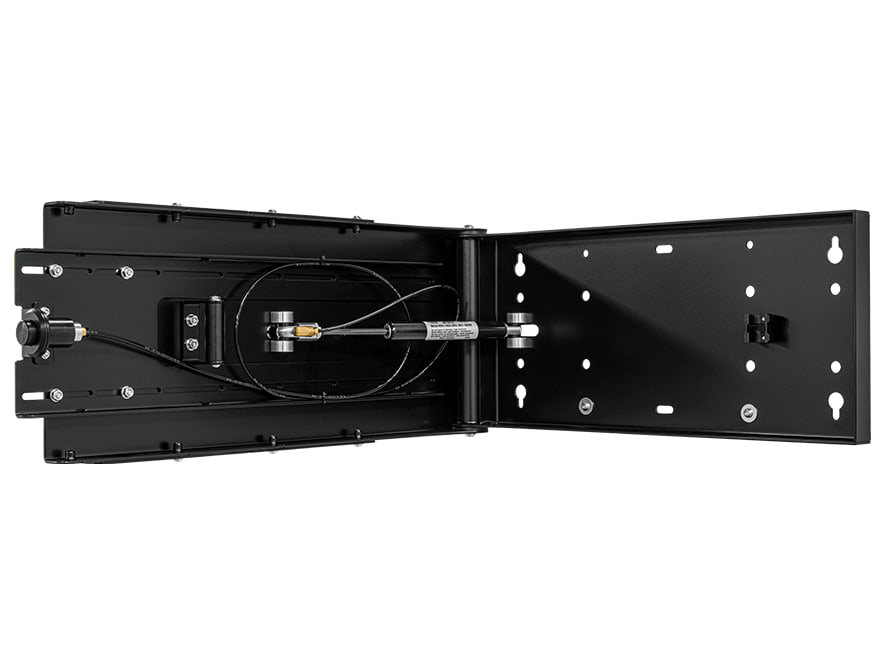

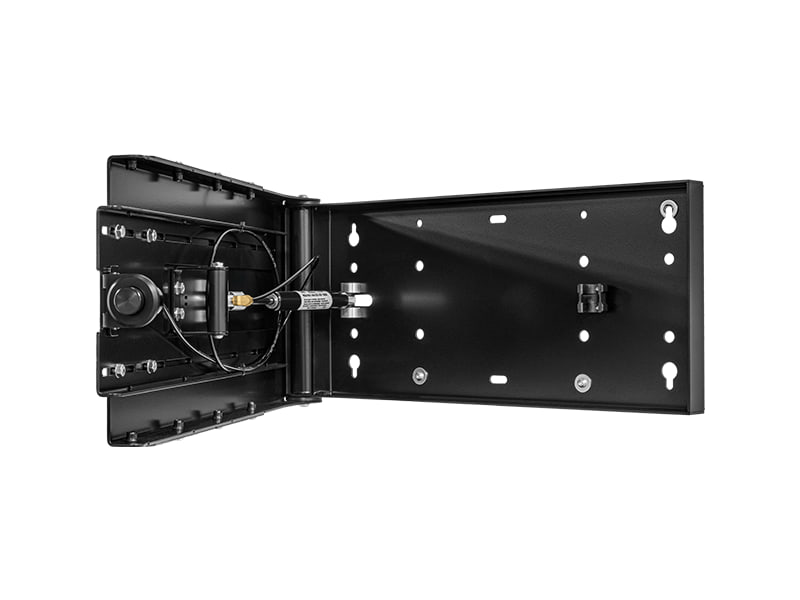

At the press of a button, a lockable gas spring holds the screen still at any point of its travel, as far as 90°. A further catch keeps the bracket in place when it is closed against the wall, which adds stability.
Key features
- Rotation of as much as 90° to one side only, clockwise or counter-clockwise
- Lockable gas spring operated by a button
- Extra catch for the closed position
- 40 kg maximum load
- VESA 200, 300 and 400 fixings
- 80 mm minimum depth from the wall
- Satin black RAL 9005 finish, with custom finishes on request
Available sizes
MSH-1 is recommended for 27" to 43" screens no wider than 1100 mm; its maximum reach from the wall to the middle of the screen is 550 mm and the bracket measures 700 x 600 mm, with a depth of 80 mm. MSH-2 takes screens no wider than 1400 mm, reaches 700 mm to the middle of the screen and measures 1000 x 600 mm, with a depth of 80 mm.
Environments
MSH is suitable for marine use, indoors only; it is not meant for installation in the open air. The bracket is restrained both when it is closed and when it is open.
