MLI heavy duty lift for ceiling-mounted TVs, inverted and sized for screens from 32" up to 75"

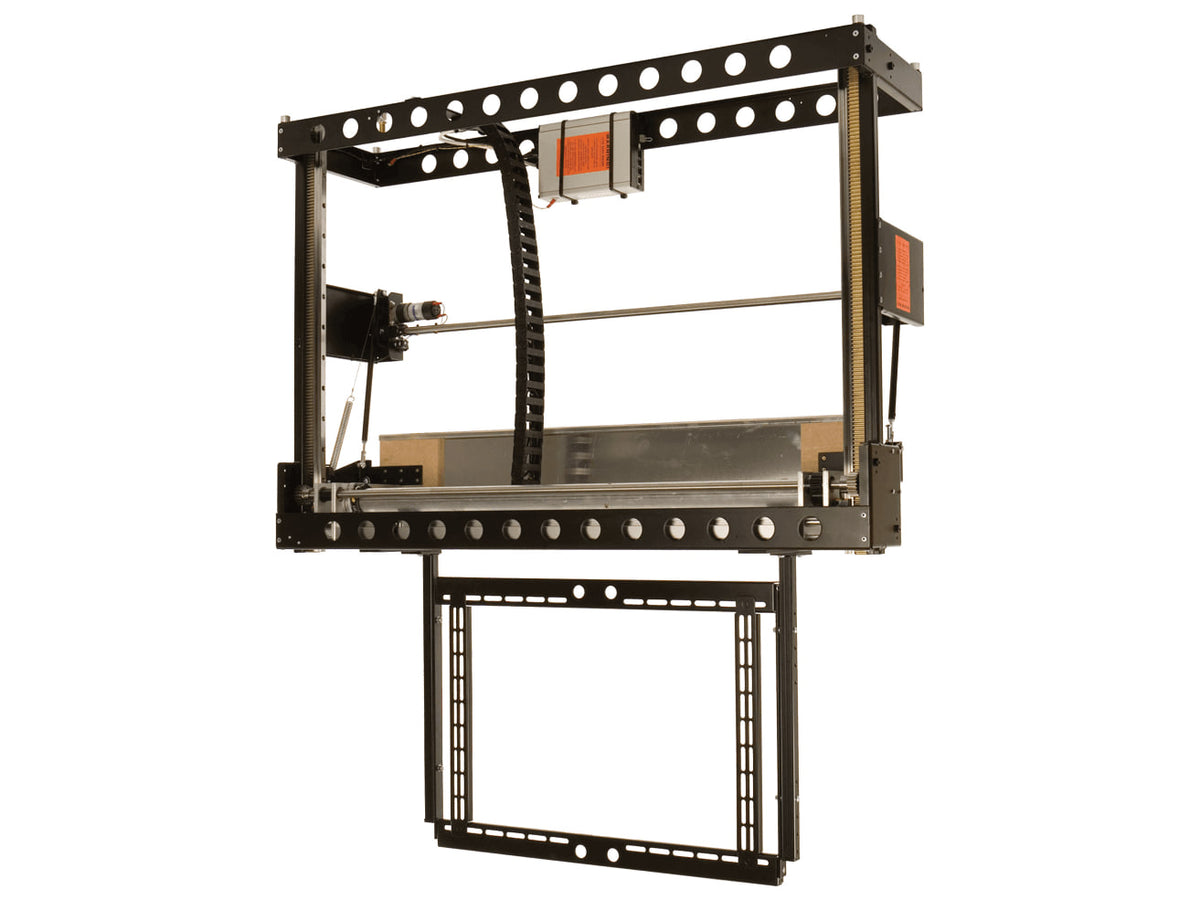

MLI is the heavy duty inverted TV lift by Future Automation for screens between 32" and 75": a motorised mechanism that hides even a larger-format television in the ceiling cavity and lowers it for viewing.
It is installed in the cavity above the ceiling and uses the drop & roll flap, the flap to which Future Automation credits the look of the installation. Lifting is handled by a positively driven rack, which the manufacturer describes as secure and robust, paired with a guide system that is accurate and runs smoothly.
Key features
- Motorised heavy duty inverted TV lift for a ceiling cavity
- Mechanism with drop & roll flap
- Made to measure around the exact dimensions of the screen
- Complete cable management
- Positively driven rack with accurate, smooth-running guides
- Maximum screen depth 155 mm, maximum weight 50 kg
- Declared noise level: 65 dB
Control and integration
MLI is controlled through IR, RS232 and contact closure, with RF control offered as an option. For deeper televisions and for speakers, Future Automation provides frames made to order.
Environments
The mechanism is rated for indoor use and is suitable for marine installation. As it is built around the individual screen, the dimensions and weight of the shipment are variable. For design and fitting, the manufacturer makes a technical sheet and an instruction manual available.
