Compact motorised TV lift for 19" to 40" screens

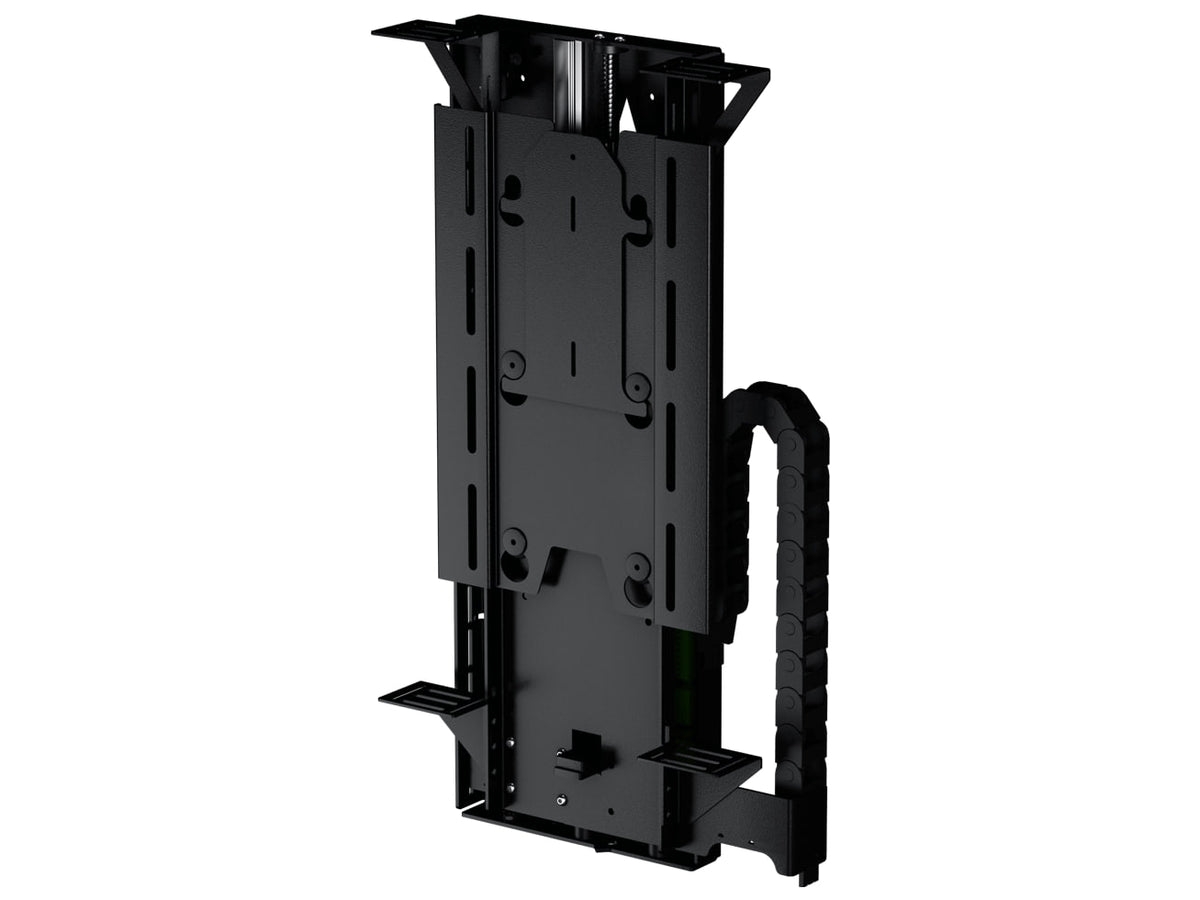

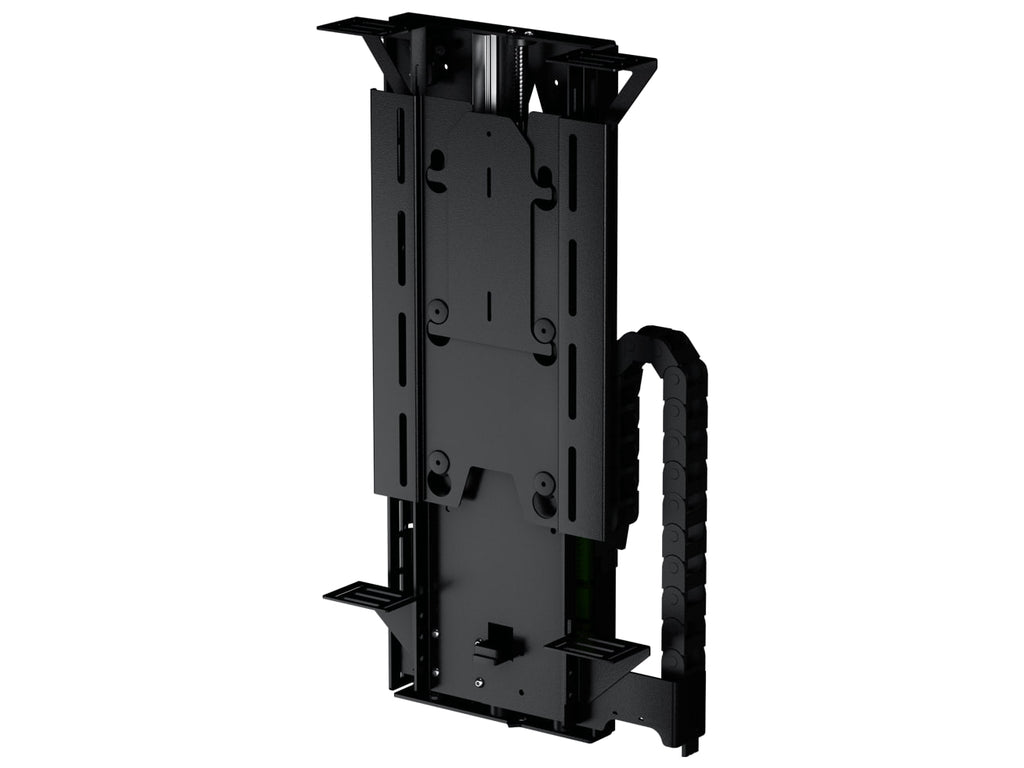

The LSL, short for Lift System Light, sits at the small end of the Future Automation TV lift family: it hides small-format televisions inside a cabinet and raises them when wanted, comes in three sizes and carries 25 kg at most.
It suits places such as a kitchen island, a home office or a boardroom. The lift is delivered ready to fit, with no assembly needed, and includes fixings for a box enclosure as well as for a push flap, so either lid solution can be chosen.
Key features
- Three sizes, for screens no taller than 410 mm, 524 mm or 599 mm
- Maximum load: 25 kg, reduced to 16 kg in marine installations
- 24 V DC motor, fast and quiet; stated noise level 58 dB
- Built-in cable management
- Black painted finish, RAL 9005
- 12 V power output; runs on a 240 V or 110 V supply
Available sizes
The LSL1 takes screens with a height of 410 mm at most (about 19"-32") and needs 580 mm of internal cabinet height; the LSL2 reaches a 524 mm screen height (about 32"-40") with 694 mm inside the cabinet; the LSL3 reaches 599 mm (about 40") with 769 mm inside the cabinet.
Control and integration
Out of the box the mechanism accepts IR, RS232 and contact closure commands; the manufacturer also lists RF control as available. The LSL works with the main home automation control standards, Crestron, AMX and Lutron among them. The control box measures 150 x 210 x 50 mm.
Environments
The LSL is an indoor mechanism and is rated for marine use, where the maximum load is 16 kg.
