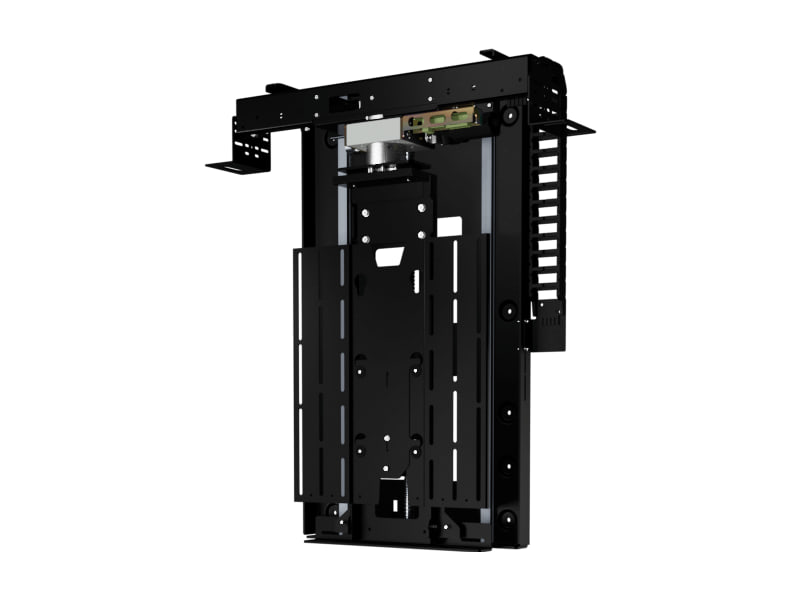

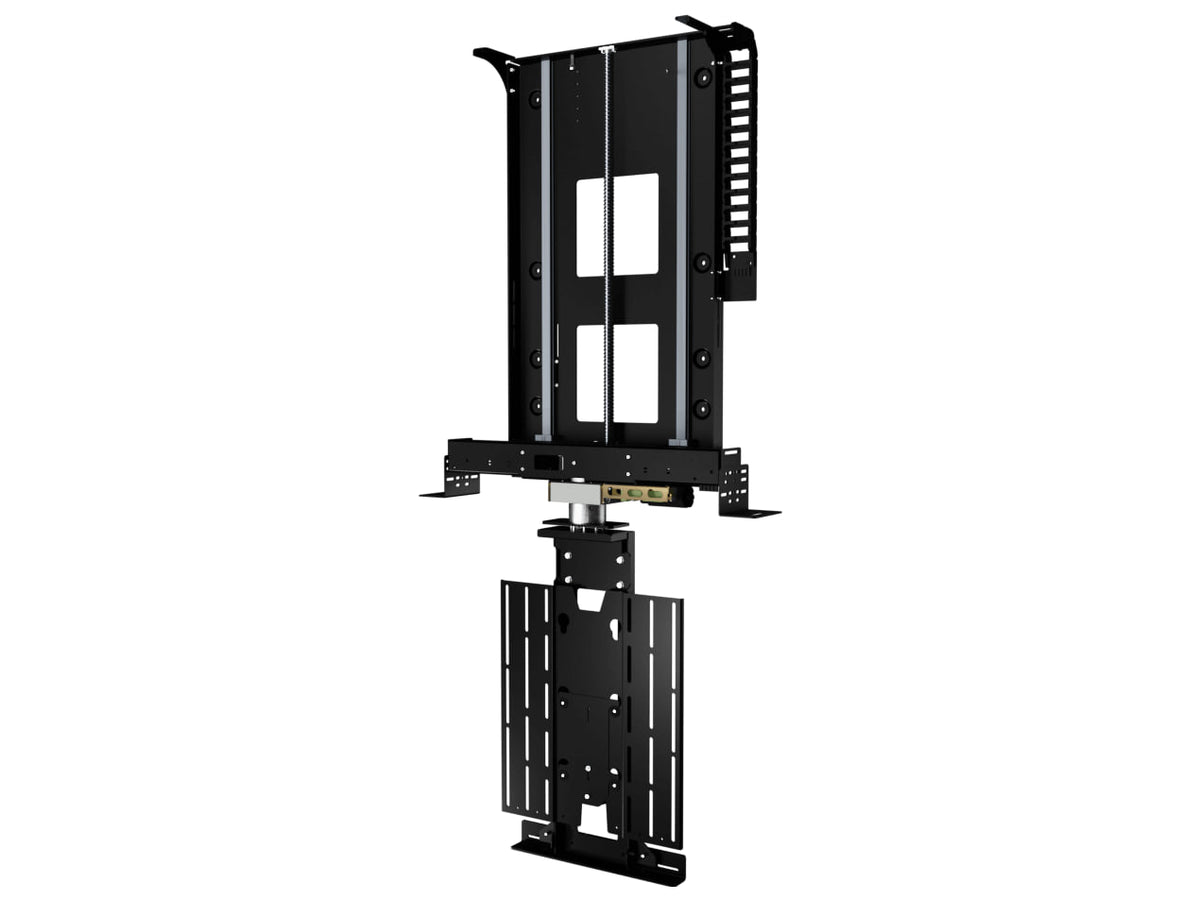

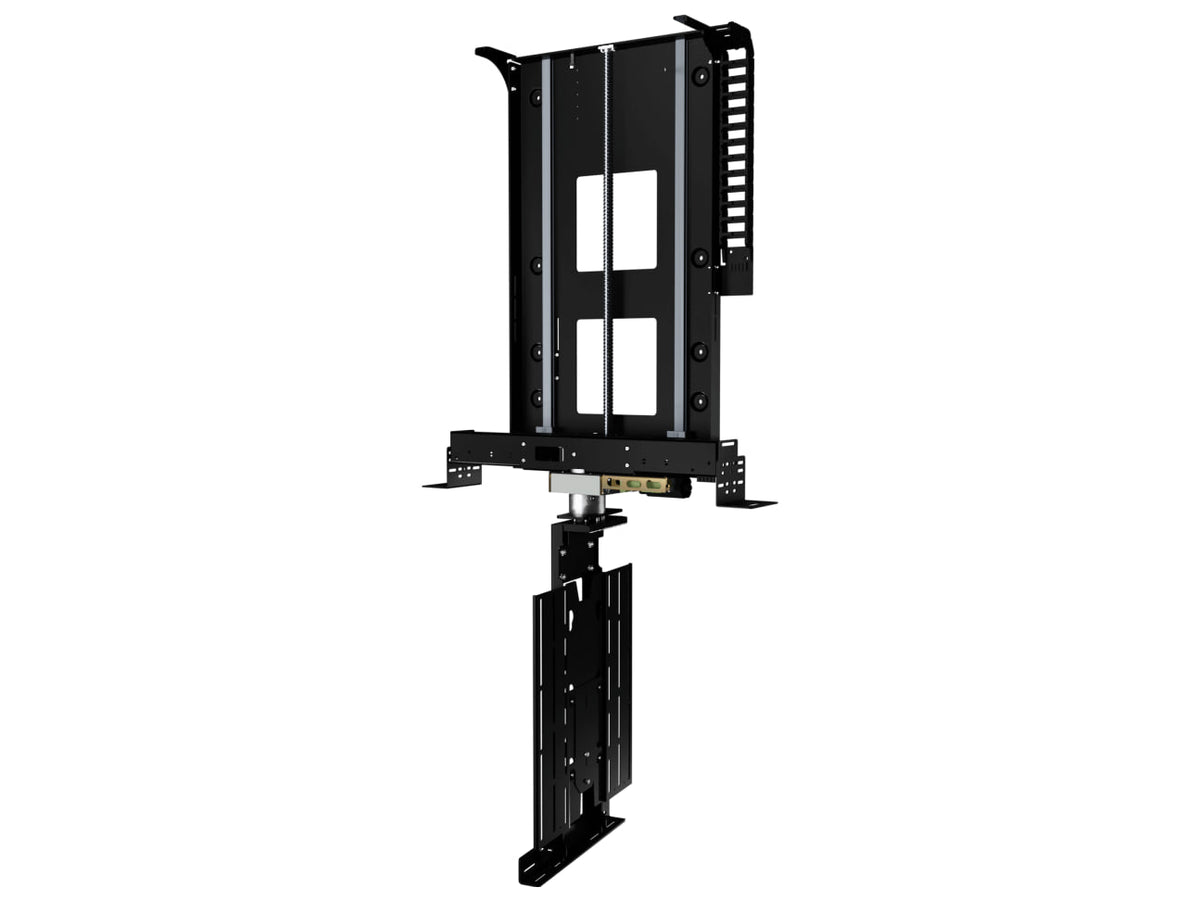

I-LSM-S swivelling inverted lift for TVs installed in the ceiling
I-LSM-S is a compact inverted TV lift with swivel made by Future Automation: it hides the screen in the ceiling cavity, lowers it for viewing and then turns it towards the place it is watched from.
It is the suitable choice where the back of the lift remains visible in the room: the cabinet maker can design a surround for the screen that matches the project or, where a closed structure is not needed, a plain floating lid. The swivel is programmable throughout, reaches as far as 180° and is useful when one room has several viewing positions.
Key features
- Motorised inverted TV lift with swivel of as much as 180° in either direction
- Fixings for a box enclosure included as standard
- Closure by box enclosure or by floating lid
- Maximum screen weight: 50 kg
- Declared noise level: 57 dB
- Black RAL 9005 painted finish, other finishes on request
- Power supply at 240 V or at 110 V
Available sizes
The series covers six sizes, set apart by the maximum height of the screen: 465 mm for I-LSM-S2, 550 mm for I-LSM-S3, 600 mm for I-LSM-S4, 660 mm for I-LSM-S5, 730 mm for I-LSM-S6 and 840 mm for I-LSM-S7. The maximum weight, swivel, noise level and finish listed above are the figures Future Automation publishes for sizes 2 through 6.
Control and integration
The mechanism is controlled through IR, RS232 and contact closure, with RF control offered as an option. Future Automation declares it compatible with the main control standards used in home automation, Crestron, AMX and Lutron among them, so it can be integrated into a smart home. It is rated for indoor use and is suitable for marine installation.
