Heavy duty motorised advance and drop wall bracket for TVs

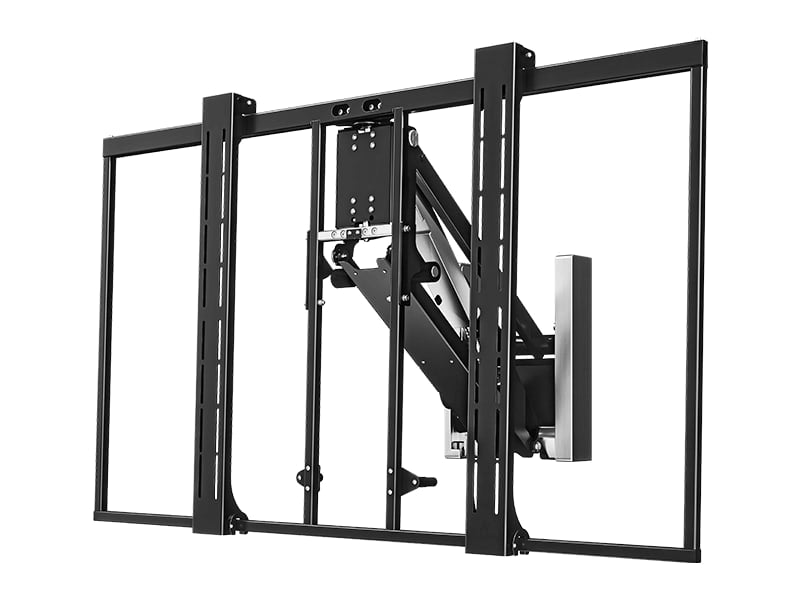

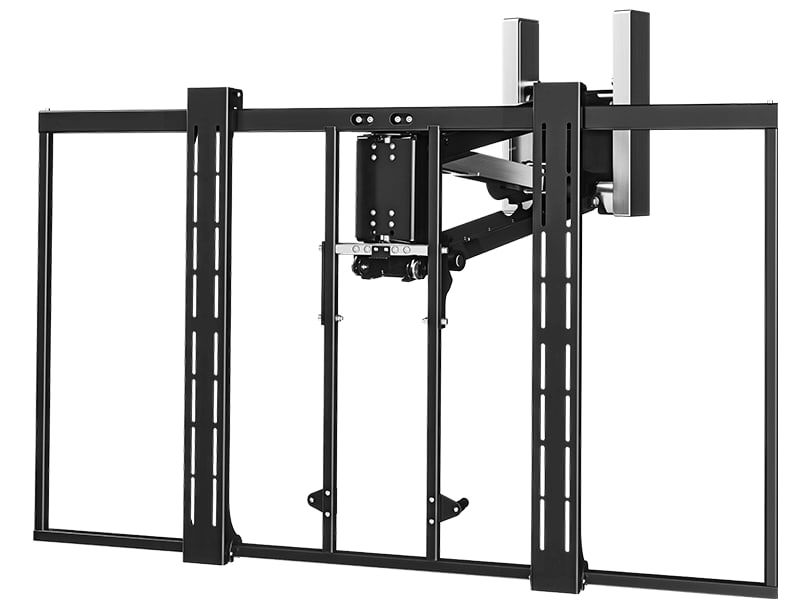

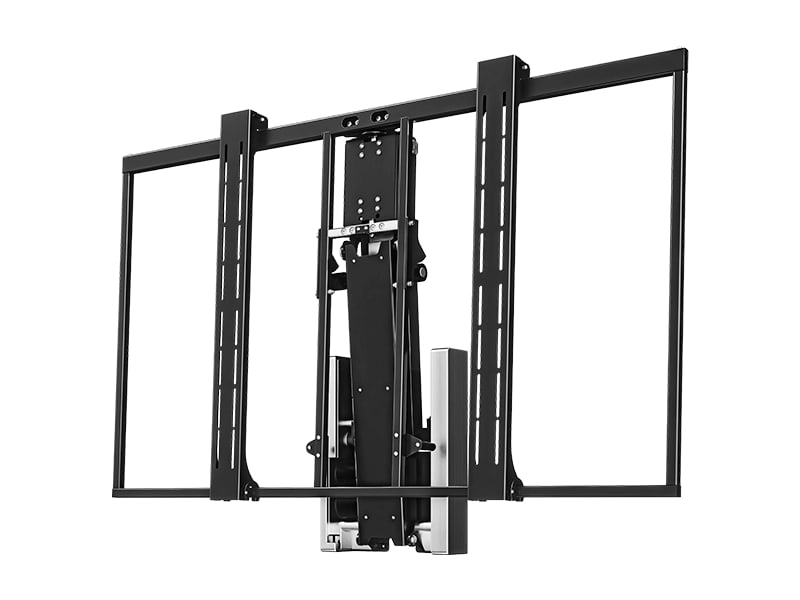

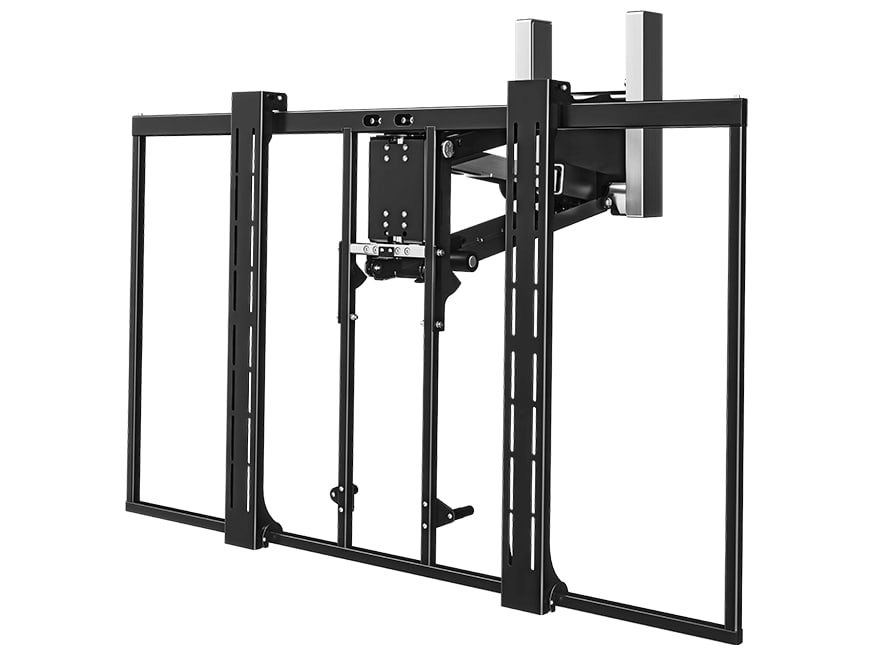

EAD100 is the heavy duty version of the Future Automation Electric Advance & Drop wall bracket: it brings a large-format screen lower, to a more comfortable viewing height.
The motorised travel is forward first and then downward, which suits TVs fitted above a fireplace: the bracket comes out until it passes the mantelpiece, then lowers the screen to its viewing position. On top of this there is a manual swivel of as much as 20° per side. The screen is fitted with a hook-on system, the same one used across the PS bracket family, and a tilt adjustment made at one single point keeps it parallel with the wall. The bracket is for indoor use.
Key features
- Maximum load of 160 kg
- Maximum drop of 835 mm measured against the closed position
- Reaches 883 mm out at most and sits 230 mm deep on the wall
- Manual swivel of as much as 20° both ways
- VESA patterns from 400 x 300 to 1500 x 800 mm
- Magnetic covers that can be taken off, complete cable management, smooth and quiet travel
- RAL 9005 satin black and aluminium finish; other finishes on request
Control and integration
The bracket is operated with an IR remote, through RS232 or by contact closure. It needs a 110 to 240 V AC supply.
Installation
The mechanism measures 1155 x 1600 x 230 mm: a figure to keep in mind when choosing the wall and the space above the fireplace.
