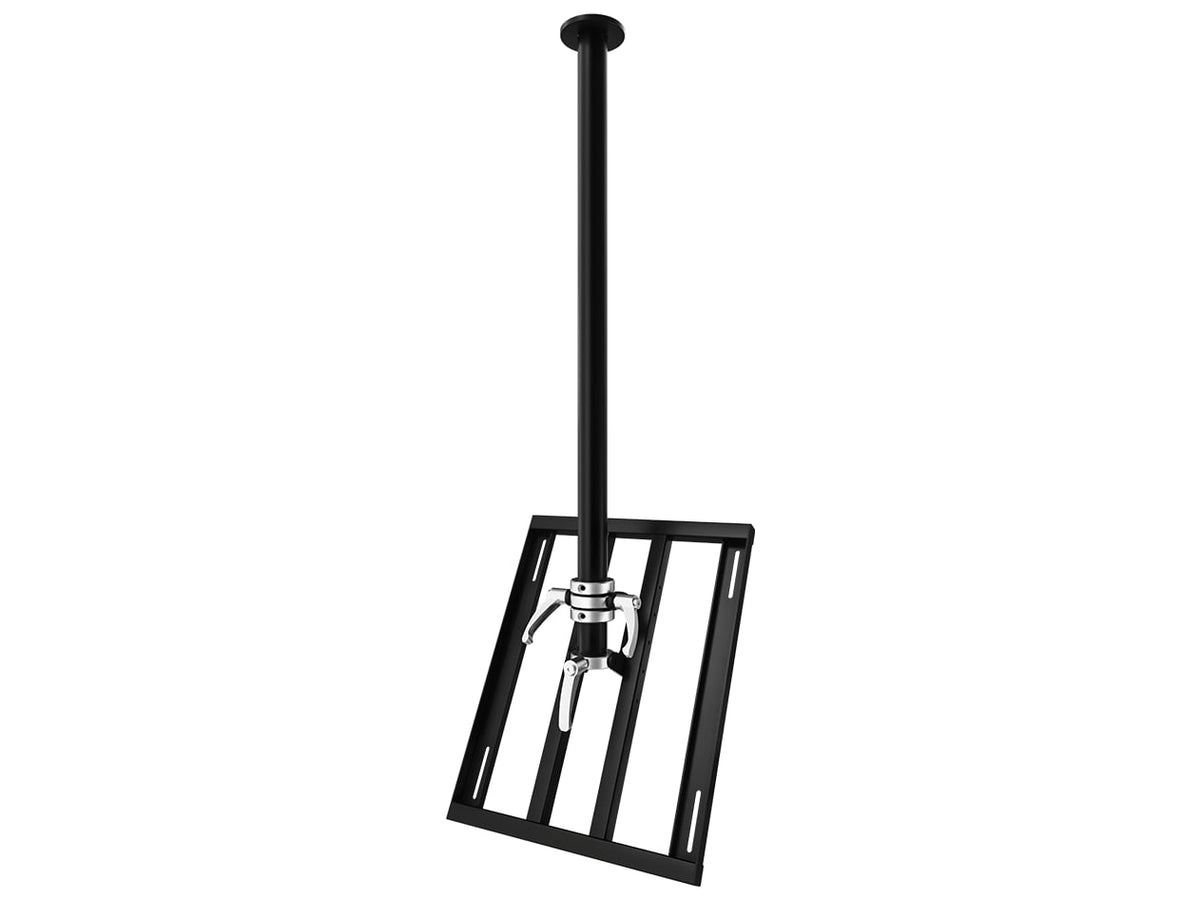

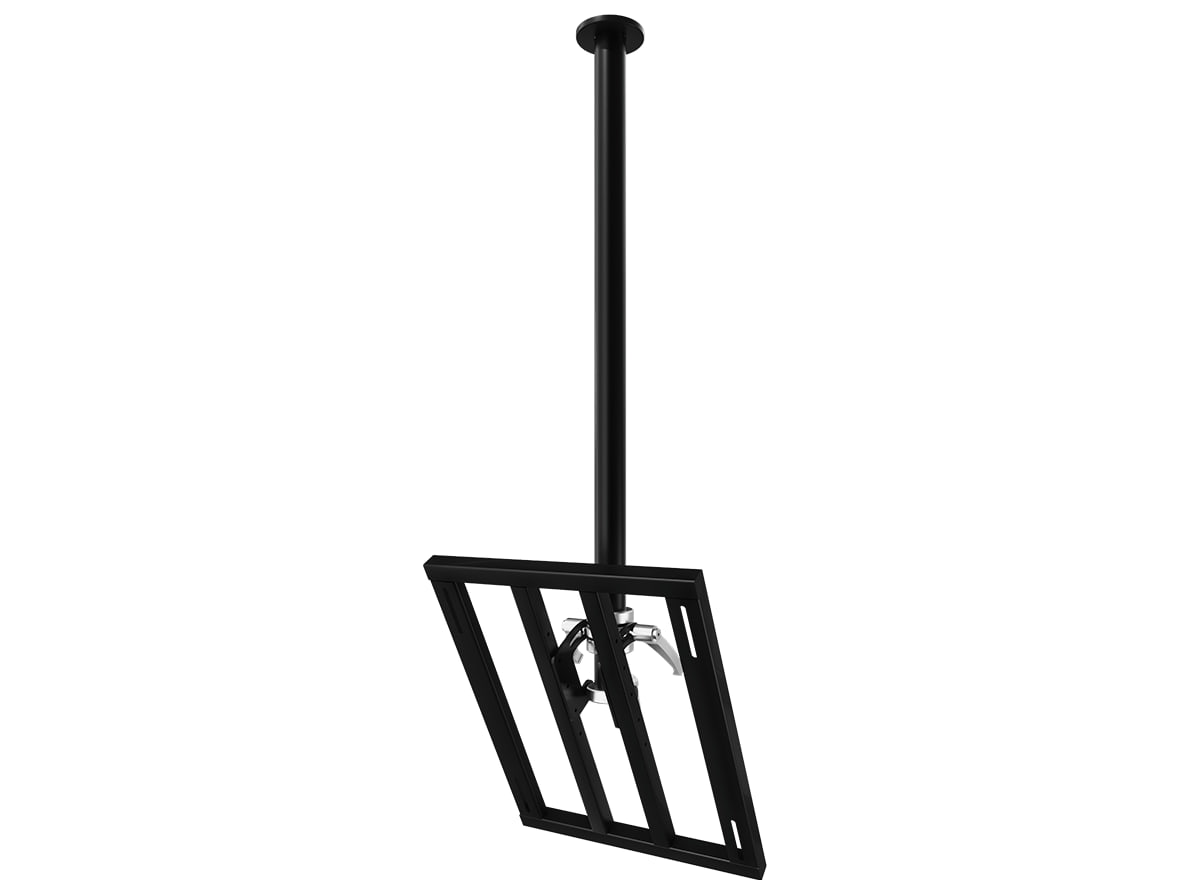

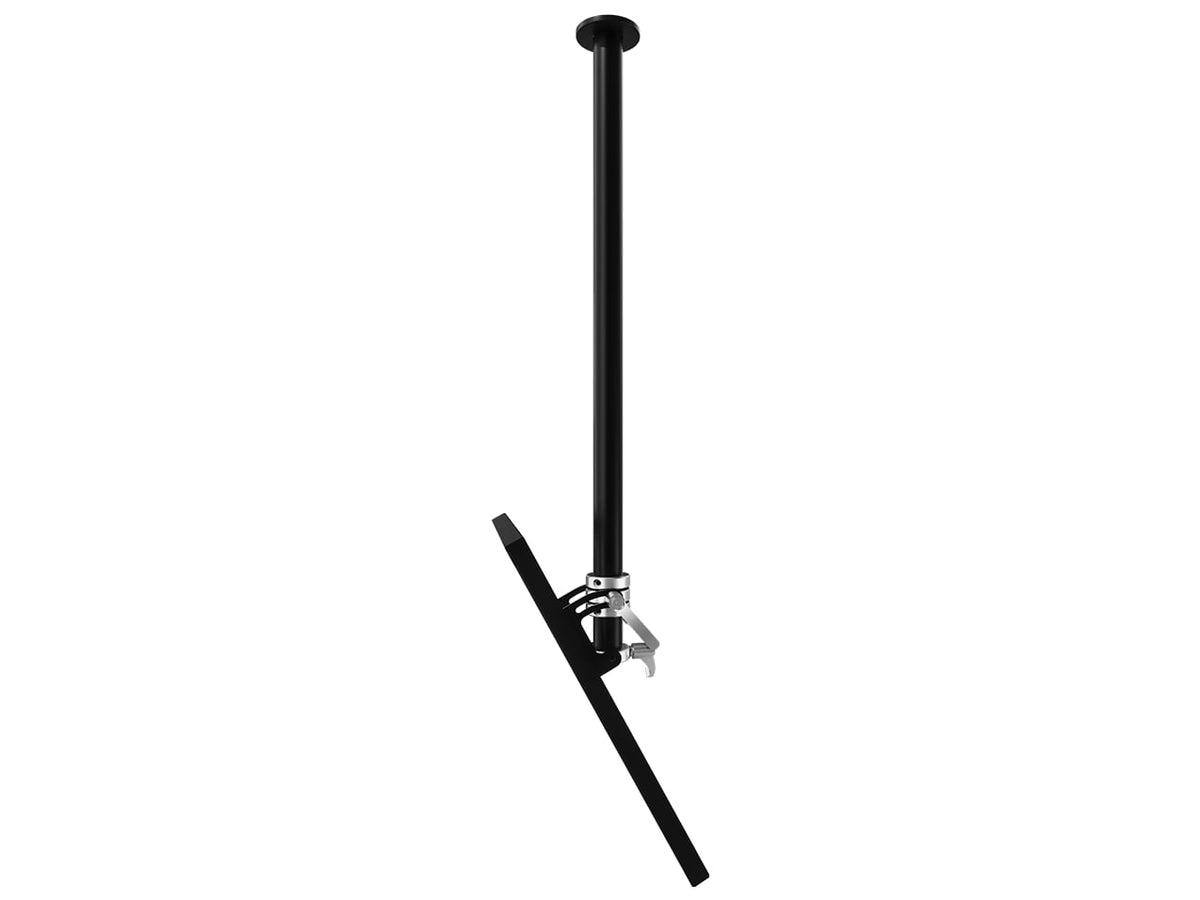

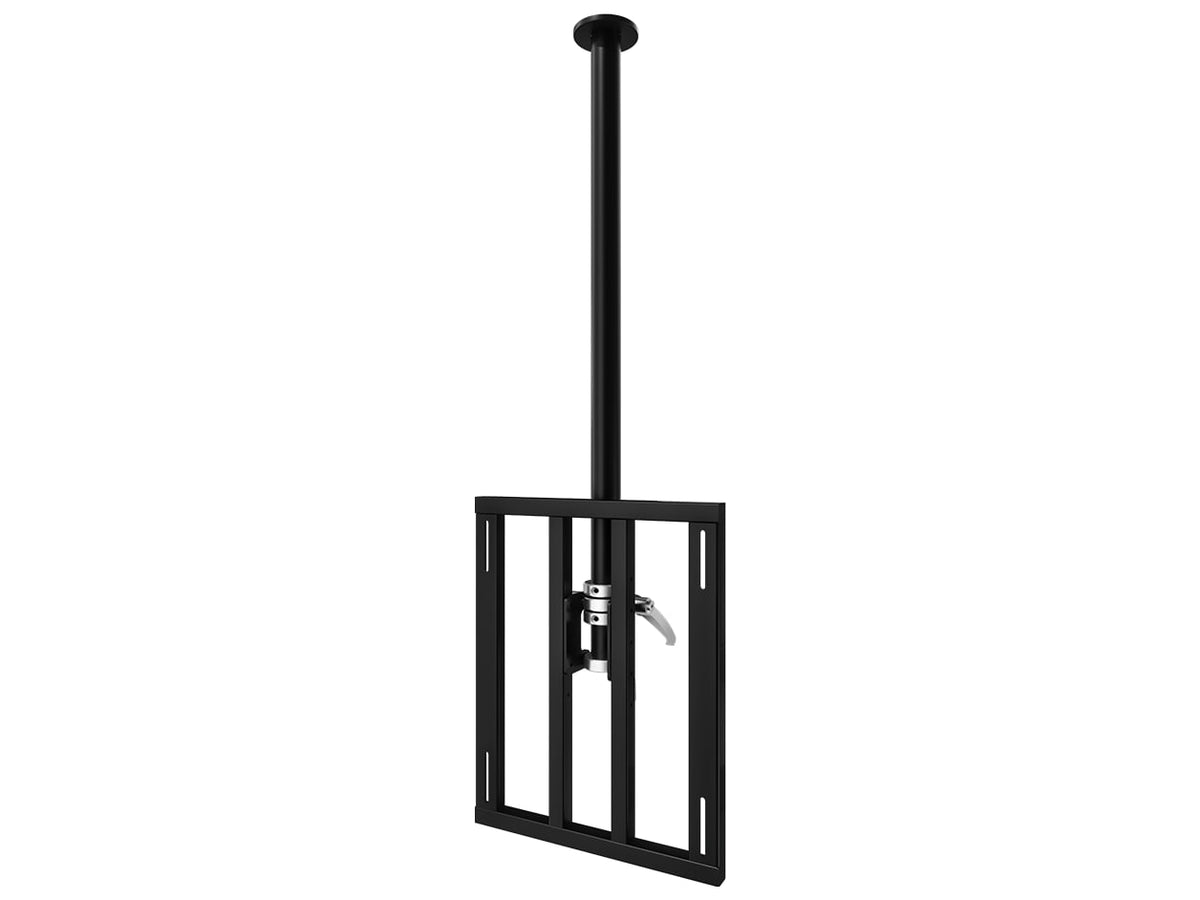

Outdoor TV ceiling mount with a stainless steel pole
The CM-MO is the Future Automation TV ceiling mount for outdoor use: a manual support with a stainless steel pole cut to order, tilt and swivel movement, recommended for 32" to 65" screens. The product is also suitable for use in marine environments.
The mount is engineered specifically for open-air installations: both mount and pole are stainless steel with a powder-coated finish, and the product is IP rated. Every CM-MO has a mount designed around the screen, so it answers the needs of the individual installation. The cables run inside the pole and stay completely hidden.
Key features
- Recommended screens: 32" to 65"; the largest screen dimensions are limited by weight
- Maximum load: 60 kg
- Maximum tilt: 30°
- Manual movement, with tilt and swivel
- Bolt pattern: 400 x 400
- Pole with an outer diameter of 50 mm and an inner one of 40 mm
- Satin black RAL 9005 finish; custom finishes can be requested
Installation
The mount is a pole-type ceiling support, and the pole is cut to order; its length therefore has to be decided at the design stage. Running the cables inside the pole keeps them completely out of sight, and the mount is made to suit the screen being fitted.
Environments
The CM-MO can be used indoors and outdoors. The stainless steel construction with powder-coated finish and the IP rating are aimed at open-air installations.
