Goldring 1006

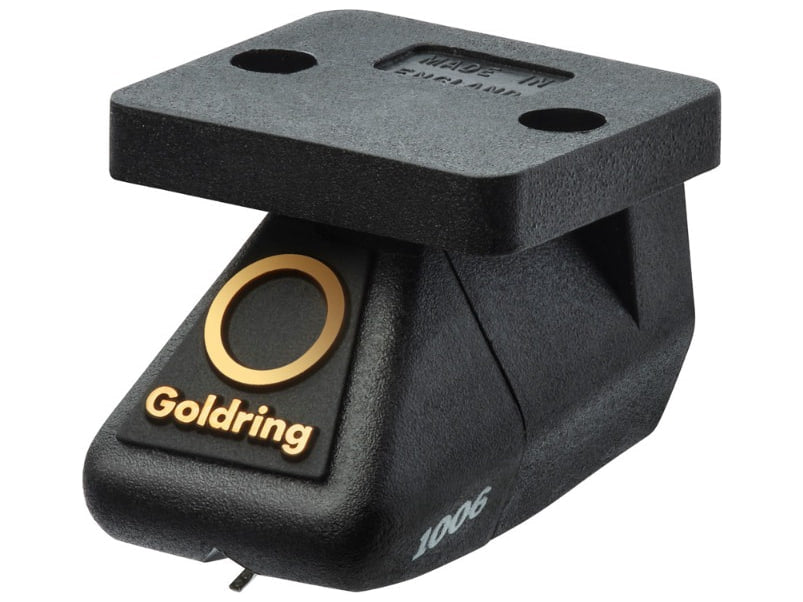

Goldring 1006: MM cartridge with elliptical stylus

The 1006 opens Goldring's 1000 Series. It has an elliptical stylus on a lightweight shank: compared with a spherical one it follows the finest groove modulations more precisely, and the reduced tip mass improves transient response.

Pocan body

The body is a one-piece moulding in Pocan, a very rigid glass-reinforced polyester, which holds the fixed parts firmly and can be tightened securely to the headshell. Each cartridge is built by hand; the stylus is user-replaceable.

Fitting and matching

It has the standard half-inch mount and fits most tonearms with an effective mass from 5 to 25 g. It connects to an ordinary MM phono input, with a 47 kΩ load. Tracking force should be kept between 1.5 and 2 grams (1.75 recommended). As with any cartridge, after fitting it you should set alignment, tracking force and anti-skating following the tonearm instructions.

• Type: moving magnet (MM)
• Stylus: bonded elliptical, 8 µm (0.3 mil) radius, replaceable
• Frequency response: from 20 Hz to 20 kHz (± 3 dB)
• Output voltage: 5 mV (1 kHz, 5 cm/s)
• Cartridge mass: 6.2 g
