Dual mono architecture and reference power supply
The Eversolo AMP-F10 was designed with a specific goal: to deliver absolute power and total control without compromising signal purity. Its true dual mono architecture is based on dual independent 1000W linear power supplies , one for each channel, which physically and electrically separate the audio paths. This approach eliminates interference between channels and allows for extremely stable reproduction, with a wide, airy and perfectly focused soundstage . Even with complex or low-impedance loads, the AMP-F10 maintains control, coherence and naturalness, making it ideal for high-end speakers and large listening rooms.
Power, dynamics and control of the speakers
In terms of performance, the AMP-F10 boasts class-leading 200 W RMS into 8 Ω , 320 W RMS into 4 Ω , and up to 950 W RMS in bridge mode , with stable operation even into 2 Ω . The internal circuitry uses dual differential amplifiers and carefully calibrated negative feedback, achieving a THD+N of just 0.008% . A damping factor of over 600 ensures tight control of the woofers, resulting in deep, tight, and tail-free low frequencies, while a linear frequency response of 10–30,000 Hz ensures tonal consistency across the audio spectrum.
Electrical insulation, connectivity and mechanical construction
To further preserve sound quality, the AMP-F10 integrates a DC filter circuit between the mains and the audio section, eliminating hum and low-frequency interference. Connectivity is comprehensive, with unbalanced RCA and balanced XLR inputs , sensitivity adjusted for perfect integration with high-end preamplifiers and DACs, and 12V trigger for system synchronization. The solid aluminum chassis (18 kg) reduces vibrations and resonances, while optimised passive dissipation maintains stable operating temperatures even at high volumes. The AMP-F10 is thus a power amplifier designed for those seeking reliability, authority and absolute fidelity .
| Model |
Eversolo AMP-F10 |
| Typology |
Stereo/Mono Power Amplifier (Bridge) |
| Architecture |
Dual mono |
| Power @ 8 Ω |
200 W RMS |
| Power @ 4 Ω |
320 W RMS |
| Power @ 2 Ω |
450 W RMS |
| Bridge Power @ 8 Ω |
650 W RMS |
| Bridge Power @ 4 Ω |
950 W RMS |
| THD+N |
0.008% |
| S/N ratio |
≥113 dB (gain 23 dB, A-weighted) |
| Frequency response |
10 Hz – 30 kHz (±0.5 dB @ 8 Ω) |
| Damping factor |
>600 @ 8 Ω / 1 kHz |
| Crosstalk |
≤-95 dB (200W @ 8 Ω / 1 kHz) |

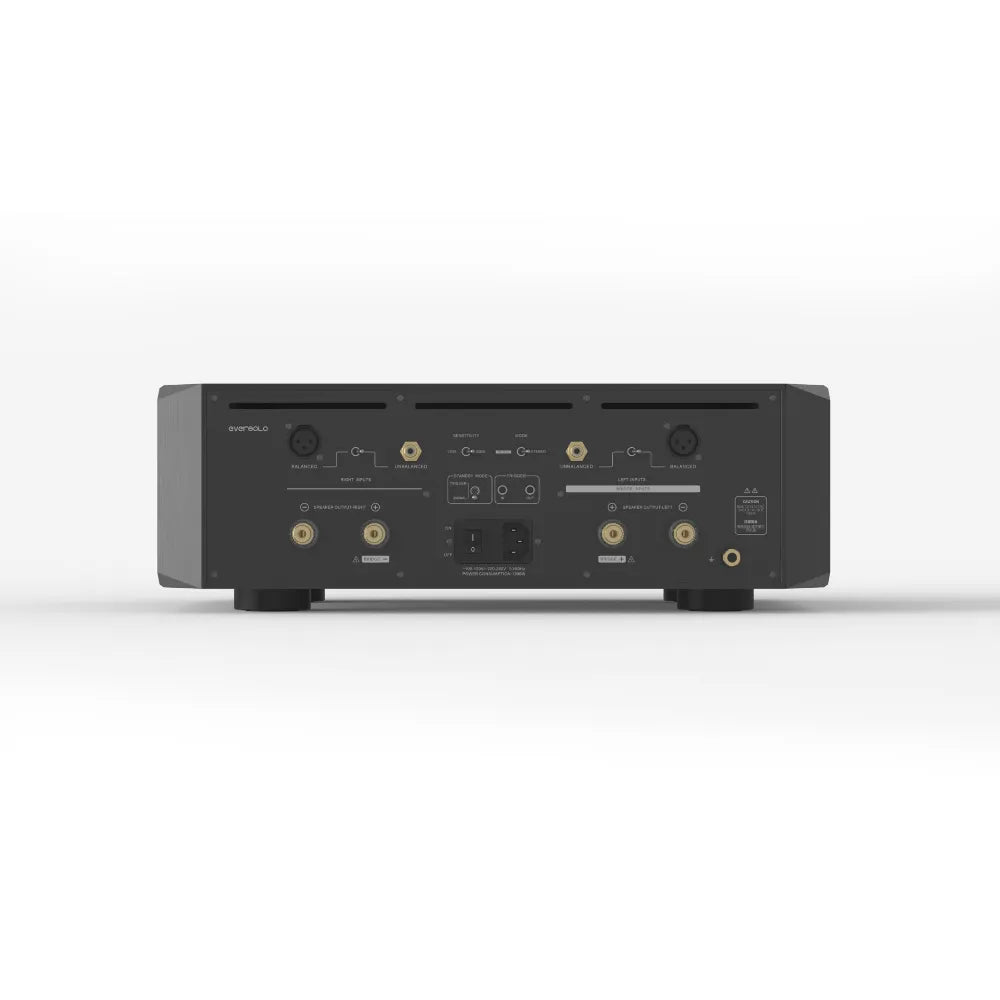

| Entrances |
RCA unbalanced ×1, XLR balanced ×1 |
| Input impedance |
RCA 10 kΩ / XLR 10 kΩ |
| Input sensitivity |
RCA 1.3–2.65V • XLR 2.4–5.2V |
| Diet |
Dual independent linear power supply |
| Trigger |
12 V In |
| Chassis |
Aluminum |
| Dimensions |
430 × 310 × 147 mm |
| Weight |
18kg (net) |
| Accessories |
Power cord, trigger cable, manual |
