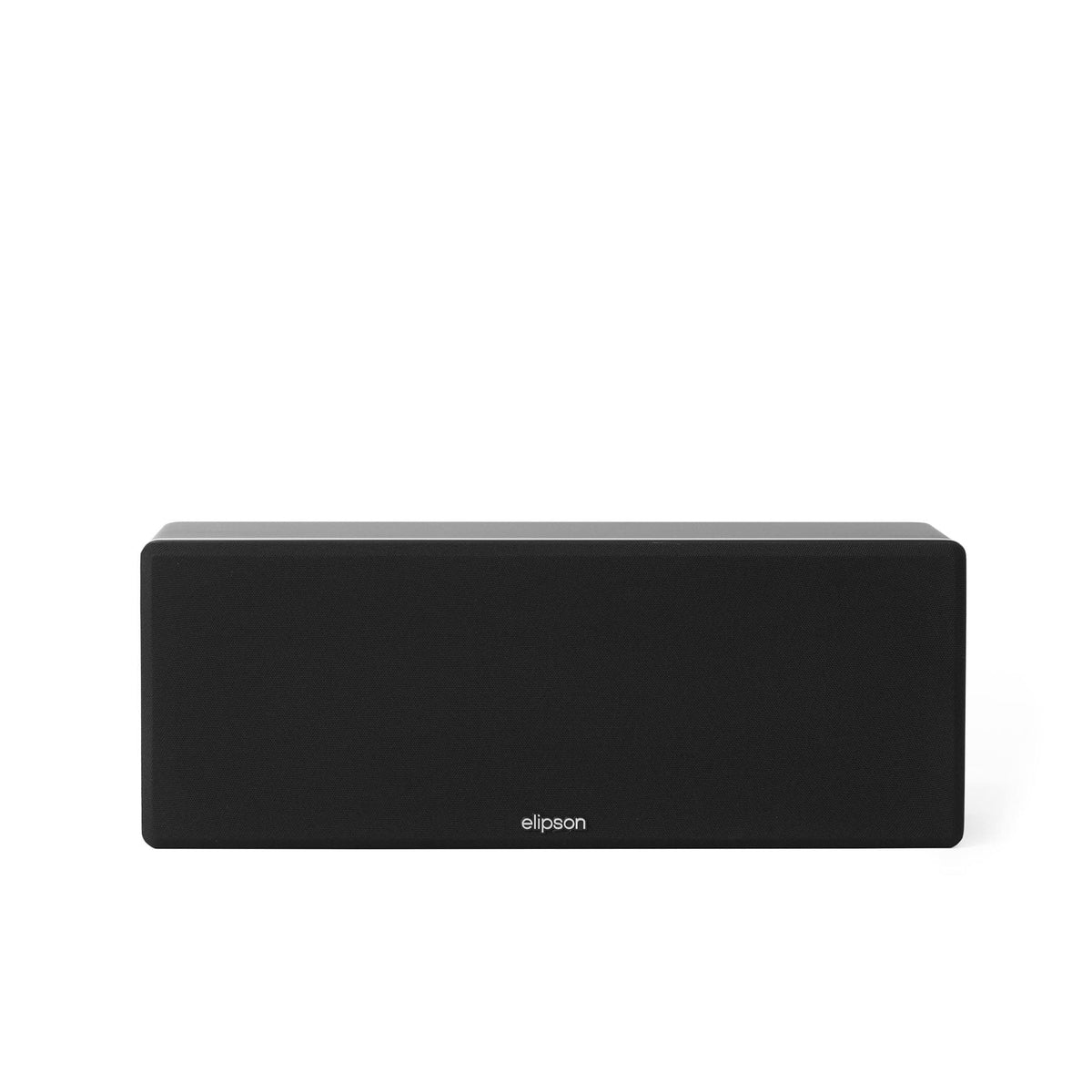

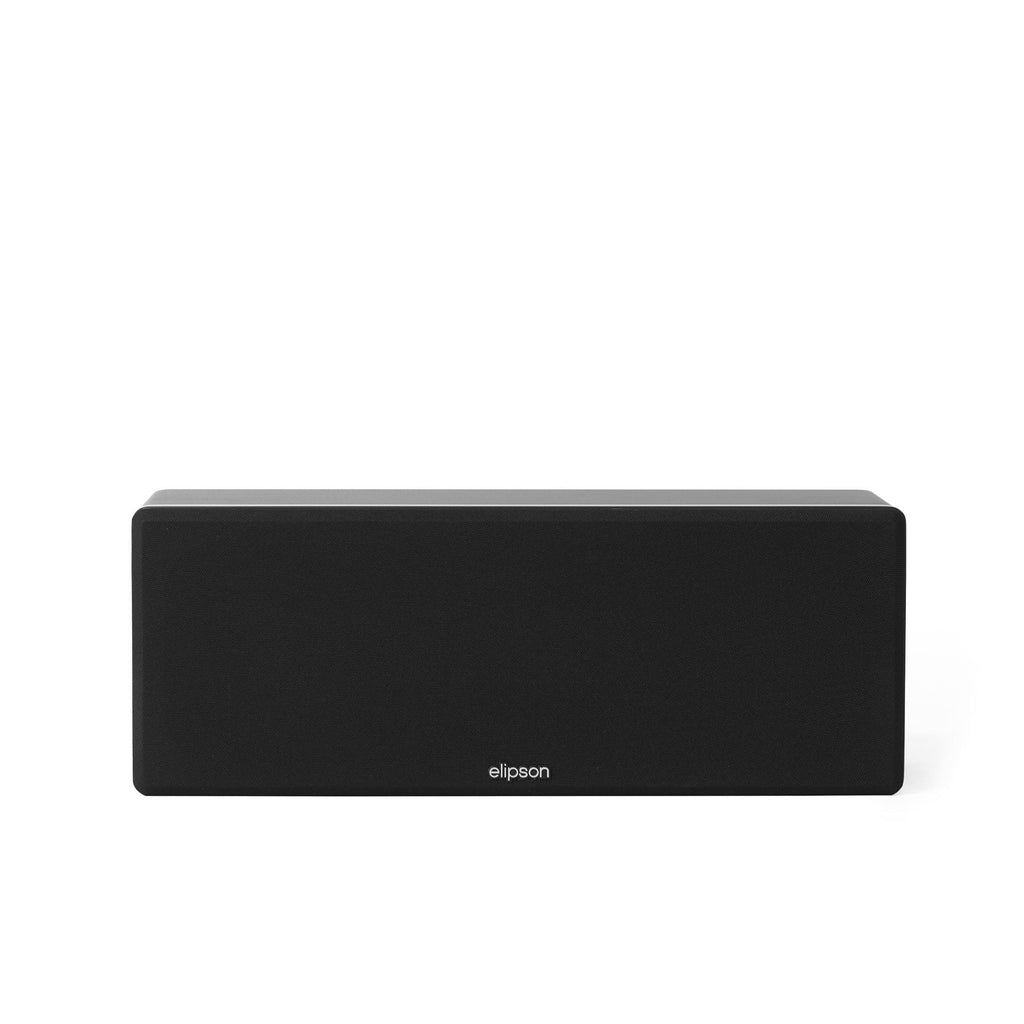

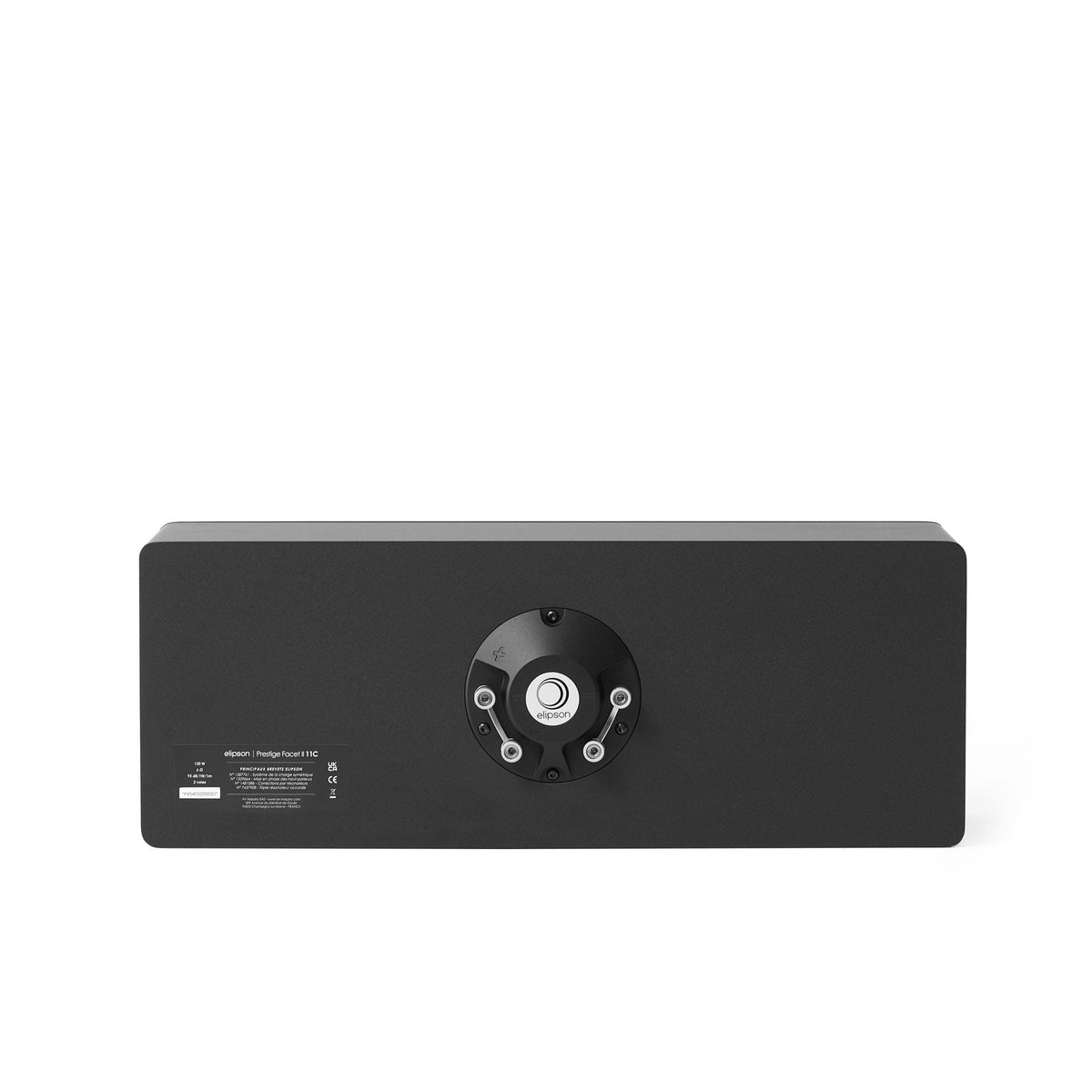

Elipson Prestige Facet II 11C: two-way sealed centre speaker

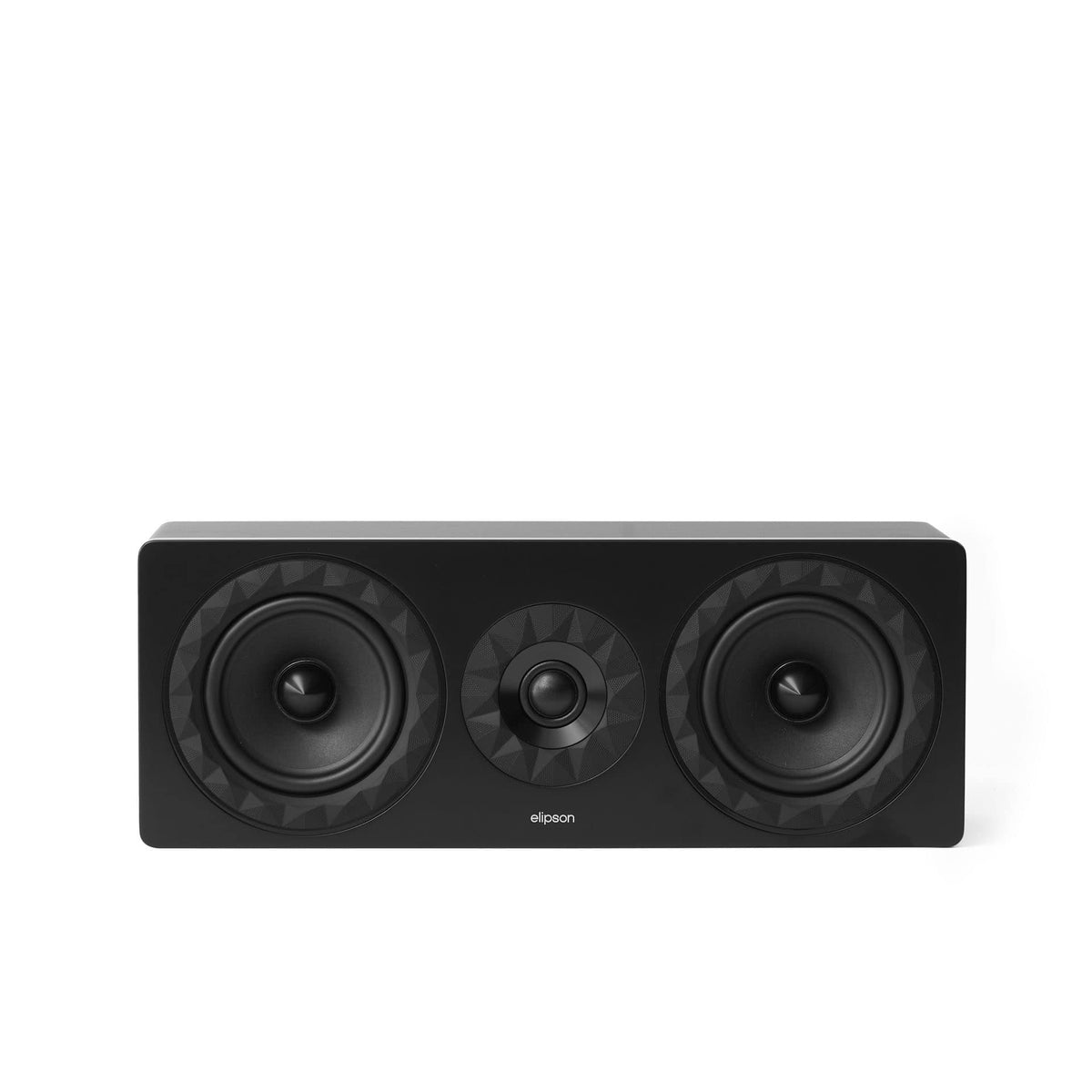

Elipson Prestige Facet II 11C is a two-way sealed-box centre channel loudspeaker, intended for home cinema systems. Two 140 mm mid-woofers are paired with a 25 mm soft dome tweeter; the drive units are surrounded by the anti-diffraction ring patented by Elipson, which reduces the disturbances caused by the front baffle and makes the response more linear.
The passive crossover uses selected components: polypropylene film capacitors, metal film resistors and air core inductors, chosen to keep distortion low. The internal wiring is OFC copper and the finish is satin. The cabinet has compact proportions and a clean design. The speaker is sold singly, in a Black finish.
Technical features
- Configuration: two-way, sealed box
- Drive units: two 140 mm mid-woofers; 25 mm soft dome tweeter
- Frequency response: 55 Hz - 25 kHz (+/- 3 dB)
- Sensitivity: 92 dB
- Impedance: 6 Ohm nominal, with a minimum of 3.8 Ohm at 187 Hz
- Power: 120 W RMS
- Crossover: 3500 Hz point, 18 dB per octave slope
- Dimensions: width 470 mm, height 176 mm, depth 180 mm
- Weight: 9.1 kg
