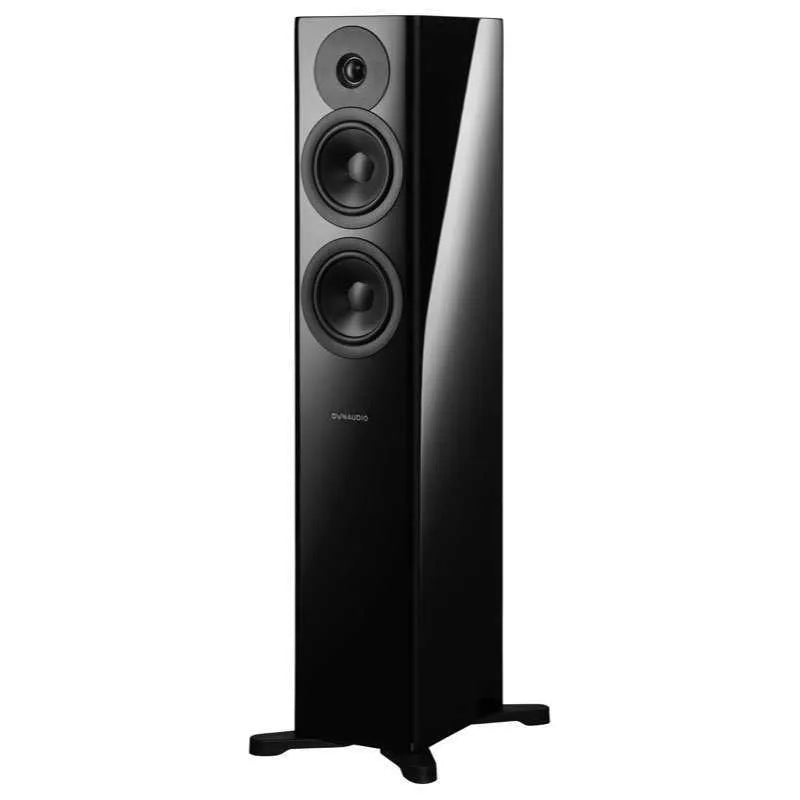

Dynaudio Evoke 30: compact 2.5-way floorstanding speaker
Evoke 30 is a compact floorstanding speaker, a two-and-a-half-way design intended for medium and large rooms. It combines a 28 mm soft-dome tweeter with two 14 cm mid-woofers in a cabinet 90 cm tall.
The Cerotar tweeter has a dome with precision coating and the Hexis inner dome, a shaped element placed just behind the diaphragm that reduces resonances and makes the response more even. The two Esotec+ mid-woofers have MSP (Magnesium Silicate Polymer) cones formed from a single piece, glued to the glass-fibre former of the coil beneath the Balance Ribs. The 52 mm voice coils are aluminium, the spiders are aramid fibre and the surround, derived from the Contour series, allows a long throw. Tweeter and woofers use Ferrite+ ceramic magnets.
Technical features
- System: 2.5-way, bass reflex with rear port
- Drivers: 28 mm Cerotar tweeter with Hexis, two 14 cm MSP mid-woofers
- Sensitivity: 88 dB (2.83 V / 1 m)
- Rated impedance: 4 Ohm
- Frequency response: 40 Hz - 23 kHz (+/- 3 dB)
- Crossover: 1200 and 2300 Hz, second order
- Dimensions (W x H x D): 180 x 900 x 267 mm; with feet 268 x 920 x 342 mm
- Weight: 15.5 kg
Available versions

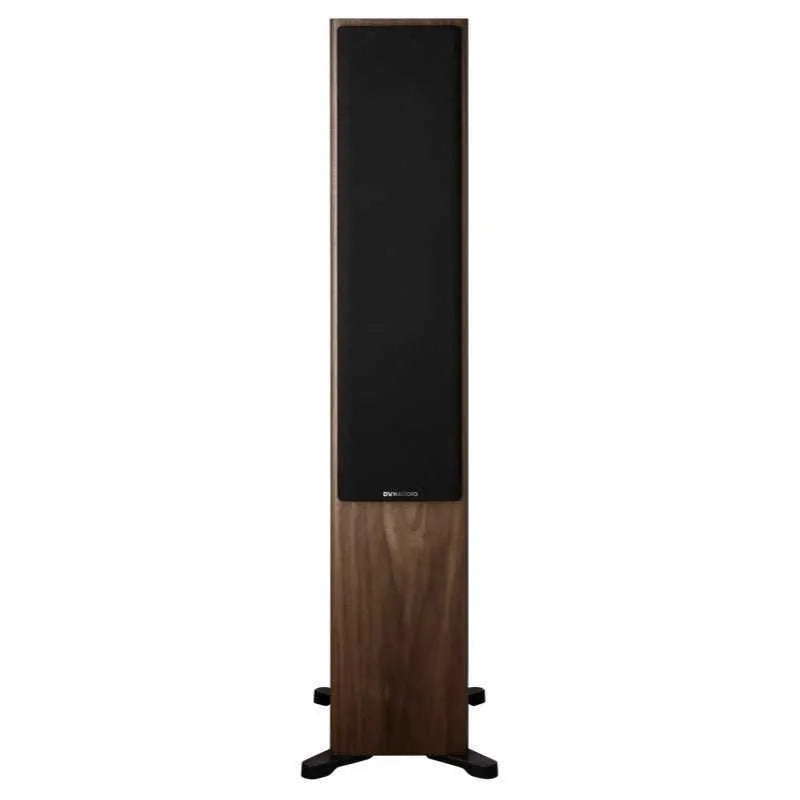

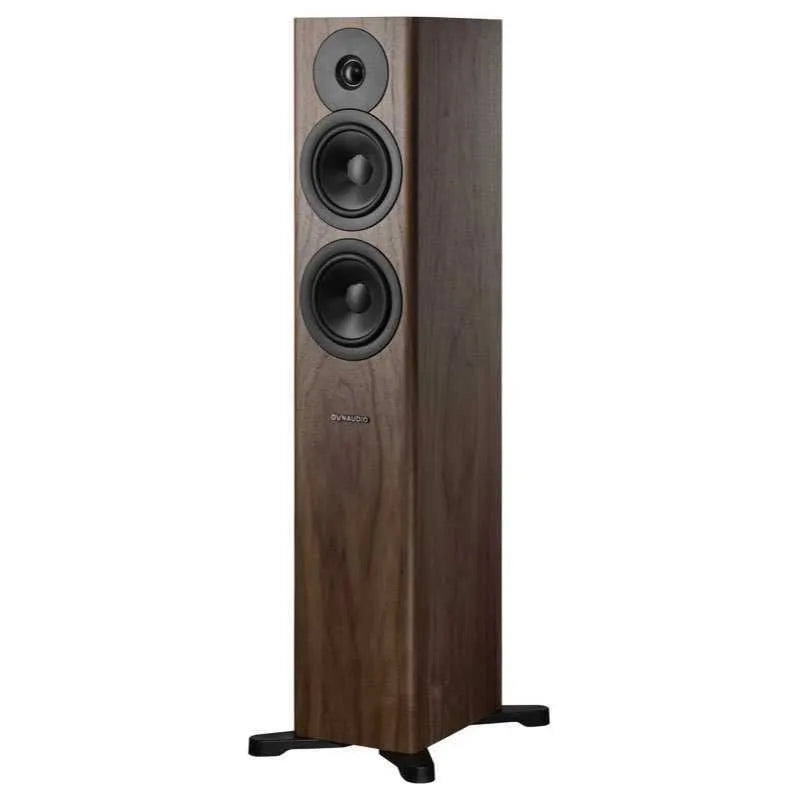

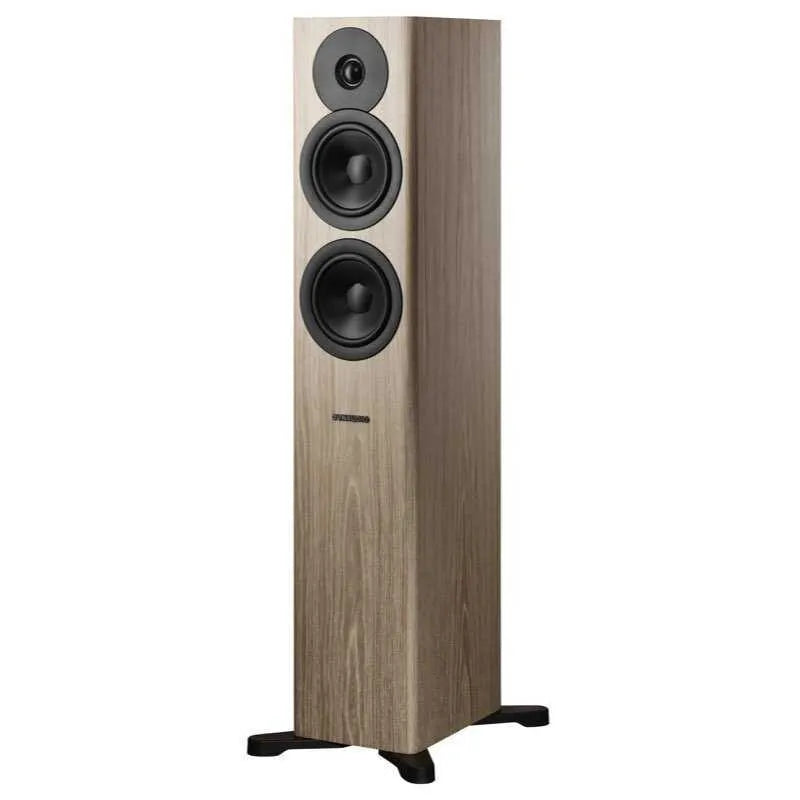

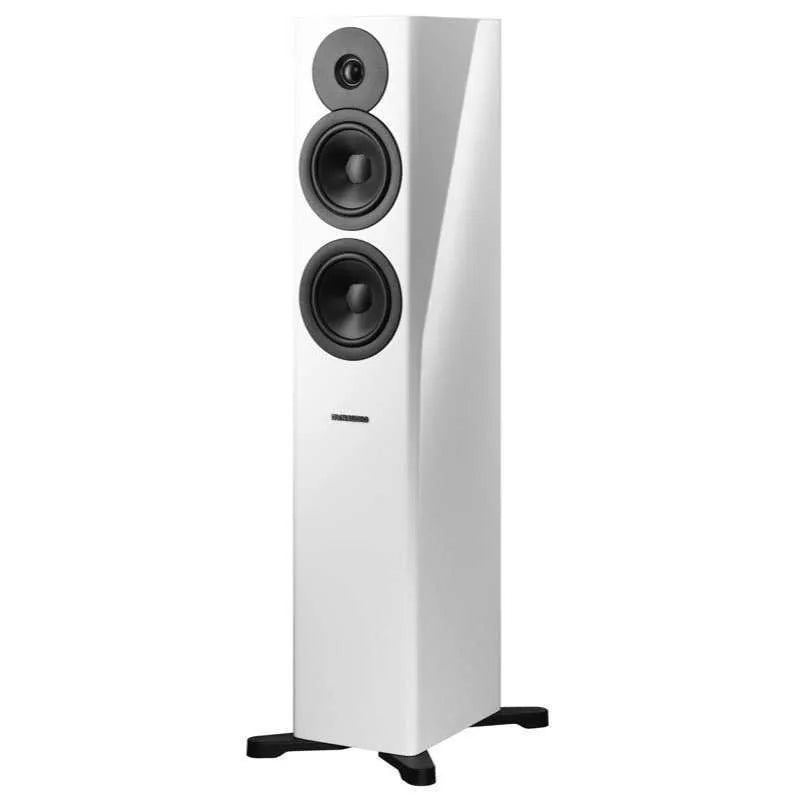

Sold as a pair, in Black, White, Light Oak and Walnut finishes.
