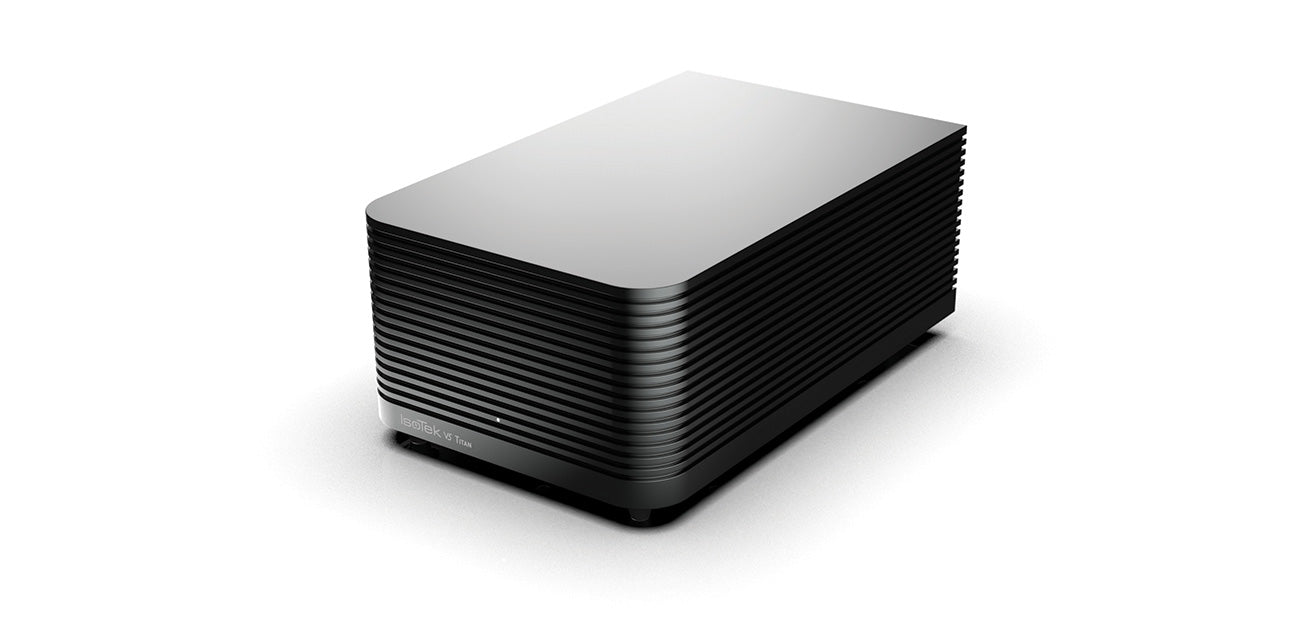

IsoTek V5 Titan

High-current mains filter with three 16 A outlets, for power amps, active speakers and subwoofers, with an EVO3 Premier cable supplied.

V5 Titan: the design

V5 Titan is meant for equipment that does not draw current steadily: power amplifiers, active speakers, active subwoofers, and modern TVs too. Compared with the first Titan it gains a third outlet and a System Link socket.

The Direct-Coupled circuit has over 50% more copper on the board, twice the inductance and 80% more current capacity. Protection, with a resettable RCBO breaker, reaches 153,000 A instantaneous.

Specifications

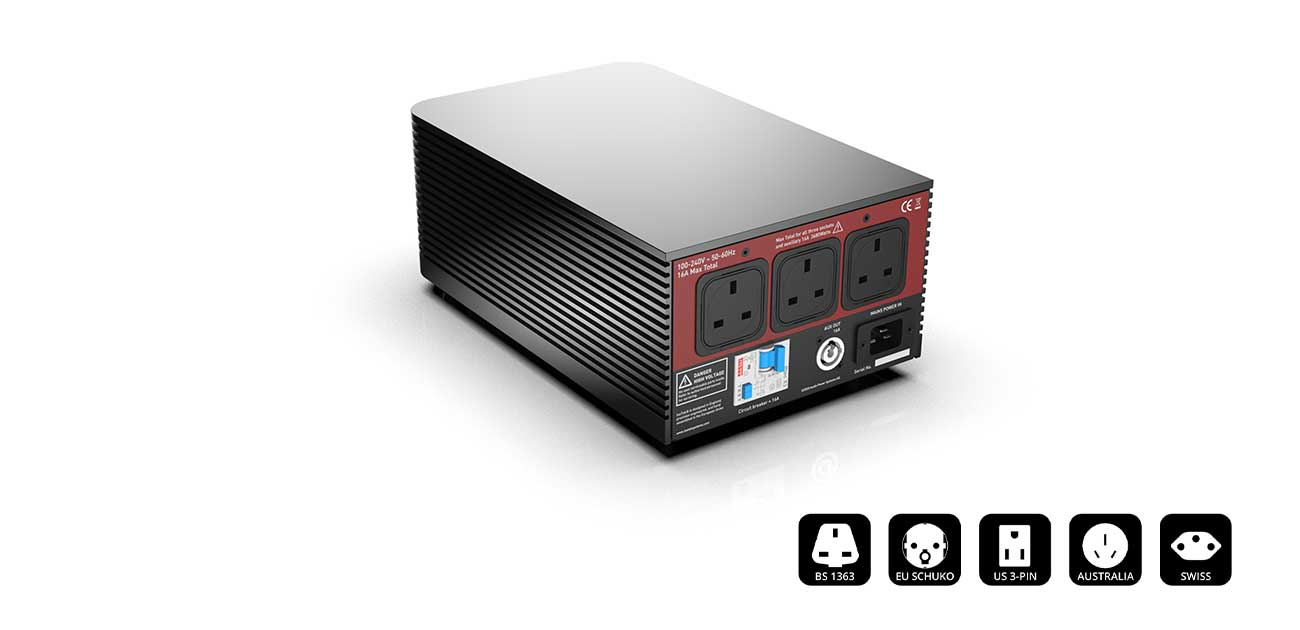

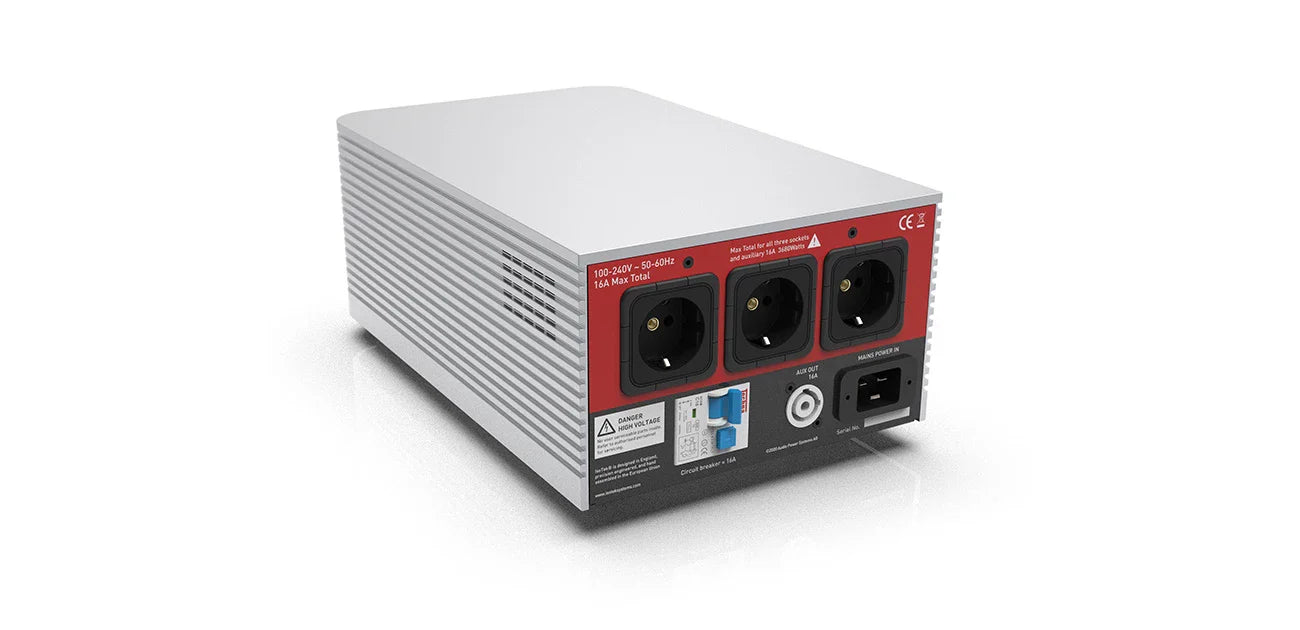

• 3 independent 16 A high-current outlets
• RFI reduction: 85 dB, down to 5 Hz
• Protection: 153,000 A instantaneous, 75,000 A continuous
• System Link outlet to add further IsoTek units while keeping the star earth
• Star-earthed network
• Internal wiring in solid-core silver-plated OCC copper with FEP air dielectric
• Mains inlet: 16 A IEC C20
• Maximum power: 3,680 W (16 A at 230 V)
• Mains voltage: 100-240 V, 50-60 Hz
• Supplied cable: EVO3 Premier 1.5 m
• Size: 220 x 147 x 350 mm (W x H x D)
• Weight: 12 kg

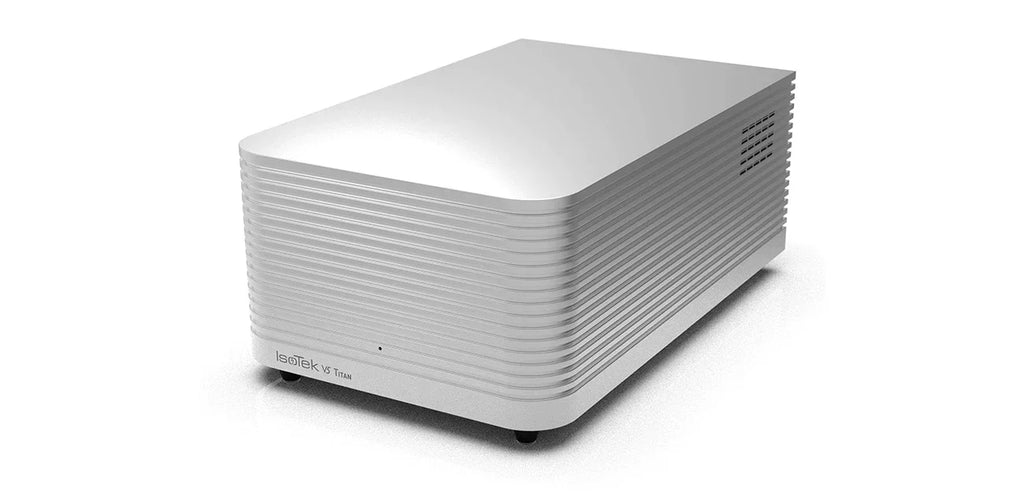

• Finishes: black, silver
