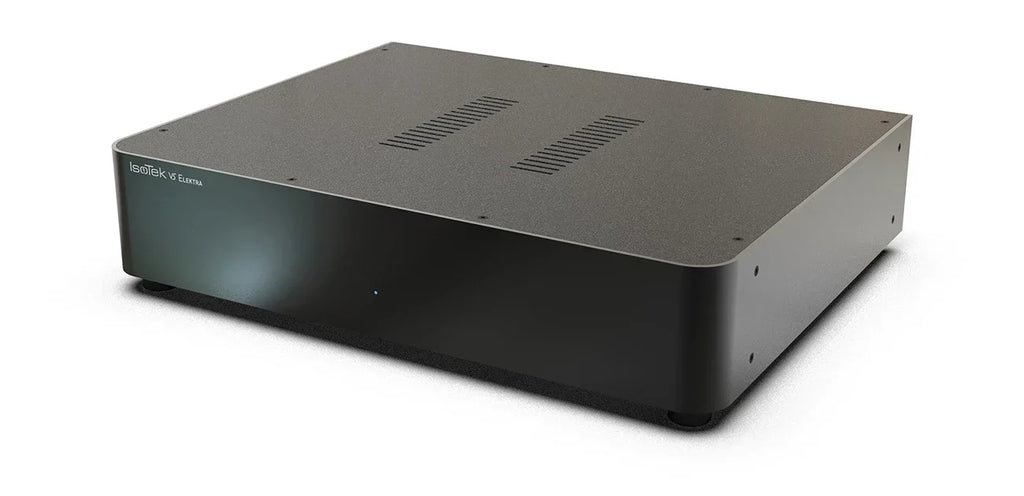

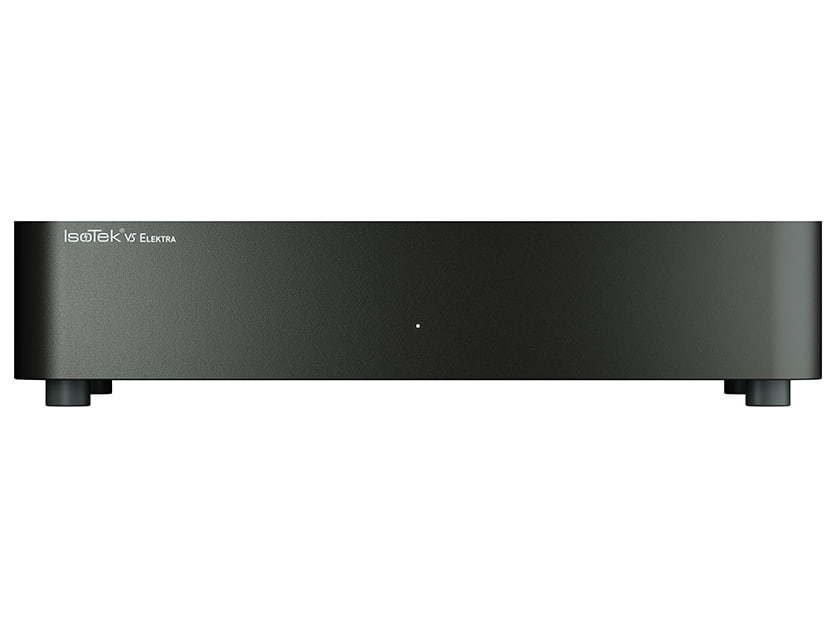

IsoTek V5 Elektra

Six-outlet mains filter, each outlet with its own filter circuit, and an EVO3 Initium cable supplied.

V5 Elektra: the design

V5 Elektra brings to a lower price class the idea that sets IsoTek filters apart: a filter network dedicated to each outlet. It is in effect six filters in one chassis, so no component disturbs the others.

Four 5 A outlets are for sources, two 10 A outlets serve power amplifiers, active subs, powered speakers and TVs. Instantaneous protection reaches 67,500 A and the fuses are easy to replace.

Specifications

• 6 independent outlets: 4 at 5 A for sources, 2 high-current at 10 A
• RFI reduction: 55 dB
• Protection: 67,500 A instantaneous, 32,500 A continuous
• System Link outlet to add further IsoTek units while keeping the star earth
• Star-earthed network
• Internal wiring in silver-plated 6N OFC copper with FEP dielectric
• Mains inlet: 10 A IEC C14
• Maximum power: 2,300 W (10 A at 230 V)
• Mains voltage: 100-240 V, 50-60 Hz
• Supplied cable: EVO3 Initium 1.5 m
• Size: 450 x 106 x 350 mm (W x H x D)
• Weight: 9 kg

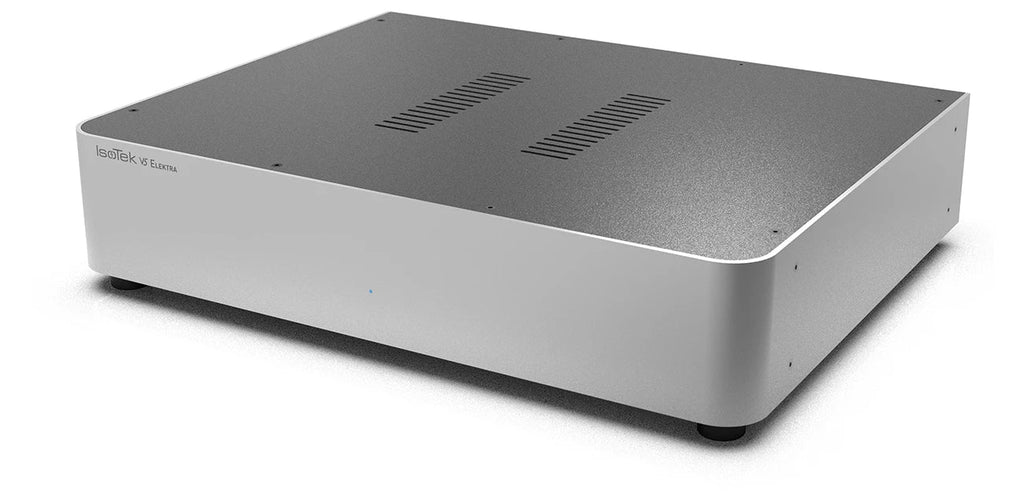

• Finishes: black, silver
