IsoTek V5 Aquarius

Six-outlet 16 A mains filter, each outlet with its own filter circuit, and an EVO3 Premier cable supplied.

V5 Aquarius: the design

V5 Aquarius takes the Aquarius design further: copper on the circuit board is up by 35%, DC resistance is down by at least 25% and instantaneous protection rises to 81,000 A.

Each outlet has its own filter network: two high-current 16 A outlets for power amps and subwoofers, four 6 A outlets for sources. Internal wiring is solid-core silver-plated OCC copper and protection is thermomagnetic and resettable.

Specifications

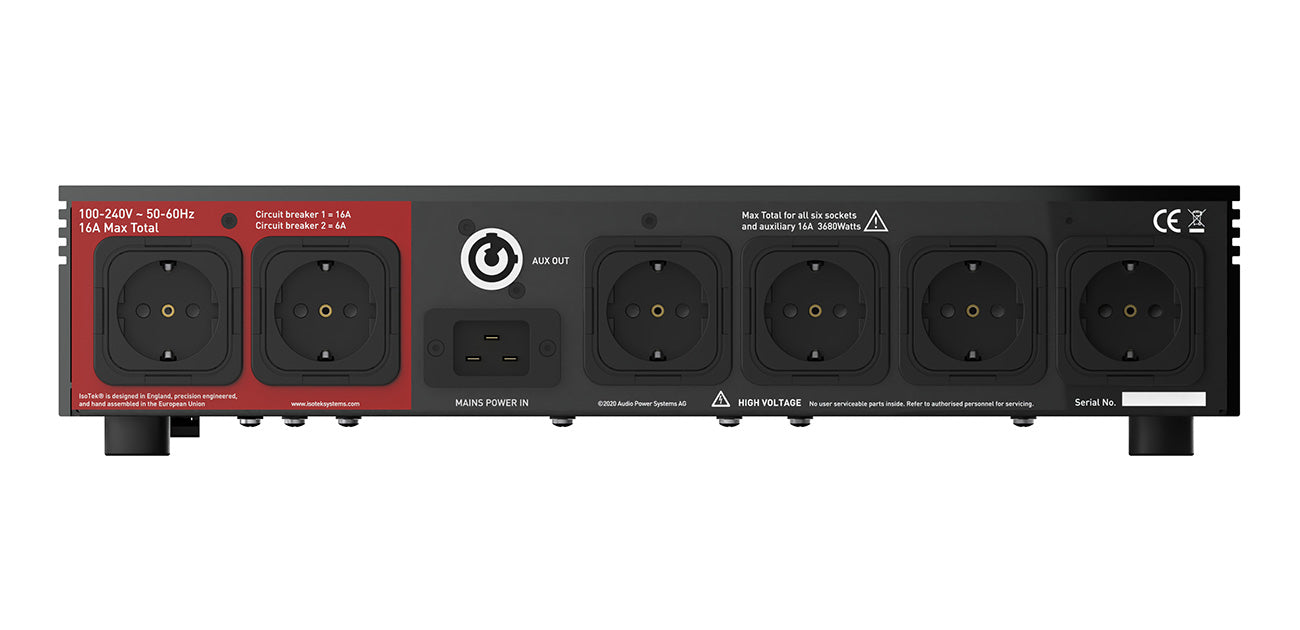

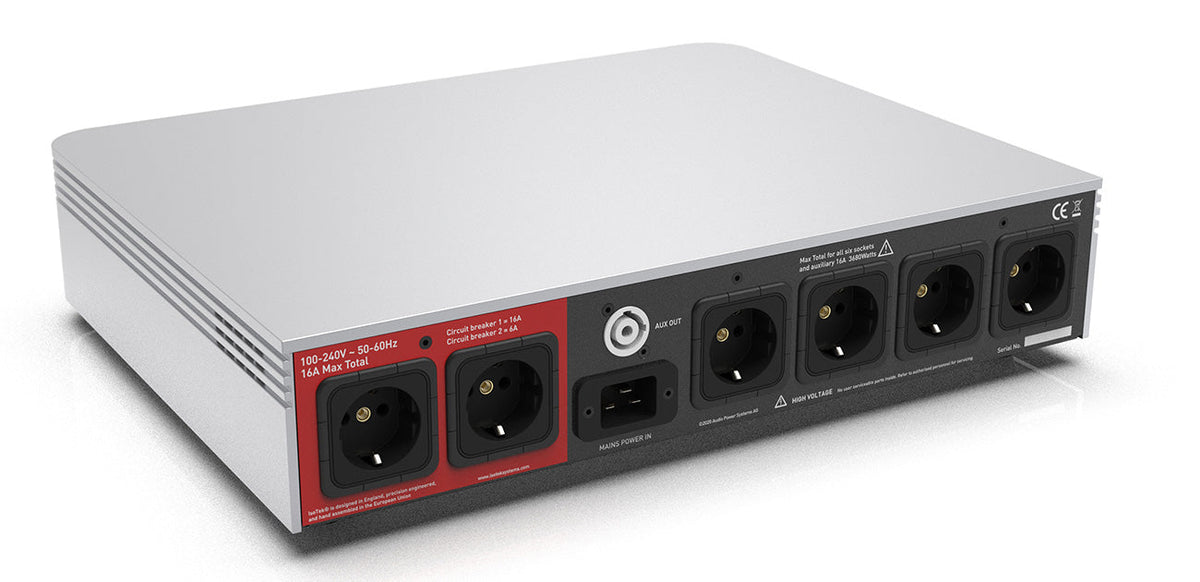

• 6 independent outlets: 4 at 6 A for sources, 2 high-current at 16 A
• RFI reduction: 65 dB
• Protection: 81,000 A instantaneous, 40,000 A continuous
• System Link outlet to add further IsoTek units while keeping the star earth
• Star-earthed network
• Internal wiring in solid-core silver-plated OCC copper with FEP air dielectric
• Mains inlet: 16 A IEC C20
• Maximum power: 3,680 W (16 A at 230 V)
• Mains voltage: 100-240 V, 50-60 Hz
• Supplied cable: EVO3 Premier 1.5 m
• Size: 450 x 110 x 350 mm (W x H x D)
• Weight: 9.5 kg

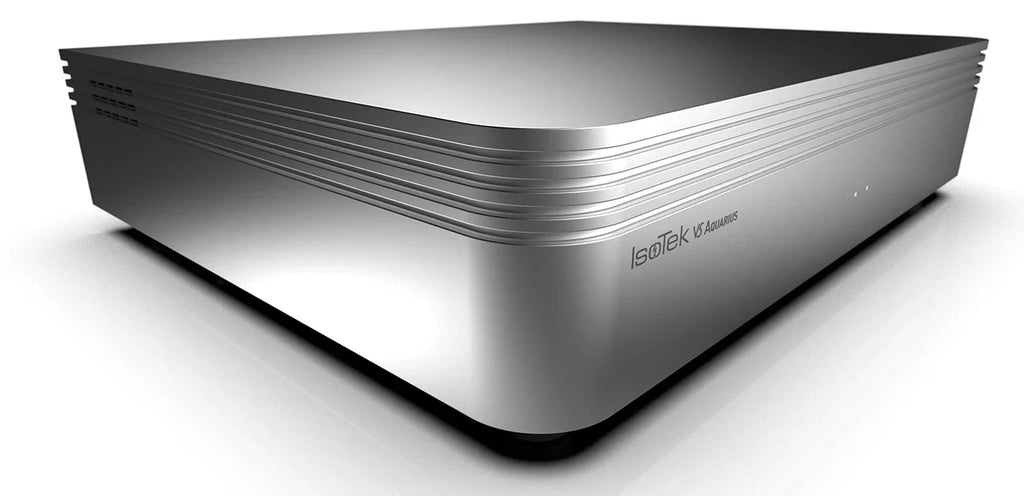

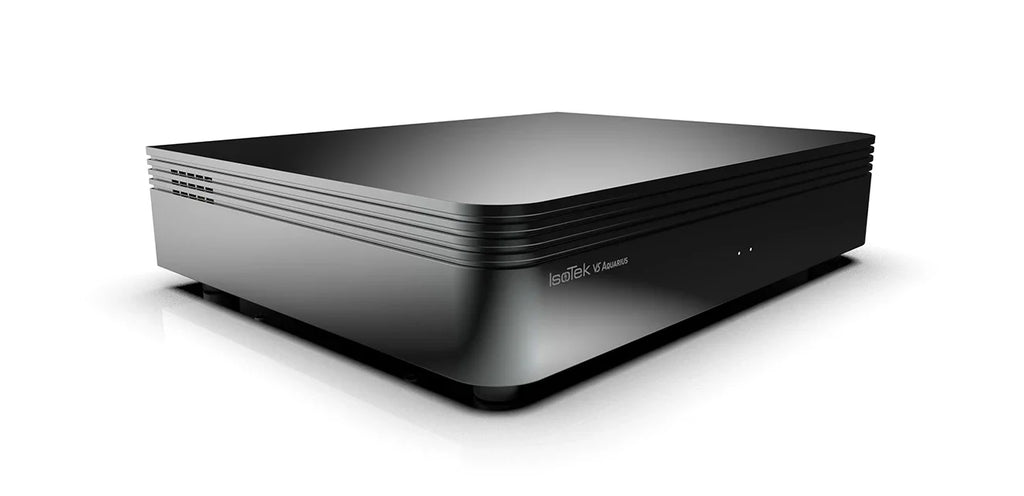

• Finishes: black, silver
