A shallow pair within the wall
CWM362 is a two-way in-wall speaker with a modest rectangular opening.

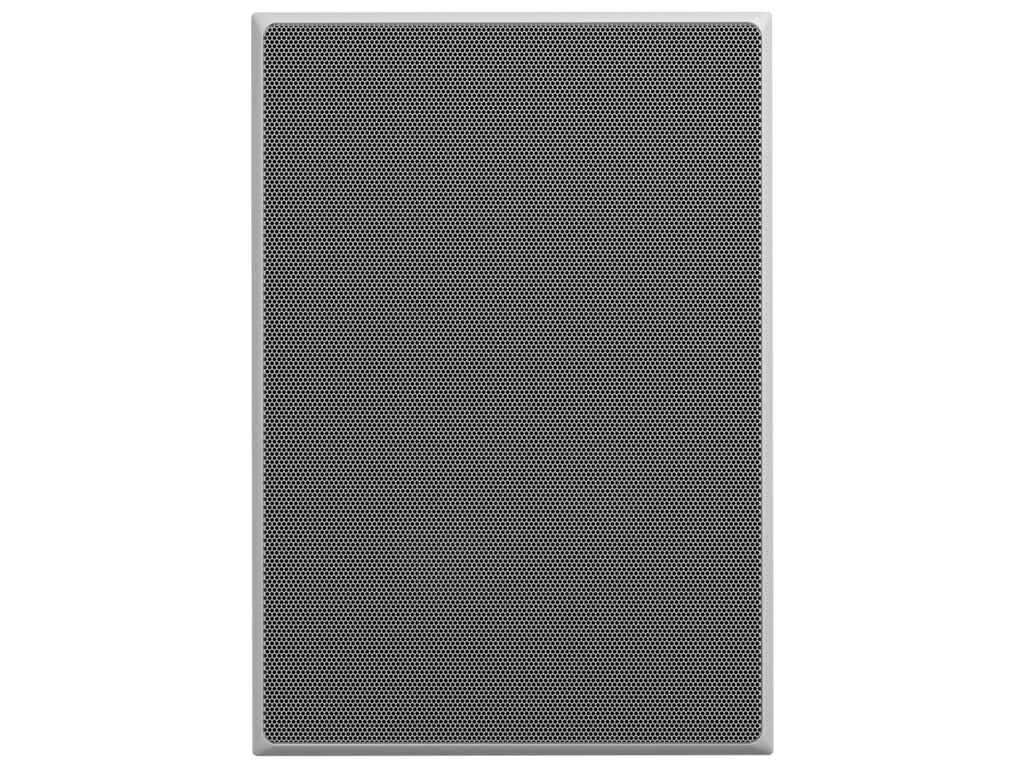

The Bowers & Wilkins CWM362 pair fits two 275 × 181 mm cut-outs. Each frame measures 315 × 221 mm and occupies 76 mm behind the wall, so check studs, wiring and available clearance before cutting. Its narrow border gives the finished surface a discreet appearance.
Key features
- Cut-out 275 × 181 mm; frame 315 × 221 mm; depth 76 mm.
- 160 mm polypropylene bass/midrange and 25 mm soft-dome tweeter.
- 8-ohm impedance (5-ohm minimum); 80 W power handling.
- PMK W6 pre-mount kit and BB 6W back box.
Simple driver layout

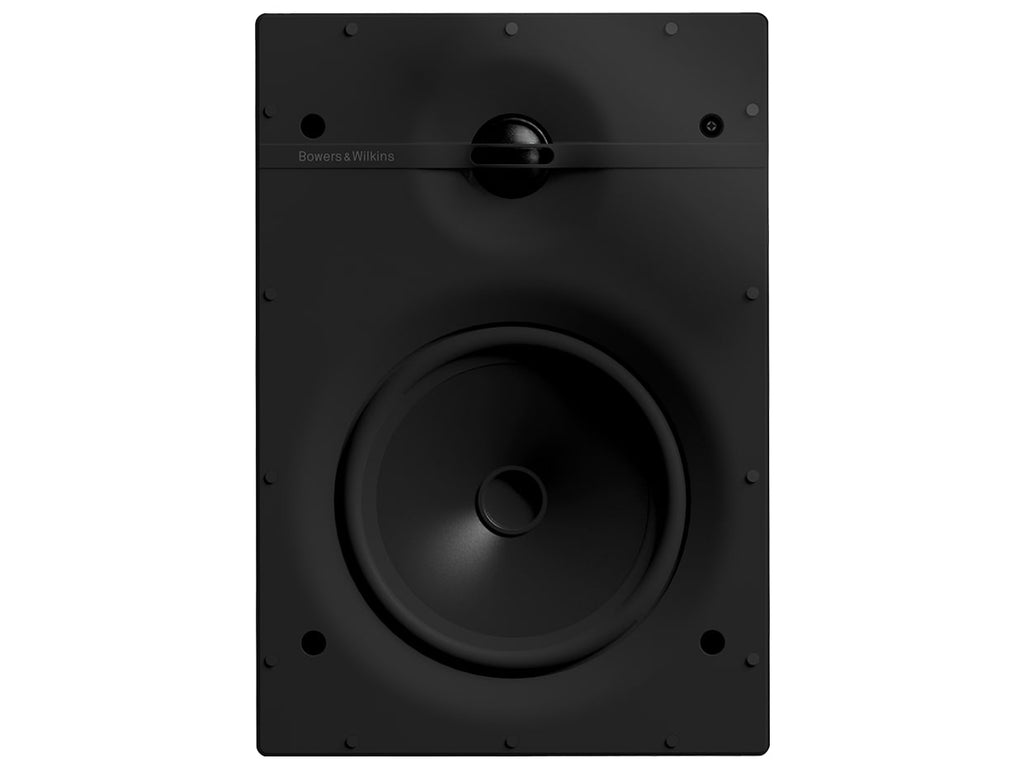

A 160 mm polypropylene bass/midrange driver is paired with a 25 mm soft-dome tweeter. The rectangular arrangement distinguishes it from the CCM362 and CCM382 ceiling models; this layout is designed for wall placement. The -6 dB range spans 50 Hz to 30 kHz and sensitivity is 89 dB.
Preparing both positions
Nominal impedance is 8 ohms, falling to 5 ohms, and power handling is 80 W. PMK W6 is the pre-mount kit and BB 6W the listed back box. Check cut-out dimensions at both positions in the pair and establish mounting height before closing the wall to avoid clashes with other room features.
