Invisible 8" in-wall speaker from the Invisible Series, with 70/100 V transformer

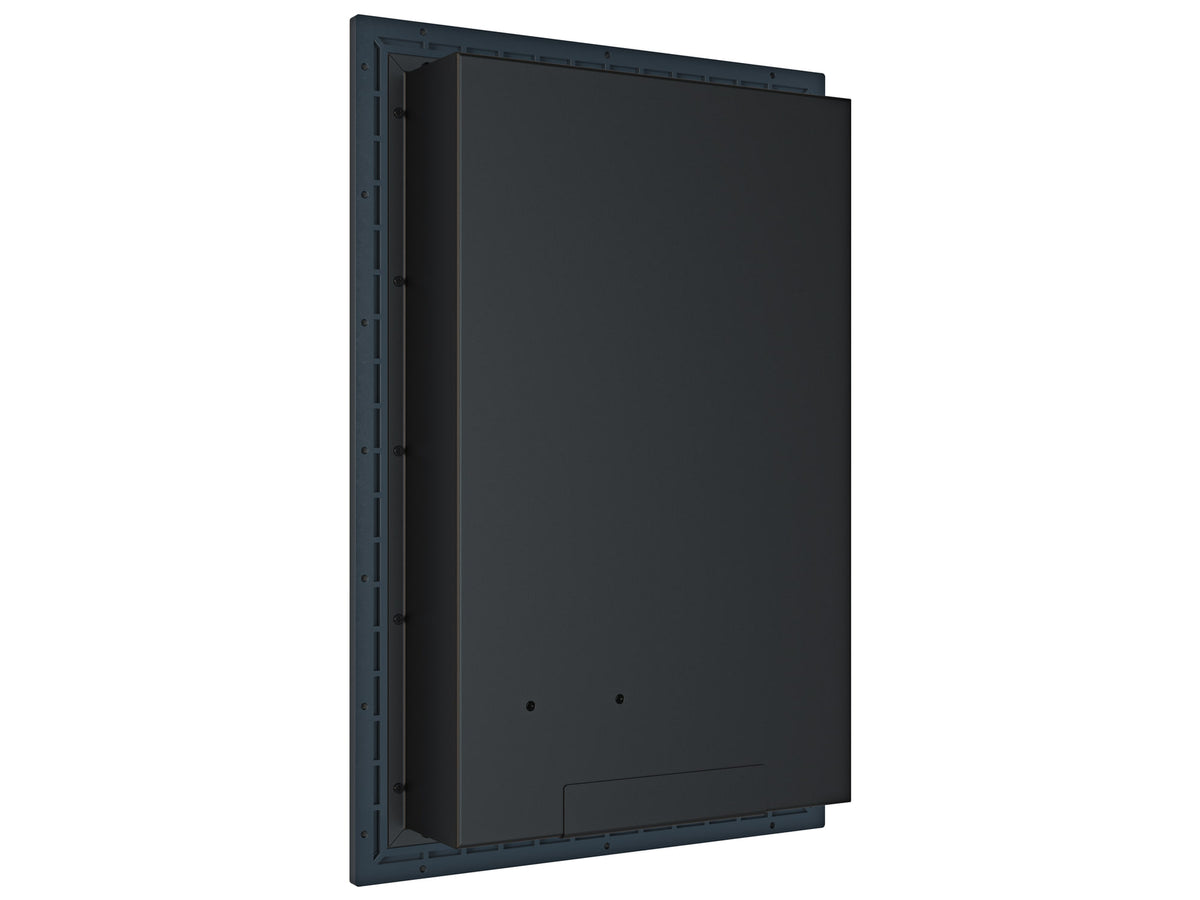

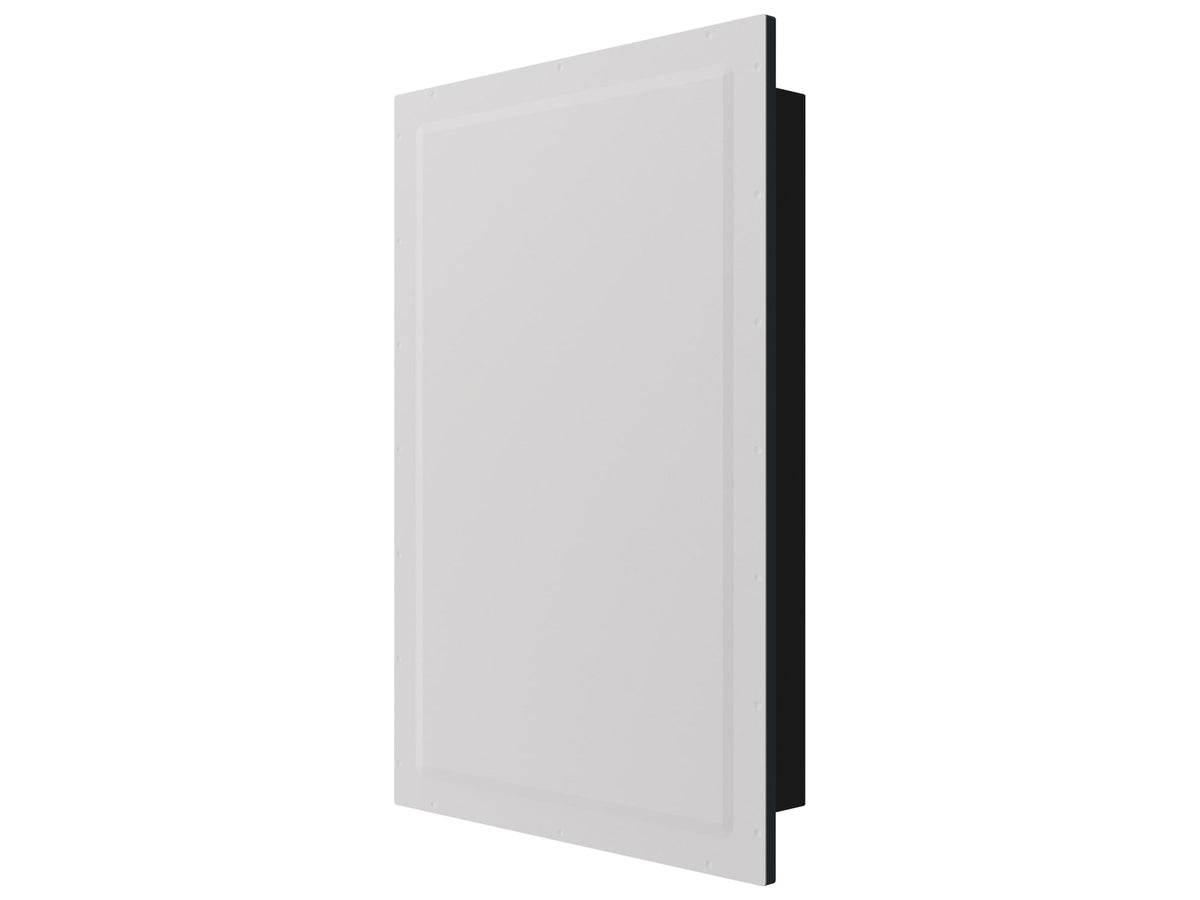

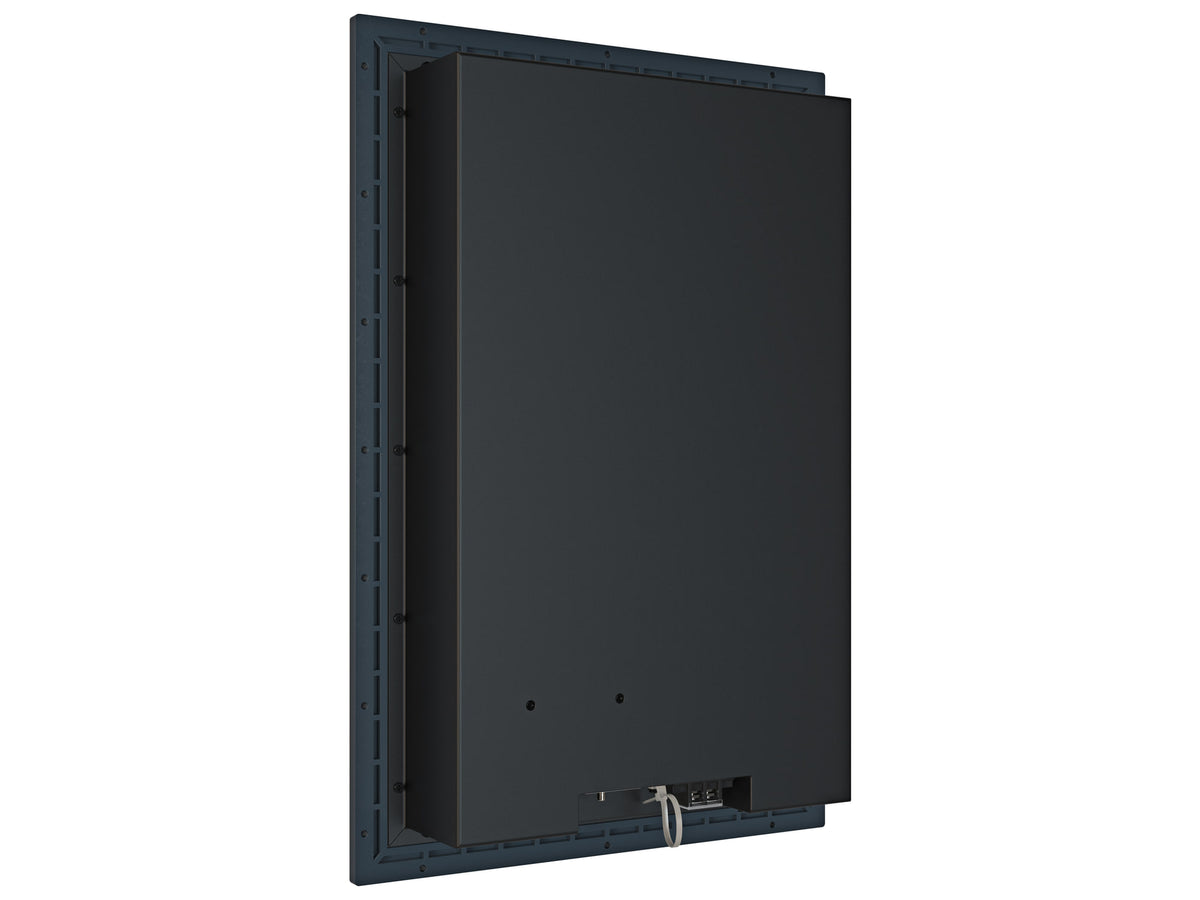

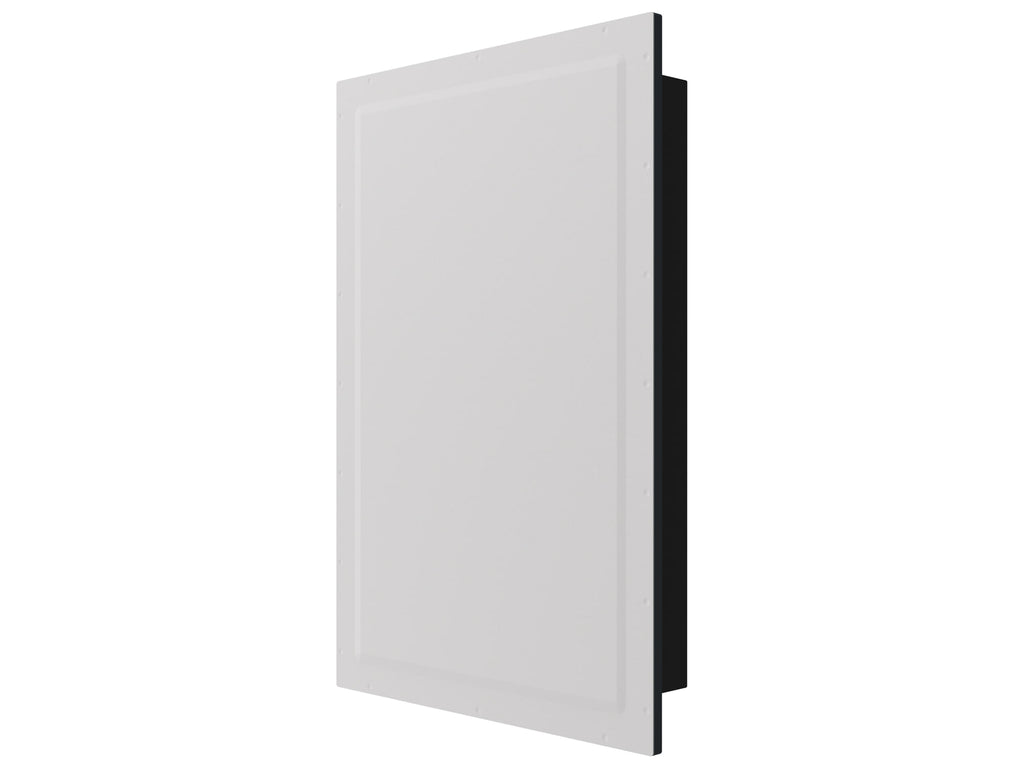

Sonance IS8T is an invisible in-wall speaker: it mounts in the drywall, gets plastered and painted like the rest of the wall and disappears completely. 8" carbon fibre woofer and built-in line transformer for 70/100 V constant-voltage systems. Sold singly.
It belongs to the Invisible Series and uses Motion Flex technology: mids and highs come from the Wave Flex Drive Unit, a bending-wave diaphragm with a 44 mm voice coil, while the bass comes from the Air Flex Woofer, an air-pulse diaphragm driven by a 203 mm woofer. The two areas of the diaphragm are acoustically isolated and directivity stays constant up to 10 kHz.
Key features
- Frequency response from 40 Hz to 30 kHz (+/- 3 dB)
- Nominal impedance 4 ohms, power handling 160 W RMS
- Sensitivity 86 dB (2.83 V at 1 m), 170° hemispherical dispersion up to 10 kHz

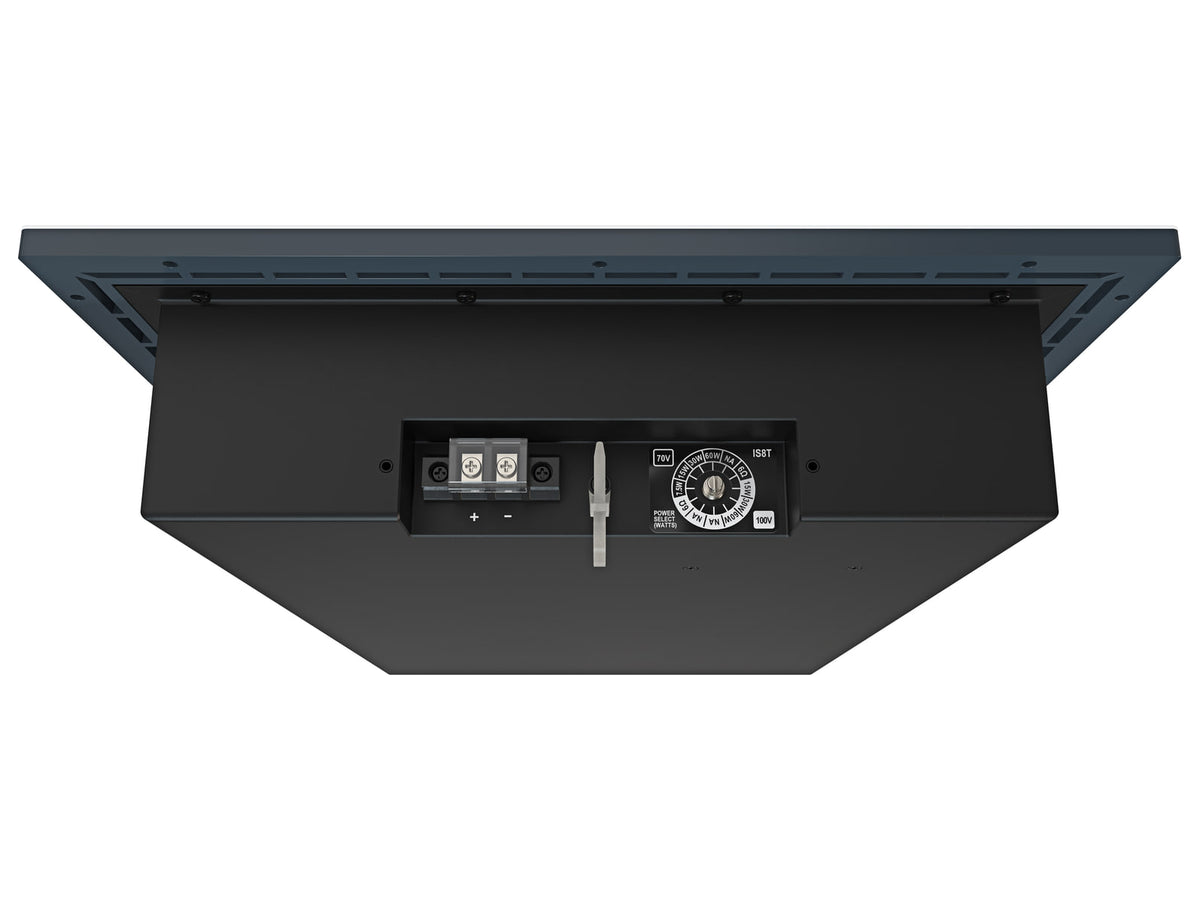

- 60 W Sonance Laminated Core transformer with 60, 30 and 15 W taps (7.5 W at 70 V) and 4 ohm bypass
- Two self-resetting overload protections

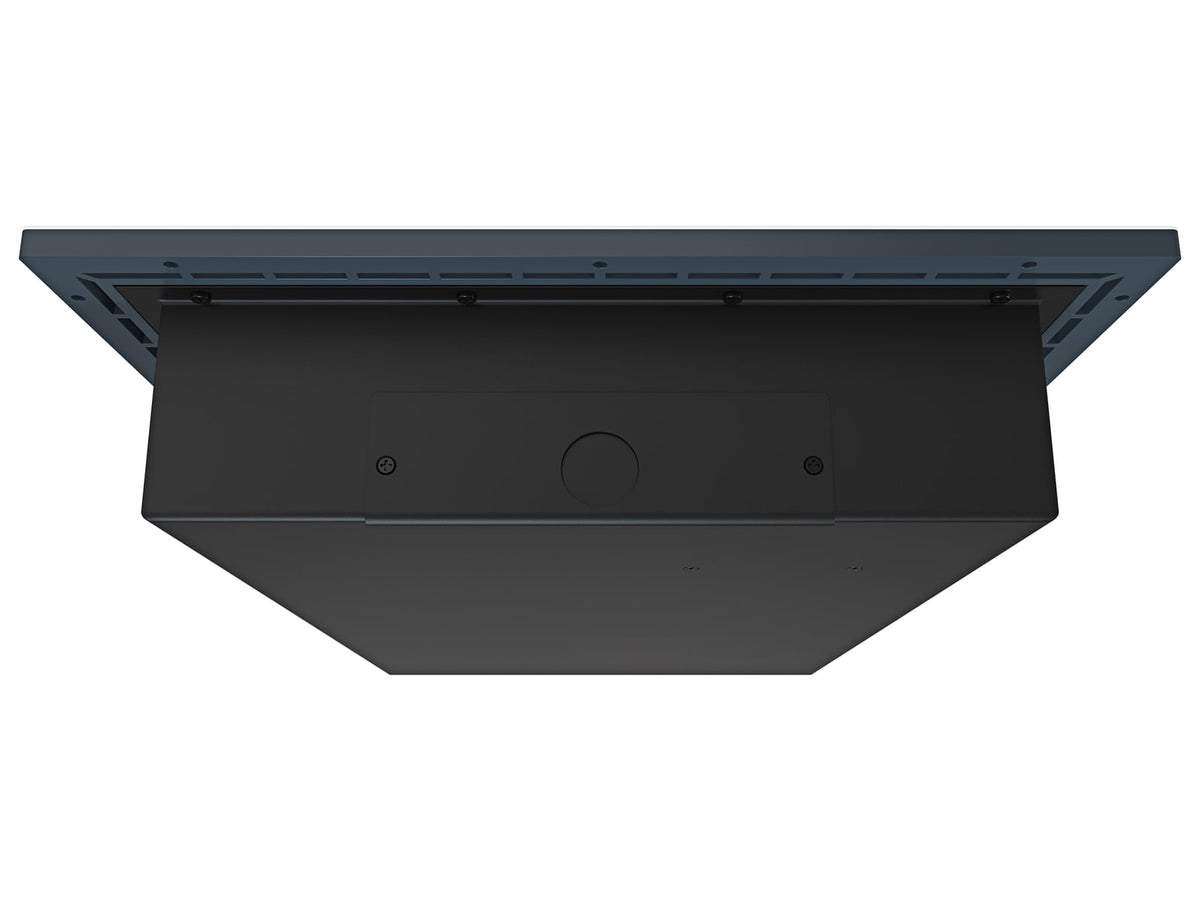

- Screw terminals with strain relief
- UL 2043 and UL 1480 certifications
Installation
It measures 409 x 613 x 98 mm (width by height by depth) and needs 86 mm of mounting depth. It is fixed in the drywall with the screws on the frame; plaster and paint go over the diaphragm, as on the rest of the wall. The medium Space Saver spacer (part 93493) and the DG-1 depth gauge (part 93491) are optional.
Unit of sale
The price refers to a single speaker. Weight 11.45 kg.
