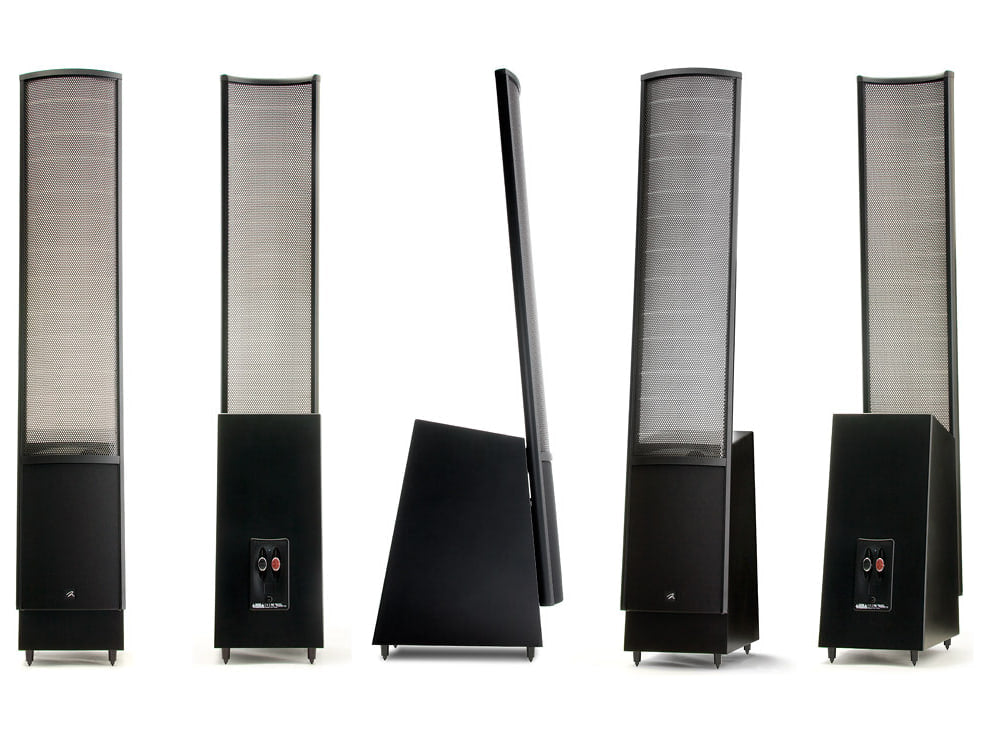

3-way electrostatic/hybrid floorstanding speaker, floorstanding bass reflex, 203mm treated paper/fiber cone woofer, 860x220mm CLS XStat™ controlled dispersion curvilinear electrostatic ribbon midrange/tweeter. Power 20-300W. Efficiency 91dB . Impedance 6 ohms . Vojtko™ air-wired crossover. ETCTM decoupling tips supplied.
OVERVIEW:
- Frequency Response: 42-22,000Hz ±3dB
- Recommended amplifier power: 20-300 watts per channel
- Horizontal dispersion: 30°
- Vertical dispersion: 71 cm line source
- Sensitivity: 91dB / 2.83 volts / meter
- Impedance: 6 Ohms, 1.6 @ 20kHz Compatible with amplifiers with 4, 6 or 8 Ohms
- Crossover Frequency: 500Hz
- High Frequency Transducer: XStat ™ CLS ™ electrostatic transducer. Panel dimensions: 86x22cm. Radiant area: 1,892 cm²
- Low Frequency Transducer: 8" high excursion, high rigidity paper cone with extended throw drive assembly, non-resonant asymmetrical chamber format, bass reflex
- Components: Custom wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors and low density iron electrolytic capacitors
- Inputs: Push style with banana jacks
- Weight: 16.1kg
- Dimensions: 132.3x22.9x41.4cm
