JBL B-6IW

JBL B-6IW: rectangular 2-way in-wall speaker with a 165 mm woofer

The B-6IW is the rectangular built-in speaker of the B-Series, the JBL line for ceilings and walls conceived to merge with the furnishings and spread sound over a wide angle across the home. It is supplied as a single unit.

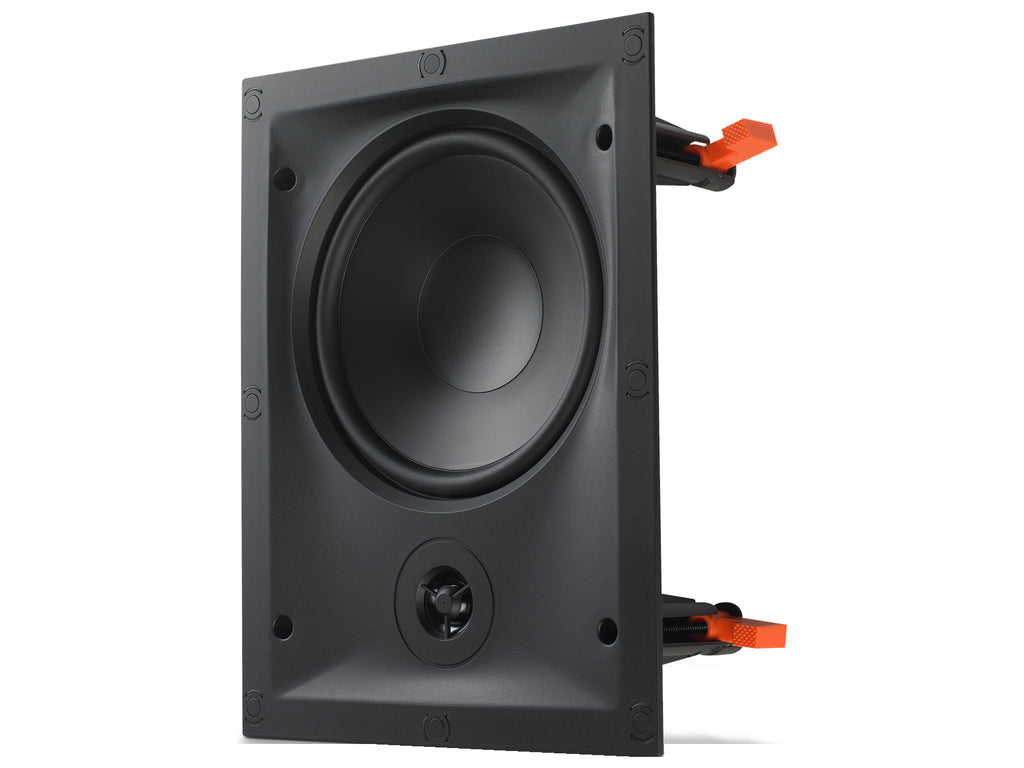

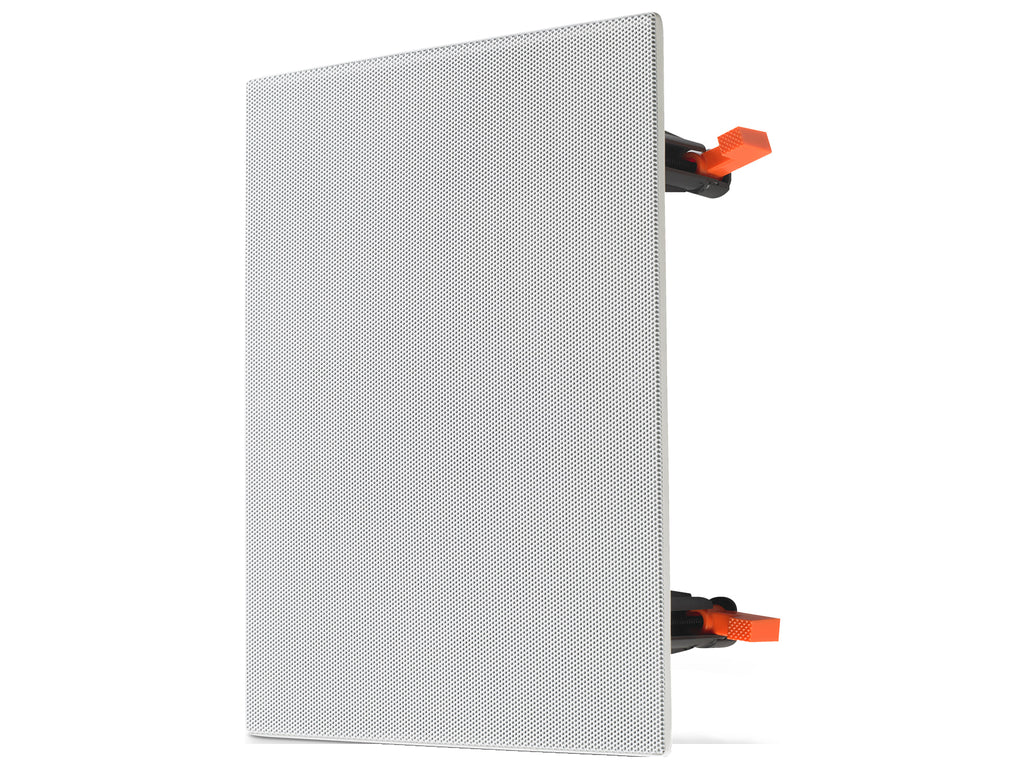

It is a two-way design with a 13 mm polymer-dome tweeter and a 165 mm woofer with a poly cone. The frameless grille and the frame, both white, can be painted; fitting is simple and relies on "dog-leg" clamps.

• Nominal impedance: 4 ohms
• Power handling: 35 W RMS, 150 W peak
• Frequency response 50 Hz - 20 kHz, sensitivity 91 dB
• Wall opening: 246 x 182 mm; mounting depth: 84 mm
• Footprint with grille fitted: 213 x 277 mm
