JBL Studio 6 8IW: in-wall 2-way loudspeaker with a 203 mm woofer
The Studio 6 8IW is a rectangular loudspeaker to be recessed into the wall, with one large-diameter woofer. It is sold individually. JBL offers it for the front, side and rear channels of a system that calls for fuller bass.

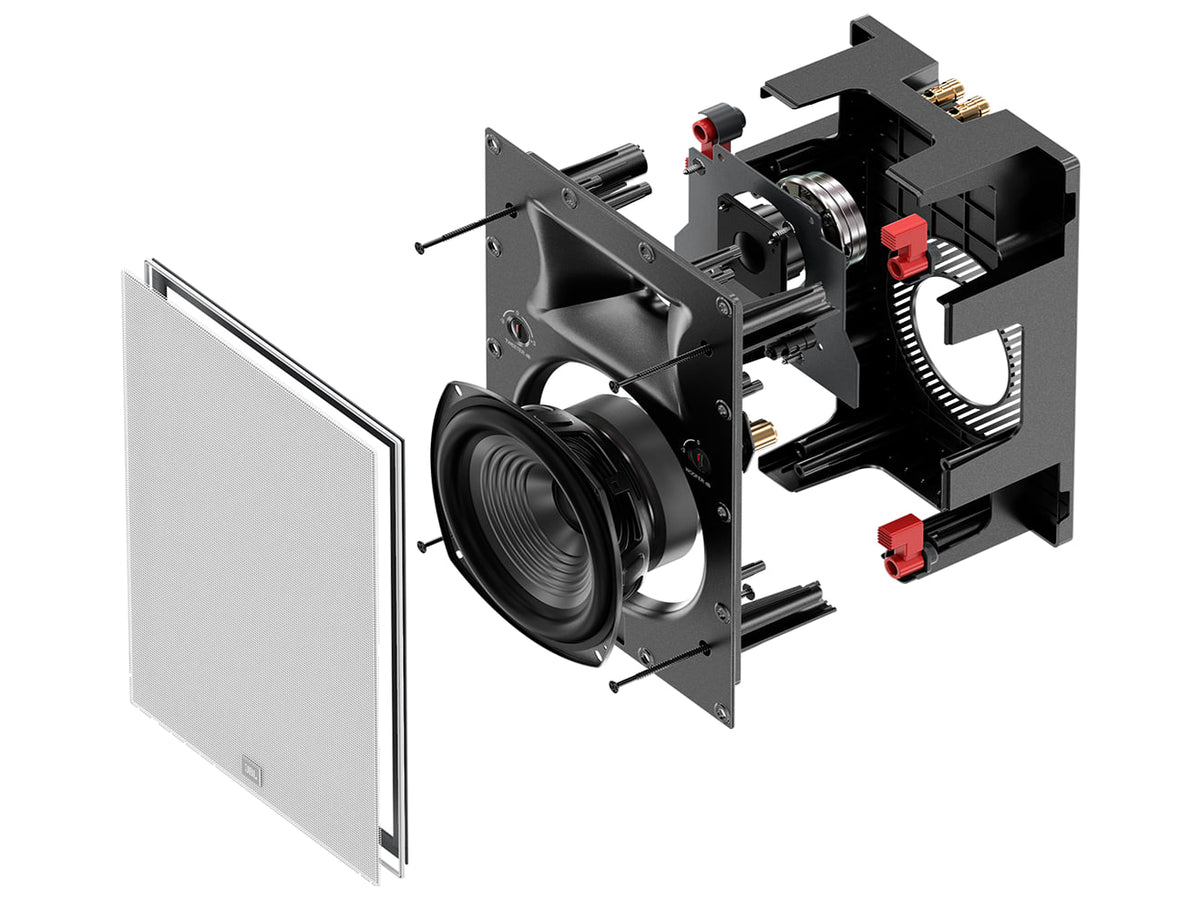

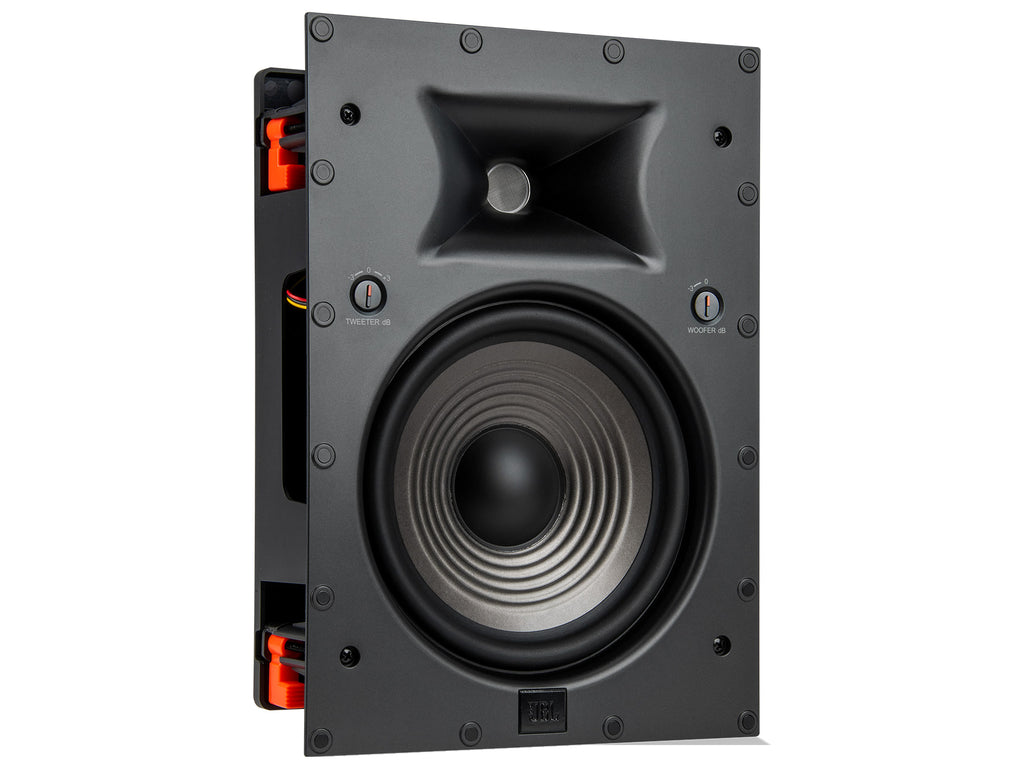

The 203 mm woofer has a Polyplas cone; the treble is reproduced by a 25 mm compression driver with an HDI (High-Definition Imaging) waveguide. The crossover, set at 2.5 kHz, uses inductors with an air core and mylar capacitors. Two adjustments adapt the response to the position: the treble level and a bass compensation for nearby surfaces.
Key features
- In-wall two-way with one 203 mm Polyplas woofer
- 25 mm compression driver and HDI waveguide
- Response from 43 Hz to 20 kHz
- Sensitivity 93 dB (2.83 V at 1 m), nominal impedance 6 ohms
- Power handling of 60 W RMS, 250 W dynamic
- Suggested amplifier between 50 W and 80 W
Installation

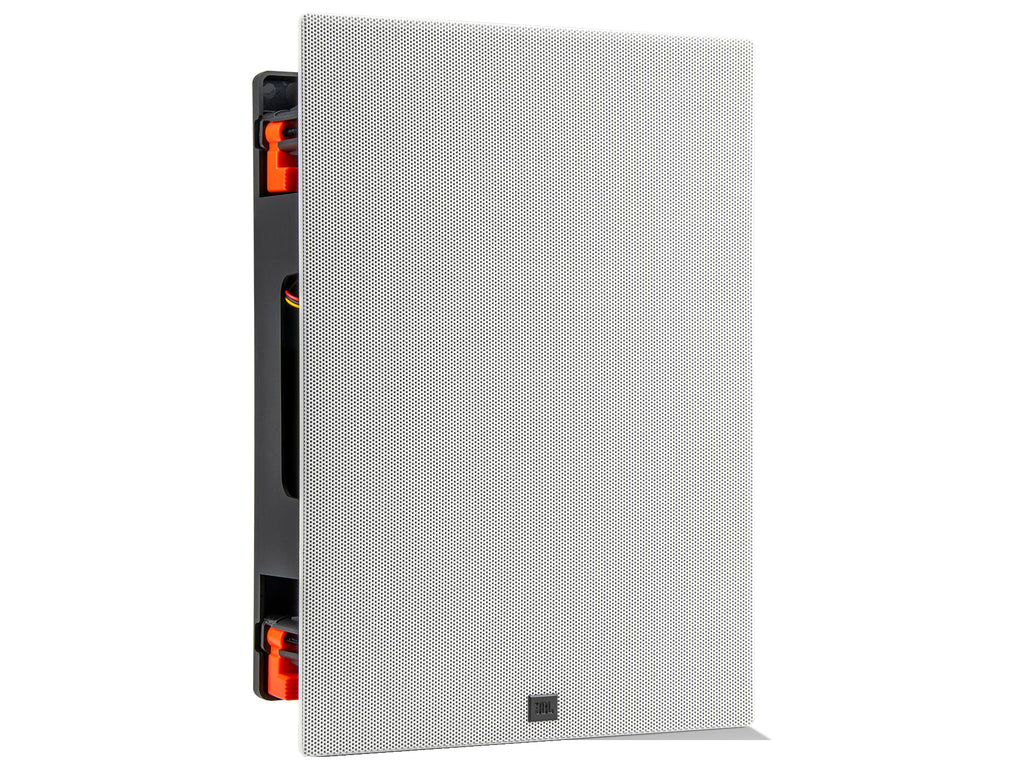

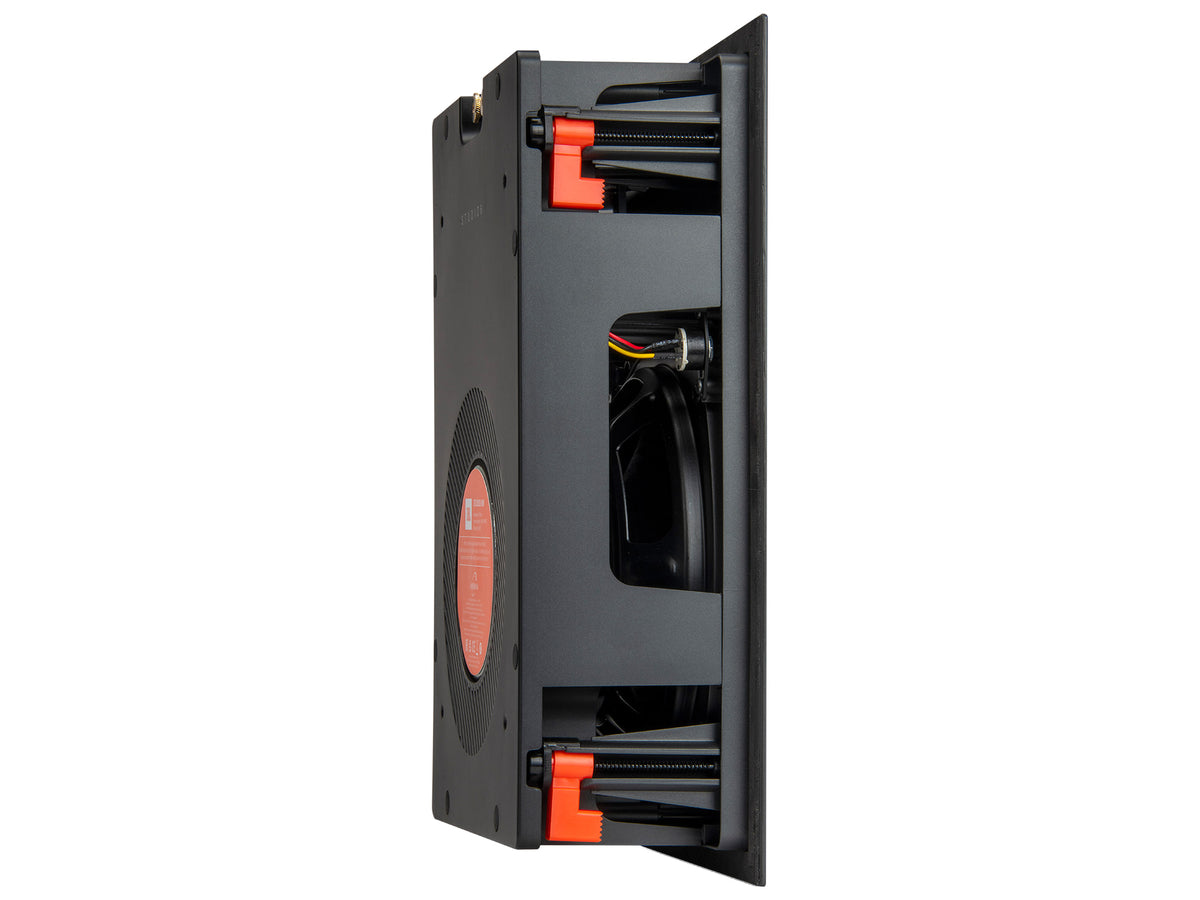

Fixing relies on the Dog Leg system, conceived to make mounting simple and fast. The opening to cut is 221 x 318 mm (height x width) and 95 mm of usable depth is needed. The grille, which measures 251 x 349 mm, is metal, has no bezel and attaches magnetically, sitting level with the surface.
Finishes
Grille and frame are white and can be painted in the colour of the wall. Among the in-wall models of the range it is the only one with a single 203 mm woofer: the Studio 6 88LCR fits two.
