Deep Blue 12: 12-inch sealed active subwoofer

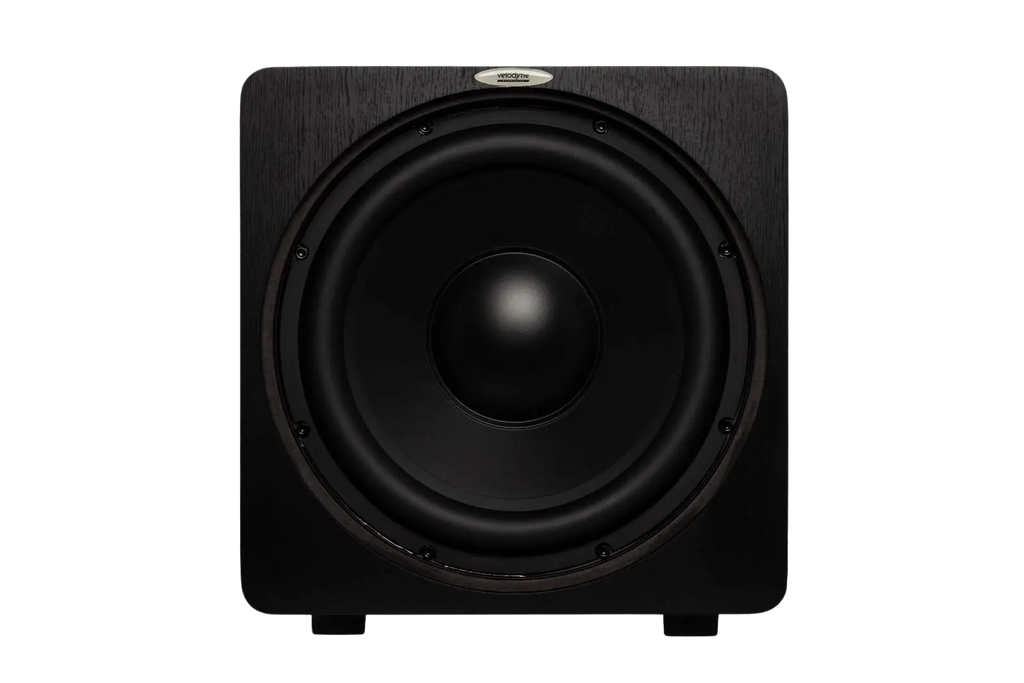

A sealed active subwoofer from the Deep Blue series, with a 12" long-excursion front-firing driver and a reinforced polypropylene cone. The cabinet is MDF, with a 52 mm thick front baffle to keep vibration and distortion down.
Amplification and connections

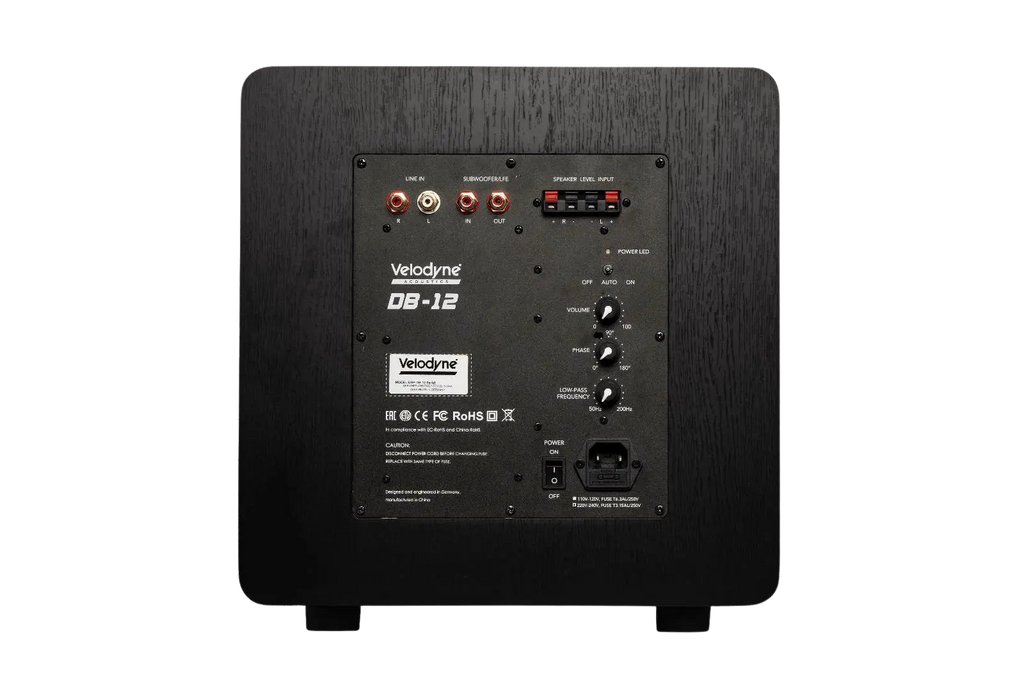

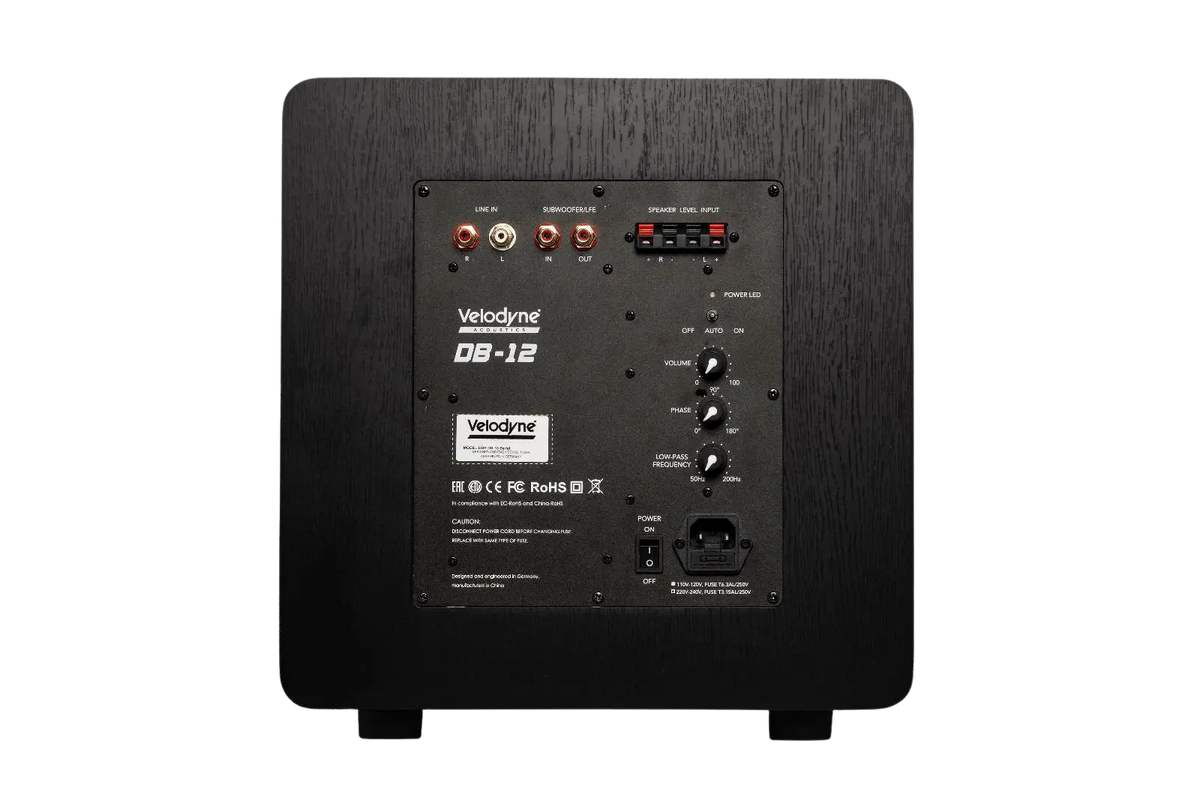

The amplifier is class AB; the four-layer voice coil works with a dual ferrite magnet. Level, crossover frequency (50 to 180 Hz) and phase (0 to 180°) can be adjusted to suit the room and the speakers. Stereo RCA, LFE and high-level inputs; LFE/RCA output for connecting a second subwoofer.
Connecting it to the system
It connects to the subwoofer (LFE) output of a home cinema receiver or, in a stereo system, to the line outputs of the preamplifier or to the speaker terminals through the high-level input. With automatic power-on it wakes up by itself when a signal arrives and goes back to standby when the music stops.
- 12" woofer, 350 W RMS amplifier (850 W dynamic)
- Frequency response: 26–140 Hz at ±3 dB, 15–250 Hz overall
- Dimensions: 35 × 37 × 38.8 cm (W × H × D), weight 13 kg
- Finish: black vinyl
