JBL Studio 6 Theater: in-wall loudspeaker with four 133 mm woofers
The Studio 6 Theater is the longest and narrowest in-wall loudspeaker of the Studio 6 range, built for the front stage of a home theater room. It is sold individually and is used as the left, centre or right channel.

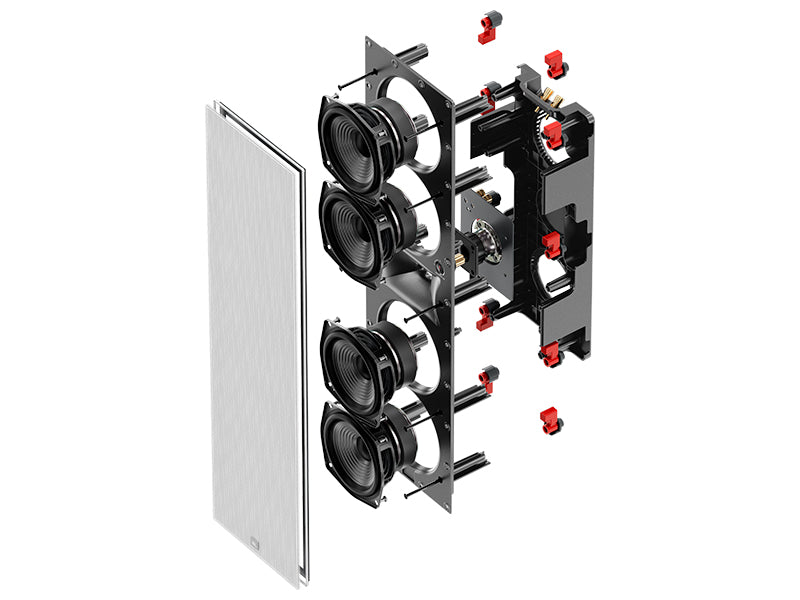

The 2-way layout lines up four 133 mm Polyplas woofers around a 25 mm compression driver with an HDI (High-Definition Imaging) waveguide. The crossover point is 2.5 kHz, with a filter that adopts air-core inductors and mylar capacitors. The level of the high frequencies is adjustable and there is a bass compensation for the effect of boundary surfaces.
Key features
- Four 133 mm Polyplas woofers in a 2-way design
- 25 mm compression driver set into the HDI waveguide
- Range from 65 Hz to 20 kHz
- 96 dB sensitivity (2.83 V at 1 m), nominal impedance 6 ohms
- Power handled: 100 W RMS, 400 W dynamic
- Suggested amplifiers: from 50 W to 150 W
Installation
The required opening is 157 x 642 mm (height x width), the lowest among the in-wall models of the range, with a mounting depth of 95 mm. The grille measures 188 x 674 mm. The loudspeaker locks in place with the Dog Leg system; the metal grille, bezel-free and magnetically held, stays level with the wall.
Finishes
White paintable finish, grille included. It has the same sensitivity as the Studio 6 88LCR, 96 dB, but with smaller woofers the response starts at 65 Hz rather than 47 Hz and RMS power is 100 W.
