Description
High current power conditioner for power amplifiers, mono amplifiers and reference audio-video systems
Ultra-high current power supply for power electronics

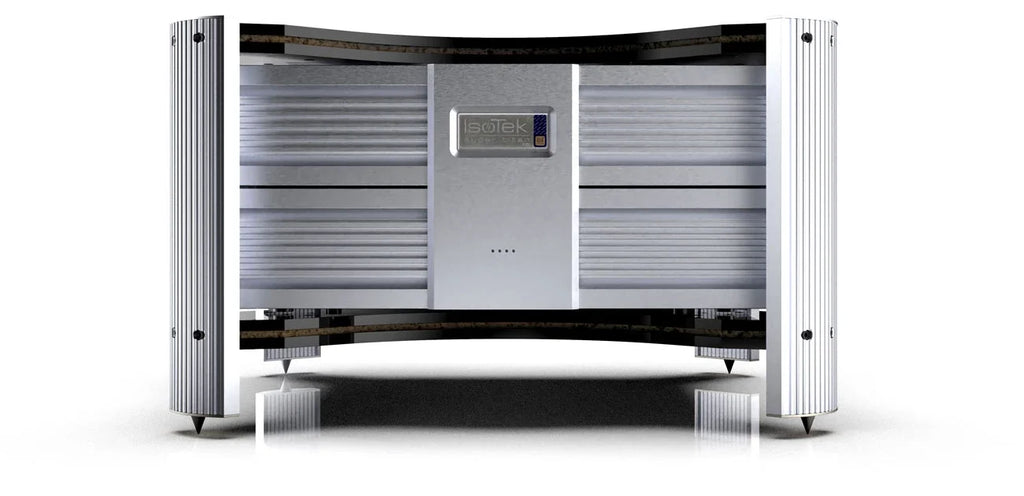

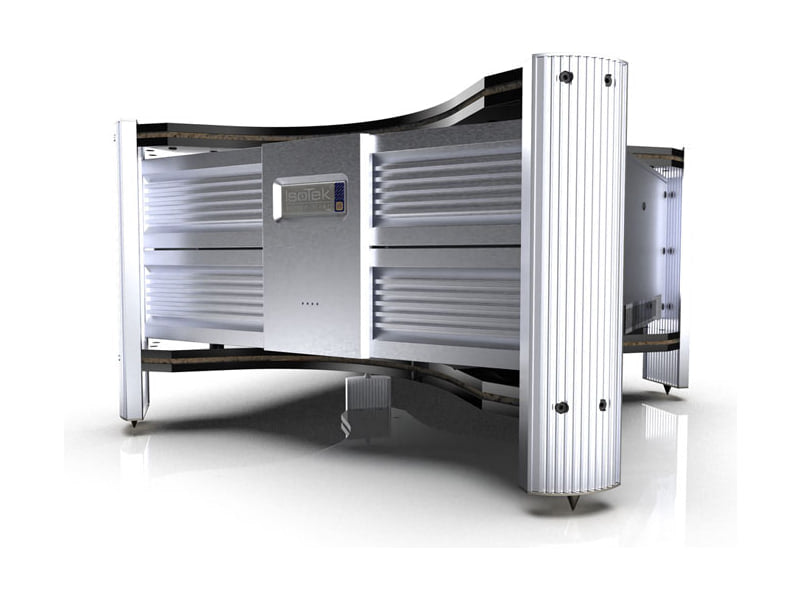

The IsoTek EVO3 Super Titan is a top-of-the-line power conditioner designed to power high-power components such as power amplifiers, integrated amplifiers , monoblocks , active speakers , and subwoofers . It is a solution designed for very high-end hi-fi and home theater systems, where clean current is needed but also capable of supporting significant dynamic demands without compromising performance. IsoTek positions it as one of its reference models for high-current applications.
Four independent networks and Direct-Coupled circuit
The design integrates four independent high-current outputs and uses the proprietary Direct-Coupled circuit, combined with four seven-stage filter networks in series-parallel configuration. This architecture is designed to ensure very low impedance , high current capacity and reduction of mains noise without limiting the dynamics of the connected amplifiers. IsoTek also claims an RFI reduction of approximately 85 dB up to 5 Hz and the use of KERP (Kirchoff's Equal Resistance Path) technology, developed to ensure equal resistance and equal power distribution across all outlets.
Available in 20A or 32A versions, with dedicated System Link

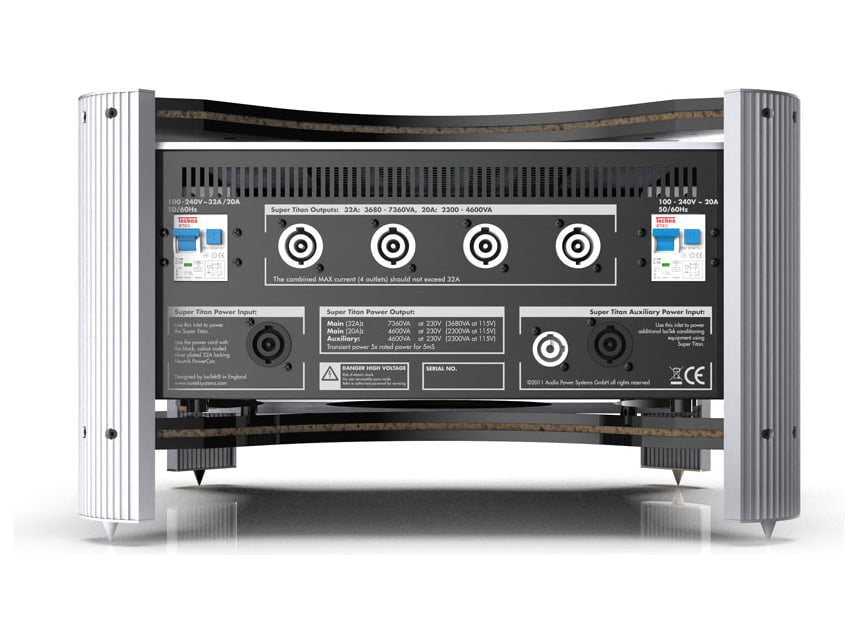

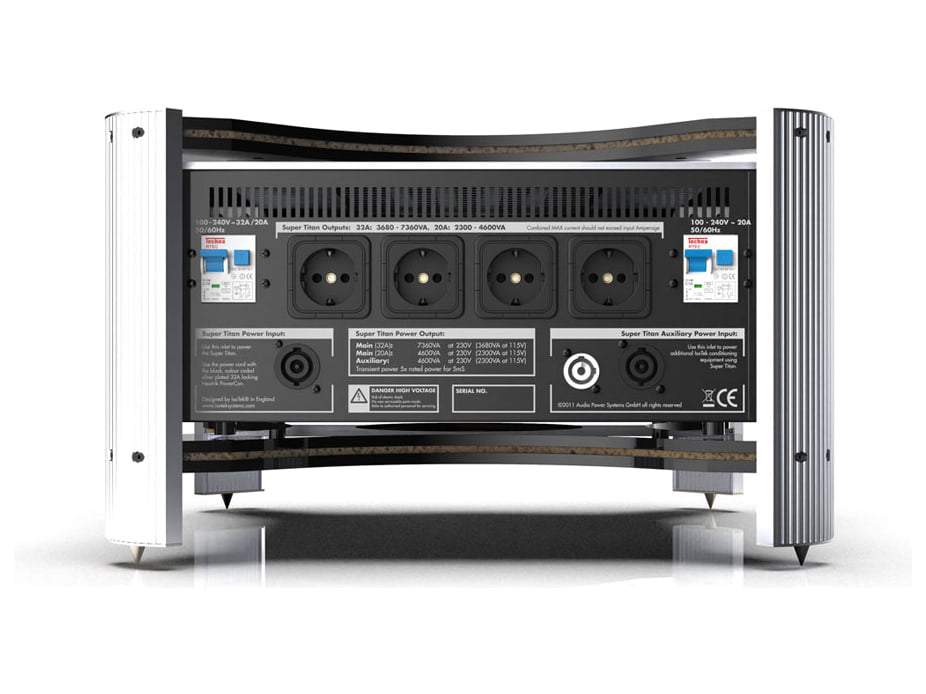

The EVO3 Super Titan is available in two main variants: 20A and 32A . The 20A version can deliver up to 4,600W continuous , while the 32A version goes up to 7,360W continuous , both via the 4 rear outputs dedicated to the most demanding loads. There is also an Auxiliary / System Link connection on the rear panel, useful for adding and powering other compatible IsoTek air conditioners, such as the EVO3 Genesis or EVO3 Super Nova . The dimensions are 500 x 300 x 500mm and the weight is 45kg .
| Typology | High current power conditioner |
| Recommended use | Power amplifiers, integrated amplifiers, mono blocks, active speakers, subwoofers |
| Number of sockets | 4 independent high current outputs |
| Filtering architecture | 4 7-stage networks in series-parallel configuration |
| Proprietary circuit | Direct-Coupled |
| Power distribution technology | KERP (Kirchoff's Equal Resistance Path) |
| RFI reduction | Approximately 85 dB up to 5 Hz |
| Available version | 20A |
| Continuous power version 20A | Up to 4,600 W |
| Available version | 32A |
| Continuous power version 32A | Up to 7,360 W |
| Maximum continuous current | 20A or 32A depending on the version |
| Auxiliary connection | System Link / Auxiliary |
| Network input | Depending on the version and market |
| Dimensions (W x H x D) | 500 x 300 x 500 mm |
| Weight | 45 kg |
