Platinum series HDBaseT CSC transmitter with ARC, up to 150 m

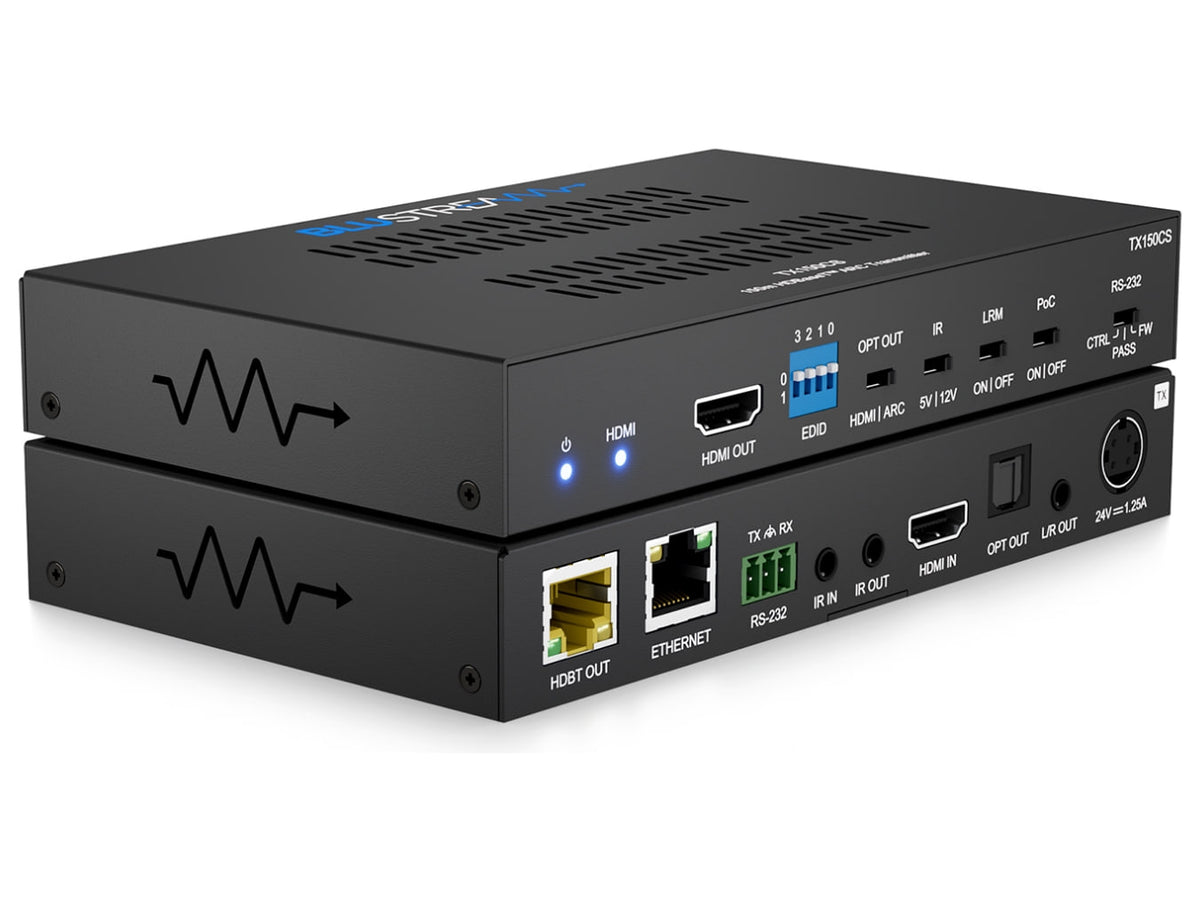

The TX-150CS is an HDBaseT transmitter from the Platinum range with colour space conversion (CSC), sending HDMI 2.0 in 4K at 60 Hz with 4:4:4 chroma and HDCP 2.2 along one network cable.
4K at 60 Hz reaches 100 m; in long-reach mode 1080p gets to 150 m. The same cable carries two-way IR, RS-232, Ethernet and PoC power, which can come from the matrix, the transmitter or the receiver. Combined with the RX150CS receiver or the PLA88CS Platinum matrix it provides ARC audio return from the screen, via HDMI or optical, and a two-way 100 Mbps Ethernet link. The HDMI clock is regenerated to reduce HDCP, compatibility and handshake issues, and every known HDMI audio format passes through, including DTS-HD Master Audio, Dolby Atmos and Dolby TrueHD. An HDMI pass-through output allows a local screen to be connected.
Key features
- CSC with 18 Gbps HDMI 2.0 bandwidth and HDR
- 4K at 60 Hz in 4:4:4 up to 100 m, 1080p up to 150 m
- Resolutions from VGA to WUXGA and from 480i to 4K
- ARC audio return with RX150CS or PLA88CS
- Two-way RS-232 and IR, 100 Mbps Ethernet
- PoC from matrix, transmitter or receiver
- HDCP 2.2
Connections
HDMI type A input; HDBaseT output on RJ45 and HDMI pass-through; audio outputs on Toslink and a 3.5 mm stereo minijack; 3-pole Phoenix for RS-232; Ethernet RJ45 port; 3.5 mm minijacks for IR in and out. Power is 24 V 1.25 A with a 4-pin DIN plug: the adapter is not included. Size 164 x 100 x 25 mm.
Box contents
Transmitter, mounting bracket set and quick reference guide.
