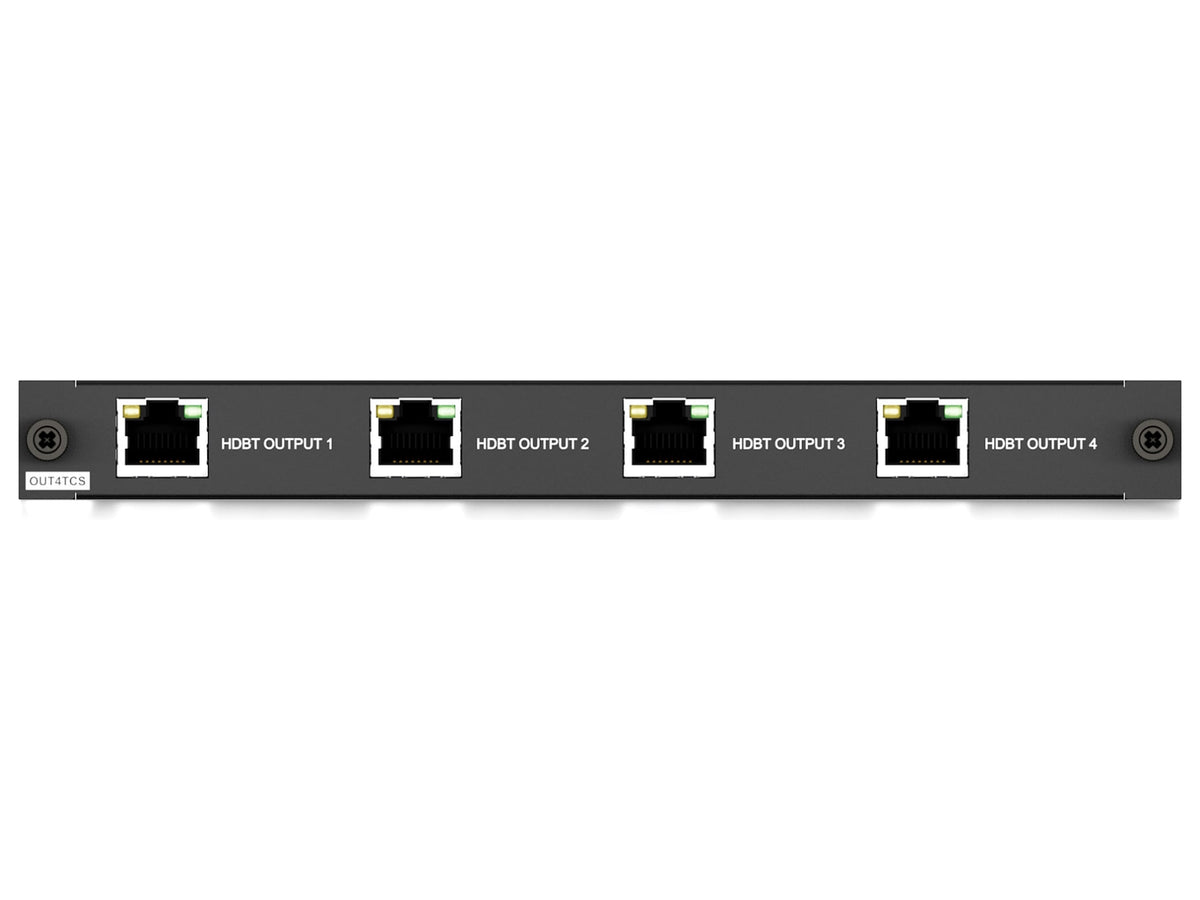

Four-way HDBaseT CSC output card for the Custom Pro matrix
The PRO-OUT4TCS is a module for the Custom Pro modular matrix that adds four independent HDBaseT outputs, each able to carry video at 4K 60Hz in 4:4:4 with HDR up to 70m over one network cable.
Every output powers the remote receiver via PoC and carries video and audio over CAT cable; with 1080p signals the reach grows to 100m. CSC technology lets each output lower the resolution on its own, so a screen that cannot handle full 4K gets a suitable signal while the others keep showing the original resolution. The card slides into the chassis with quick-release fittings and is meant for HEX100CS-RX receivers.
Key features
- Four HDBaseT outputs on RJ45 connectors
- HDMI 2.0 at 18Gbps with HDR and HDCP 2.2
- 4K 60Hz in 4:4:4 up to 70m, 1080p up to 100m
- Per-output conversion to 1080p 60Hz or 4K 60Hz in 4:2:0
- Pass-through of multichannel and object-based surround formats defined by HDMI
- PoC power for Blustream HDBaseT receivers
Installation
To distribute 18Gbps HDMI 2.0 signals, the card must be paired with a Custom Pro input card of the same grade. It measures 182 x 22 x 177mm, or 202 x 22 x 188mm including connectors; shipping weight is 0.5kg.
